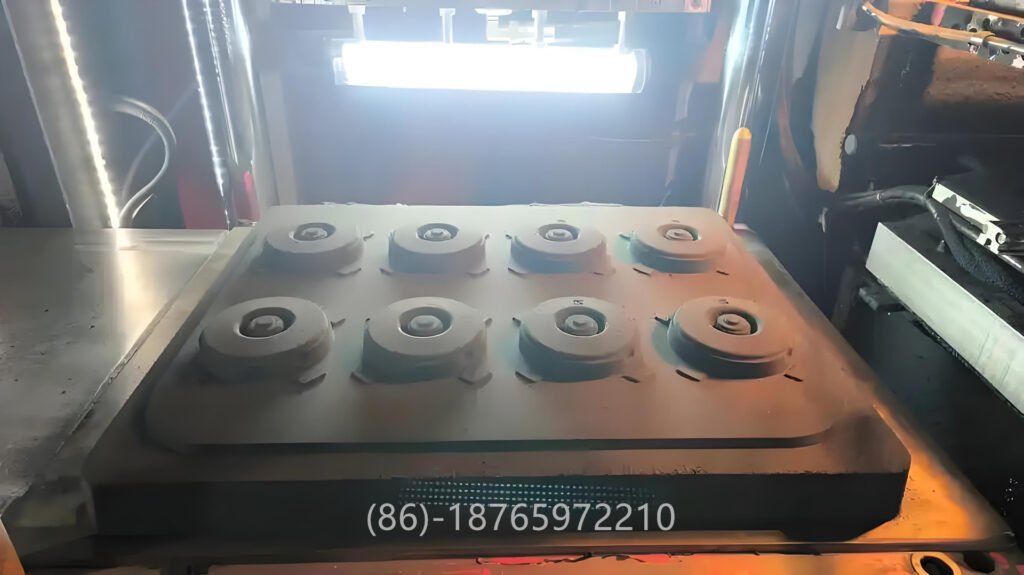

In the ever-evolving landscape of modern foundry operations, the Automatic Flaskless Sand Molding Machine stands out as a key innovation for efficient and high-quality mold production. Designed to streamline the metal casting process, this machine eliminates the need for traditional flasks, reduces labor intensity, and improves overall productivity.
Automatic flaskless sand molding machines represent a cutting-edge advancement in foundry technology, eliminating the need for traditional wooden or metal flasks used in sand casting. These systems utilize advanced robotics, hydraulic/pneumatic mechanisms, and computer-controlled processes to create high-precision molds directly on a conveyor belt or stationary platform.
The Development History of Flaskless Sand Molding Machines
Early Foundations (1950s-1970s)
The concept of flaskless molding emerged in the 1950s as foundries sought to eliminate the time-consuming flask handling process. Early prototypes were developed in Germany and Japan, focusing on vertical molding techniques. The 1960s saw the introduction of the first commercial flaskless machines, though they were limited to small-scale production due to technological constraints in sand compaction and mold stability.
Technological Breakthroughs (1980s-1990s)
The 1980s marked significant advancements with:
- Introduction of high-pressure compaction systems (up to 15-20 bars)
- Development of matchplate technology for better mold alignment
- First fully automated flaskless lines by companies like Disa and Hunter
These innovations enabled production speeds of 60-80 molds/hour, making flaskless machines viable for mass production.
Modern Era (2000s-Present)
The 21st century brought transformative improvements:
- Automation Integration (2000-2010):
- Robotic mold handling systems
- PLC-controlled sequencing
- In-line quality inspection
- Smart Manufacturing (2010-present):
- IoT-enabled process monitoring
- AI-driven sand quality optimization
- Energy recovery systems reducing power consumption by 25%
- Material Science Advances:
- Improved binder systems for flaskless applications
- Specialty sands enabling thinner wall castings
Current Landscape (2020s)
Modern flaskless machines achieve:
- Production rates exceeding 120 molds/hour
- Tolerance capabilities within ±0.3mm
- Fully integrated “lights-out” foundry solutions
What is a Flaskless Sand Molding Machine?
Flaskless molding machine is an advanced molding system that produces sand molds without the use of conventional flasks. Instead, the mold halves are formed and held together with integrated clamping systems, enabling a continuous and automated mold production line. The “flaskless” concept reduces handling time and increases the efficiency of the molding process.
Key Features
Automation & Precision
- Equipped with PLC or CNC control systems, the machine allows for fully automatic operation, minimizing human error.
- High repeatability ensures uniform mold quality and dimensional accuracy.
Space-Saving Design
- Without the need for external flasks, the machine has a compact footprint, making it ideal for small to medium-sized foundries.
- Integrated mold ejection and transfer systems help optimize space and workflow.
High Productivity
- Continuous mold production with short cycle times (often less than 30 seconds per mold).
- Efficient sand filling, squeezing, and compaction mechanisms allow rapid and consistent operation.
Cost Efficiency
- Reduced labor costs due to automation.
- Lower material waste and maintenance costs compared to traditional flask molding systems.
Environmental Benefits
- Improved sand reclamation and reduced sand consumption.
- Cleaner production environment with less dust and noise.
Applications
Automatic flaskless molding machines are widely used in the production of:
- Automotive parts (e.g., engine blocks, brake discs)
- Agricultural machinery components
- Valves and pumps
- General mechanical castings
Why Choose Automatic Flaskless Sand Molding Machines?
In modern foundry production, efficiency, precision, and cost-effectiveness are critical factors. Automatic flaskless sand molding machines have emerged as a superior solution compared to traditional flask-based molding methods. Below are the key reasons why industries are increasingly adopting this advanced technology.
1. Higher Productivity & Efficiency
Flaskless molding eliminates the need for flask handling, significantly reducing cycle times. Automated systems enable continuous, high-speed production with minimal manual intervention, making them ideal for mass production.
2. Cost Savings
Since no flasks are required, companies save on material and maintenance costs. Additionally, reduced labor dependency lowers operational expenses while improving output consistency.
3. Improved Casting Quality
The flaskless process ensures uniform compaction and precise sand distribution, reducing defects like porosity and misruns. This results in higher-quality castings with better surface finishes.
4. Space & Energy Efficiency
Without bulky flasks, the machines occupy less floor space. Moreover, optimized sand usage and lower energy consumption contribute to sustainable manufacturing practices.
5. Flexibility & Automation Integration
These machines support quick mold changes and can be integrated with robotic systems for seamless handling, further enhancing precision and reducing human error.
Automatic flaskless sand molding machines offer a compelling combination of speed, quality, and cost-efficiency, making them indispensable for competitive foundries. By adopting this technology, manufacturers can achieve higher throughput, superior product consistency, and long-term operational savings.
How Automatic Flaskless Sand Molding Machines Improve Production Efficiency
In the competitive foundry industry, maximizing production efficiency is crucial for meeting demand while maintaining cost-effectiveness. Automatic flaskless sand molding machines have revolutionized casting processes by eliminating traditional flask constraints, enabling faster cycles, higher precision, and reduced operational costs.
Elimination of Flask Handling
- Traditional molding requires time-consuming flask assembly and disassembly. Flaskless systems remove this step, cutting cycle times by up to 50%.
- Automated mold transportation integrates seamlessly with pouring and cooling lines, minimizing downtime.
High-Speed, Continuous Production
- Advanced hydraulics and servo systems enable rapid mold compaction (e.g., 80–120 molds/hour vs. 30–50 with flask methods).
- Simultaneous core-setting and mold-forming further accelerate output.
Labor and Space Optimization
- Reduced manual intervention lowers labor costs by ~30% and mitigates human error.
- Compact designs save floor space by eliminating flask storage areas.
Consistent Quality & Less Waste
- Uniform sand distribution and pressure-controlled compaction reduce defects (e.g., gas holes, sand inclusions) by 15–20%.
- Precise sand recycling systems cut material waste by over 25%.
Smart Automation Integration
- IoT-enabled sensors monitor real-time parameters (e.g., sand density, temperature), enabling predictive maintenance and process adjustments.
- Robotics automate mold handling, pouring, and finishing for end-to-end efficiency.
Conclusion
Automatic flaskless sand molding machines are transforming traditional foundries into agile, eco-friendly production hubs. As industries demand higher precision and lower costs, these systems will remain pivotal in advancing manufacturing competitiveness.
