Resin sand mixing is a vital process in no-bake and cold box core making systems used in modern foundries. Unlike green sand systems that rely on moisture and clay, resin sand utilizes chemical binders (such as phenolic urethane, furan, or epoxy resins) to bond the sand particles. The effectiveness of the resin sand molding process depends heavily on how accurately and consistently the sand is mixed with resin and hardener. Understanding the basic principles of resin sand mixing ensures stable mold quality and efficient casting operations.
What is Resin Sand Mixing?
Resin sand mixing is a key process in modern foundry operations, especially in no-bake and cold box molding systems. It involves blending silica sand with chemical binders—typically resin and a hardener—to produce a high-strength molding material. This mixture is used to form molds and cores for metal casting, offering superior dimensional accuracy, surface finish, and mold stability compared to traditional green sand methods.
Resin Sand Mixing Process
In the resin sand mixing process, the sand is first fed into a mixer. Then, precise amounts of resin and hardener are added. The mixer rapidly and thoroughly blends the materials to ensure each sand grain is coated evenly. Because the resin begins to cure once mixed with the hardener, the process must be fast and efficient, typically completed in 10–30 seconds.
Types of Resin Sand Mixers
There are several types of resin sand mixers used in foundries:
- Batch Mixers: Mix one batch at a time, ideal for smaller operations.
- Continuous Mixers: Deliver a constant flow of mixed sand, suitable for high-production environments.
- Single-Arm or Double-Arm Mixers: Provide efficient blending with different configurations for various production needs.
Applications
Resin sand is commonly used in the production of:
- Large castings
- Complex-shaped cores
- Precision molds for ferrous and non-ferrous metals
- Moldings that require superior surface finish and dimensional accuracy
This method is especially popular in industries such as automotive, aerospace, heavy machinery, and marine engineering.
Principles of Resin Sand Mixing

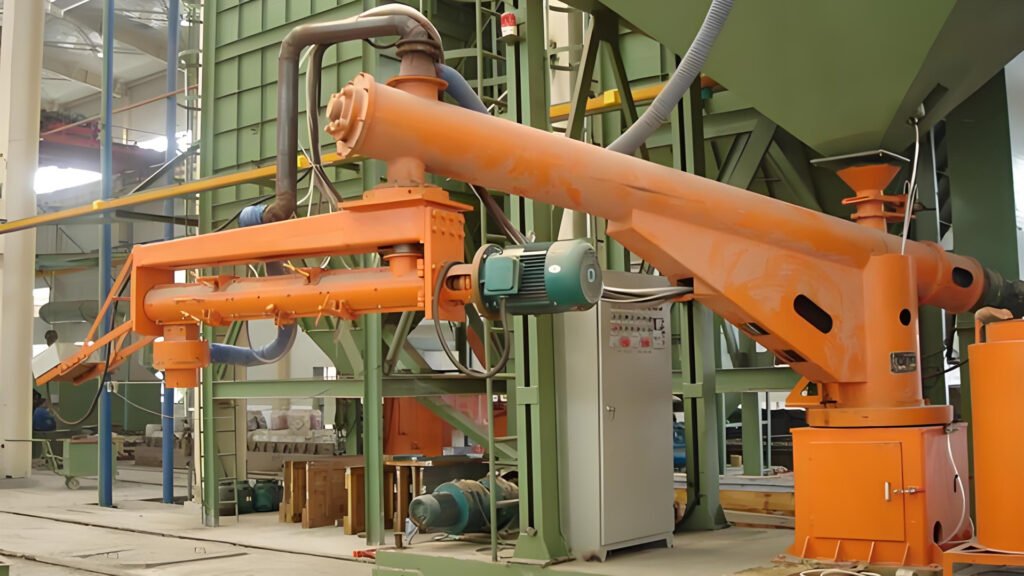

Resin-bonded sand mixing is a critical process in modern foundry operations, particularly for producing high-quality castings with complex geometries. The mixing process directly affects sand mold properties, casting surface finish, and dimensional accuracy.
1. Uniform Binder Distribution
One of the most critical principles of resin sand mixing is ensuring that the resin binder and catalyst (hardener) are evenly and thoroughly distributed throughout the sand. Uneven distribution can result in weak bonding, mold collapse, surface defects, or dimensional inaccuracies. Modern resin sand mixers use high-speed rotating blades or arms to achieve uniform coating of sand grains with the resin system.
2. Precise Binder Ratio Control
Resin and hardener must be added in exact proportions according to the type of binder system used. Overuse of resin can cause gas generation and surface roughness, while insufficient resin will reduce mold strength. Automatic dosing systems and flow meters are commonly used to maintain precise ratio control during the mixing process.
3. Short and Efficient Mixing Cycle
In resin sand systems, especially in no-bake applications, the chemical reaction between the resin and hardener begins as soon as they come into contact. Therefore, the mixing process must be quick and efficient to avoid premature curing within the mixer. Most mixers are designed for continuous operation or rapid batch mixing to minimize curing inside the equipment.
4. Temperature and Humidity Sensitivity
Resin curing is sensitive to ambient temperature and humidity. High temperatures can accelerate curing, reducing working time, while low temperatures may delay curing. Similarly, high humidity can affect resin performance. It’s important to monitor environmental conditions and adjust mixing parameters accordingly to ensure consistent results.
5. Reclaimed Sand Compatibility
To reduce cost and environmental impact, foundries often reuse reclaimed resin sand. However, residual binders, fines, and dust can interfere with the bonding of new resin. Proper sand reclamation and screening must precede mixing, and the mixer should be able to handle a mix of reclaimed and fresh sand effectively.
6. Cleaning and Maintenance
Due to the nature of resin curing, the mixer must be cleaned regularly to avoid buildup and blockage. Cured resin can harden inside the mixer, causing mechanical issues and contamination of future batches. Routine cleaning and inspection are necessary for uninterrupted and high-quality production.
7. Automation and Process Control
Modern resin sand mixers are equipped with automation systems for precise control of mixing time, binder dosing, and sand flow. Real-time monitoring systems help ensure consistent output and reduce human error. Advanced mixers also include features like automatic flushing, temperature sensors, and digital diagnostics.
Why Resin Sand Mixing Matters for Your Foundry？
In the competitive world of metal casting, quality, efficiency, and consistency are essential to success. One of the most critical steps in the mold-making process is resin sand mixing. Though often overlooked, proper resin sand mixing plays a central role in determining the quality of your molds, the efficiency of your operations, and the overall success of your foundry.
1. Foundation of High-Quality Molds
Resin sand mixing ensures that each grain of sand is uniformly coated with the right amount of binder and catalyst. This uniform coating provides strong, durable molds and cores that maintain their shape during the casting process. Inconsistent or poor mixing can lead to defects like cracks, rough surfaces, gas holes, or mold collapse, increasing your rejection rate and reducing customer satisfaction.
2. Improved Casting Precision and Surface Finish
With properly mixed resin sand, molds have better dimensional stability and smoother surfaces. This results in castings with tighter tolerances and finer finishes, reducing the need for post-processing such as machining or grinding. The result is better product quality and lower overall production costs.
3. Efficient Use of Materials
Accurate resin sand mixing helps you avoid overuse or underuse of expensive binders and catalysts. By maintaining correct binder ratios, you can reduce waste and save on material costs. Efficient mixing also helps extend the usability of reclaimed sand, further improving cost-efficiency and environmental sustainability.
4. Faster Mold Production
In no-bake and cold-box systems, resin curing begins as soon as it is mixed with the catalyst. A reliable and fast mixing process ensures that the sand mixture is ready for molding within seconds, supporting continuous production and reducing cycle times. This is especially important in high-volume or time-sensitive casting operations.
5. Reduced Defects and Rework
Defects caused by poor mixing—such as incomplete curing, gas porosity, or weak mold strength—can result in scrap castings and costly rework. A consistent resin sand mixing system minimizes these risks, improving your yield and helping you deliver higher-quality castings to your customers.
6. Adaptability to Complex Castings
For intricate and large castings, resin sand provides the flexibility needed to create precise molds and cores. High-performance resin sand mixers can handle complex recipes and reclaimed materials, allowing your foundry to produce a wide range of castings without compromising quality.
7. Supports Automation and Quality Control
Modern resin sand mixers come with automation features like digital dosing, real-time monitoring, and automatic cleaning. These features help reduce operator errors, improve consistency, and support data-driven quality control practices in your foundry.
Resin sand mixing is far more than just a preparatory step—it is a core element of successful foundry operations. By investing in high-quality resin sand mixing equipment and following best practices, your foundry can achieve better casting quality, higher efficiency, and reduced operational costs. In today’s competitive market, mastering resin sand mixing is not optional—it’s essential.
Conclusion
The basic principles of resin sand mixing focus on accuracy, uniformity, and efficiency. A well-controlled resin sand mixing process is essential for producing strong, defect-free molds and cores. Foundries that implement best practices in resin mixing benefit from higher productivity, lower rejection rates, and improved casting quality. Selecting the right mixer, maintaining strict process controls, and ensuring proper maintenance are key to maximizing performance in resin sand systems.
