Introduction to Crawler Belt Shot Blasting Machine
The crawler belt shot blasting machine is a specialized piece of surface treatment equipment widely used in foundries, forging shops, and metalworking industries. Designed to clean and strengthen small to medium-sized workpieces, this machine offers a highly efficient solution for removing rust, scale, sand, and other surface contaminants.
What Is a Crawler Belt Shot Blasting Machine?

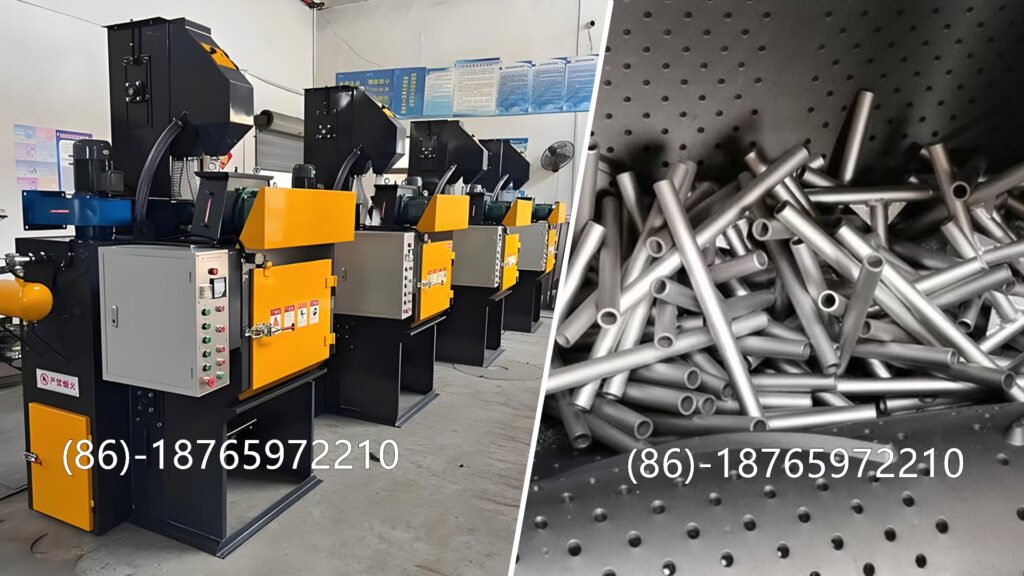

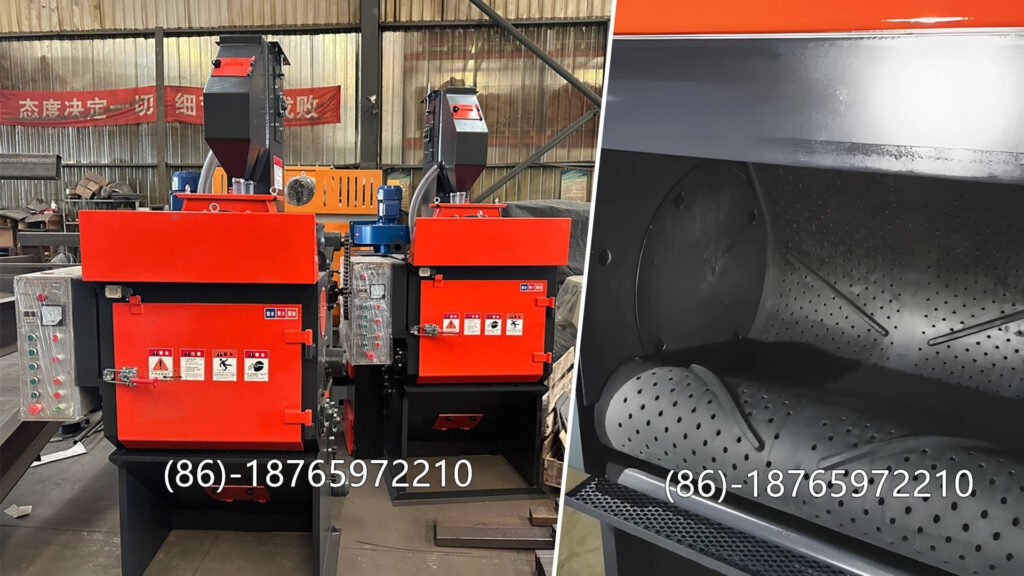

A crawler belt shot blasting machine consists of a sealed blast chamber, one or more blast wheels, a crawler belt system (typically made of wear-resistant rubber or manganese steel), and an abrasive recycling system. During operation, workpieces are loaded into the chamber and placed on the endless crawler belt. As the machine operates, the belt rotates to tumble the parts while high-speed abrasive media is blasted onto the surfaces, achieving complete and uniform cleaning.
Key Features
- Tumbling Action: The rotating crawler belt gently tumbles the parts, ensuring all sides are evenly exposed to the abrasive.
- Batch Processing: Ideal for batch operations, the machine can handle a group of parts in a single cycle.
- Compact Design: These machines are typically compact and easy to install, making them suitable for workshops with limited space.
- Wear-Resistant Components: Critical parts like the blast wheel, belt, and lining are built to resist abrasion, extending the machine’s service life.
- Efficient Media Recovery: An integrated abrasive circulation and dust collection system helps reduce media loss and maintain a clean working environment.
Applications
Crawler belt shot blasting machines are ideal for cleaning:
- Castings and forgings
- Heat-treated components
- Small metal parts and fittings
- Non-fragile workpieces with complex geometries
They are commonly used in:
- Foundries
- Automotive parts production
- Metal fabrication shops
- Hardware manufacturing
Benefits
- Thorough and uniform cleaning
- Improved surface roughness for coating or painting
- Increased fatigue strength of treated parts
- Reduced manual labor and higher productivity
- Cost-effective and easy to maintain
Issues to Consider When Selecting a Crawler Belt Shot Blasting Machine
Crawler belt shot blasting machines are widely used for cleaning, descaling, and surface preparation of small to medium-sized metal components. Their tumbling action and enclosed blasting process make them ideal for rugged parts that can handle impact. However, to maximize performance and efficiency, it’s important to choose the right machine for your specific needs. Below are the key issues to consider when selecting a crawler belt shot blasting machine.
1. Workpiece Type and Size
The nature of the components to be processed plays a major role in machine selection. Key questions include:
- Are the parts small and sturdy enough to handle tumbling?
- Do they have complex shapes that require full abrasive coverage?
- What is the maximum size and weight of individual parts?
Machines come in various drum sizes and weight capacities, so matching the machine to your workpiece specifications is essential.
2. Production Volume
Understanding your daily or hourly production requirements helps determine the necessary drum volume and cycle time. If you process large batches regularly, a model with a higher loading capacity and shorter cycle time will be more suitable.
3. Belt Type and Material
Crawler belts are typically made from rubber or manganese steel:
- Rubber belts are quieter and ideal for lighter parts.
- Manganese steel belts are more durable and suitable for heavy or abrasive parts.
The choice of belt material affects both performance and maintenance needs.
4. Abrasive Type and Recovery System
The efficiency of shot blasting also depends on the abrasive media and how it is handled. Look for machines with:
- Effective separation systems (air wash + magnetic separator)
- Durable blast wheels for consistent performance
- Dust collection systems to maintain a clean working environment
Selecting the right abrasive (steel shot, grit, etc.) based on surface requirements is equally important.
5. Maintenance and Accessibility
Frequent maintenance can lead to downtime if the machine is poorly designed. Choose a model with:
- Easy access to key components like blast wheels, filters, and belts
- Wear-resistant linings in high-impact areas
- User-friendly control systems for monitoring and diagnostics
6. Automation and Integration
If your facility runs automated lines or smart manufacturing systems, look for crawler shot blasting machines that support:
- PLC or HMI control
- Integration with upstream/downstream equipment
- Remote monitoring or data logging
Automation can improve consistency, reduce labor, and optimize production flow.
7. Energy Efficiency and Environmental Compliance
Modern shot blasting machines should be energy-efficient and compliant with environmental regulations. Consider:
- Power consumption of the motors and blast wheels
- Dust emissions and filtration capabilities
- Noise levels
Choosing a machine that meets local safety and environmental standards is crucial for long-term operation.
8. After-Sales Service and Spare Parts Availability
Reliable technical support and quick delivery of spare parts are essential for reducing downtime. Select a supplier with:
- Proven track record and customer references
- Local service network or prompt international support
- Readily available wear parts and consumables
Choosing the right crawler belt shot blasting machine involves more than just selecting a model based on price or capacity. It requires a careful evaluation of your workpiece characteristics, production goals, machine design, and long-term maintenance needs. By considering these factors, you can ensure efficient operation, extended machine life, and high-quality surface treatment results.
Why Crawler Belt Shot Blasting Machine Differs from Other Shot Blasting Machines
In the surface treatment and metal cleaning industry, shot blasting machines play a critical role in removing rust, scale, and surface contaminants. Among the many types available, the crawler belt shot blasting machine stands out due to its unique structure and functionality. But how exactly does it differ from other shot blasting machines such as hanger type, roller conveyor, or spinner hanger machines? Let’s explore.
1. Loading Mechanism and Workpiece Handling
The crawler belt shot blasting machine is equipped with a rubber or manganese steel belt forming a drum-like chamber. Workpieces are loaded into this chamber and continuously tumbled during the blasting process. This is ideal for small to medium-sized batch components that can withstand collision.
In contrast, hanger type machines suspend large or delicate parts to avoid impact, while roller conveyor machines are designed for flat, long components like steel plates or profiles. These machines do not tumble parts, making them suitable for different applications.
2. Ideal Workpiece Types
Crawler belt machines are perfect for:
- Small castings and forgings
- Heat-treated parts
- Non-fragile components
Unlike spinner hanger or overhead rail systems, which are designed for larger, more complex shapes or delicate parts, crawler machines emphasize volume and speed for rugged items.
3. Batch Processing vs. Continuous Flow
The crawler belt type operates in batch mode, processing a full load of parts at once. This differs from continuous systems like roller conveyor machines that are better suited for high-volume production lines.
Batch processing offers flexibility and is easier to control for different product sizes and blasting intensities.
4. Tumbling Action for Complete Surface Coverage
The integrated tumbling motion of crawler belt systems ensures that all surfaces of each workpiece are exposed to the abrasive. This creates uniform cleaning and is more effective for parts with complex geometries compared to static or hanging setups.
5. Compact Design and Cost-Effectiveness
Crawler shot blasting machines typically have a more compact footprint and lower initial investment. They are easy to install and maintain, making them ideal for small to medium-sized foundries, forging shops, and metalworking workshops.
In contrast, larger systems like roller conveyor or overhead rail machines require more space and infrastructure.
6. Noise and Safety Considerations
Since the crawler belt machine is fully enclosed and the operation is automated within the cabinet, it offers lower noise levels and safer operation. Other systems with open infeed/outfeed sections or manual loading may pose more safety challenges.
The crawler belt shot blasting machine stands apart due to its tumbling mechanism, batch processing capability, and versatility for small parts. It is an efficient and cost-effective solution for industries that require thorough cleaning of rugged components in manageable volumes. When selecting a shot blasting system, understanding these distinctions can help manufacturers choose the right equipment tailored to their production needs.
Conclusion
The crawler belt shot blasting machine is a versatile and efficient solution for batch cleaning and surface preparation of small and durable workpieces. With its tumbling mechanism, robust construction, and easy operation, it offers consistent performance and high-quality results in a variety of industrial settings.
