Tumble Belt Shot Blasting Machine Overview

Tumble Belt Shot Blasting Machine is a cost-effective solution for tumble-proof parts, tumblast and polygon-drum systems are available with a range of shot blast and workpiece handling technologies.

Among the essential advantages of a tumblast system are the compact design, proven operating principle, high cleaning capacity and the gentle tumbling of parts, as well as the complete exposure of all surfaces to the blasting stream.

Solutions for desanding castings and for descaling forgings or heat-treated workpieces include machines in various designs, with steel or rubber conveyors.

Polygon drum-type machines allow for intensive and gentle shot blasting at high capacity in a polygon-shaped trough rocking back and forth. Automatic loading and unloading provides an almost continuous process with consistent high performance.

Technical Specifications

Item	units	Q324	Q326	QR3210	15GN	28GN
productivity	t/h	0.4-0.6	0.6-1.2	1.5-2.5	5-6	10-12
feeding amount	kg	100	200	600	1300	3500
max.weight of single piece	kg	5	10	30	230	363
diameter of end disk	mm	400	650	1000	1092	1245
Volume	m3	0.1	0.15	0.3	0.43	0.79
shot-blasting capacity	kg/min	100	100	250	480	700
air volume for dedusting	m3/h	2000	2200	5000	5300	6500
power consumption	kw	6	12.6	24.3	49.3	64.5

Application

Applications
Rust and heat scale removal
Paint stripping
Surface texturing
Preparation for painting, bonding and plating
Deburring, deflashing
Cleaning
Cosmetic finishing

Have Any Questions?

If you have any questions or need more information about our shot blasting machines or services, don’t hesitate to reach out！

Whatever your needs, we’re here to make it happen.

Tumble Belt Shot Blasting Machine ideal for batch-cleaning smaller casting and fabrications

Tumblast shot blast machines are the ideal way to clean and finish batches of components such as casting and small fabrications. The transport bel provides the tumbling action to expose all areas of the components to the abrasive and ensure complete cleaning in one go. After each blast cycle, the automatic reversal of the conveyor discharges the components ready for further processing.

All models are self-contained and include automatic sweep up, collection, separation of abrasive and dust collection. No special foundations or additional ducting are required. Further efficiency can be achieved in most models by the addition of automatic loading and unloading equipment.

Our Products

Shot Blasting Machine

Efficiently cleans metal surfaces, removes rust and oxides, enhancing casting quality and production efficiency, helping you reduce costs and improve overall manufacturing performance.

Hanger Shot Blasting Machine

Hanger Type Shot Blasting Machine is used to remove rust, scale, sand and burrs from many kinds of work pieces such as castings, forgings, cylinder blocks, cylinder heads, tractor and diesel

Drum Shot Blasting Machine

The machine is suitable for sand-casting, rust removal, descaling and surface strengthening of small castings, forgings, stampings, gears, springs and other parts in machine tools, automobiles, textile machinery, metallurgy, chemical industry, and aerospace industries.

Wire Rod Shot Blasting Machine

The Wire Rod Shot Blasting Machine is a specialized industrial equipment tailored for the surface preparation of wire rods or wire coils.

Tumble Belt Shot Blasting Machine

The tumble shot blasting machine are designed for cleaning foundry, forge and mill duty parts and components and with long lifespan rubber belt conveyor.

Road Shot Blasting Machine

Road shot blasting machine is a specialized machine crafted for surface preparation such as concrete floor, asphalt road, airport runway, pavement, bridge deck, steel plate, ship deck etc.

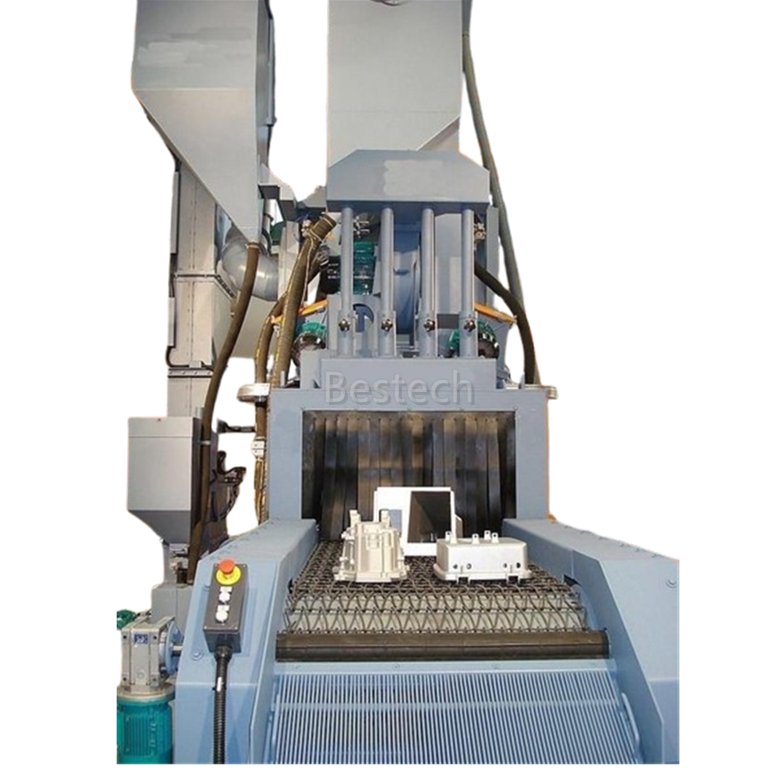

Wire Mesh Belt Shot Blasting Machine
