Mechanical sand reclamation system development has evolved significantly to address both environmental and quality challenges in foundry operations. Sand reclamation is a crucial technology for nobake sand plants, especially when it comes to minimizing waste. By reclaiming and reusing used sand, foundries not only reduce their disposal costs and environmental impact but also lower their dependence on virgin sand. Advanced reclamation systems—such as mechanical reclamation techniques using roller-squeezing mechanisms—efficiently remove residual binders, ensuring the reclaimed sand meets quality standards for subsequent casting processes. This approach plays a key role in creating a more sustainable and cost-effective operation in modern foundries.

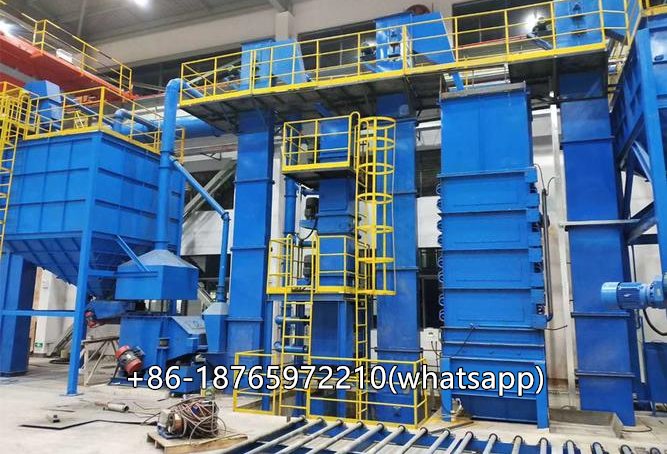

Mechanical No Bake Sand Reclamation System
Mechanical No-Bake Sand Reclamation System is specifically engineered to recover and recycle used sand from nobake molding processes. These systems are designed to remove residual chemical binders—typically room-temperature-curing organic resins—thereby reducing waste and lowering the need for new, virgin sand.
Working Principle
- Breaking and Crushing: Used sand molds or cores are mechanically broken down into smaller fragments. This is usually accomplished by equipment such as sand crushers, which can break large pieces of used sand molds or cores into smaller particles.
- Binder Removal: Residual chemical binders are removed through processes such as attrition or thermal reclamation. In the mechanical attrition process, the sand grains rub against each other or with the equipment surface to peel off the binder film on the sand grain surface. Thermal reclamation uses high – temperature heating to decompose and remove the binder.
- Separation: Air classifiers, sieves, or magnetic separators are used to separate dust, fines, and contaminants (such as metallic particles) from the reusable sand. For example, air classifiers use the difference in the specific gravity of sand and impurities to separate them by air flow; sieves separate sand and impurities according to particle size; magnetic separators use magnetic force to remove magnetic contaminants.
- Cooling: The reclaimed sand is cooled to ensure proper handling and compatibility with new binder systems. Cooling systems are usually equipped with cooling fans or heat exchangers to cool the sand to an appropriate temperature.
- Sand Conditioning: Sometimes, the reclaimed sand is mixed with new sand to ensure consistent mold quality. This can adjust the properties of the reclaimed sand to make it closer to the performance of new sand and better meet the requirements of the molding process.
Advantages
- Cost Savings: It reduces the need to purchase new sand and lowers waste disposal costs, thereby reducing production costs.
- Environmental Benefits: It minimizes waste generation and landfill usage and reduces the extraction of natural sand resources, which is beneficial for environmental protection.
- Improved Mold Quality: Properly reclaimed sand enhances the consistency of molds and cores, which helps improve the quality of castings.
- Operational Efficiency: It streamlines the sand preparation process, reducing downtime and material handling, and improving production efficiency.
Application Scenarios
This system is mainly applicable to foundries using no – bake sand molding processes for complex castings, such as those in the machinery manufacturing, automotive, aerospace, and other industries. These industries require high – quality molds and cores for large or intricate metal castings, and the no – bake sand reclamation system can provide reusable sand that meets the requirements.
Why Mechanical No Bake Sand Reclamation System Widely Used in Foundry
The Mechanical No – Bake Sand Reclamation System is widely used in foundries due to its numerous advantages in cost – effectiveness, environmental protection, and process improvement.
Cost – effectiveness
- Reduced sand purchase costs: Foundries consume a large amount of sand. By reclaiming and reusing sand, the need to purchase new sand is significantly reduced. This is especially beneficial for large – scale foundries, which can achieve substantial cost savings over time.
- Lower waste disposal costs: Without a reclamation system, used sand needs to be disposed of, which incurs costs for transportation and landfill fees. The Mechanical No – Bake Sand Reclamation System reduces the amount of waste sand, thereby lowering these disposal costs.
- Improved production efficiency: The system automates the sand reclamation process, reducing manual labor and the time required for sand preparation. This allows for faster production cycles and increased overall productivity, which helps to offset the initial investment in the system.
Environmental protection
- Reduced resource consumption: Natural sand resources are limited. The widespread use of the reclamation system helps conserve these resources by reducing the demand for new sand extraction. This is in line with the global trend of sustainable development and resource conservation.
- Less waste generation: By reusing sand, the amount of waste sand that would otherwise end up in landfills is significantly decreased. This helps to reduce the environmental impact of foundry operations, including the reduction of greenhouse gas emissions associated with waste disposal and the preservation of land resources.
Process improvement
- Consistent sand quality: The reclamation system ensures that the reused sand maintains a relatively consistent quality, with stable particle size distribution and chemical composition. This consistency is crucial for producing high – quality molds and cores, leading to more accurate and defect – free castings.
- Enhanced casting quality: The clean and well – conditioned reclaimed sand provides better mold surface finish and permeability, which contribute to improving the quality of the castings. It reduces the occurrence of casting defects such as porosity, surface roughness, and misruns, resulting in higher – quality products and fewer rejects.
- Compatibility with no – bake processes: The system is specifically designed for no – bake sand, which is widely used in modern foundries due to its excellent molding properties and low energy consumption. The reclaimed sand can be easily integrated back into the no – bake sand production process, ensuring a seamless operation.
Conclusion
The development of mechanical sand reclamation systems plays a pivotal role in modern foundries. By integrating advanced techniques like shakeout crusher and combining effective attrition methods with automated process controls, these systems achieve efficient, high-quality sand reclamation—thereby lowering costs, reducing environmental impact, and supporting sustainable manufacturing practices. Mechanical No-Bake Sand Reclamation System is vital for modern nobake foundries, ensuring that used sand is effectively cleaned and recycled. This not only supports sustainable manufacturing practices but also enhances the quality of the casting process while minimizing environmental and economic costs.
