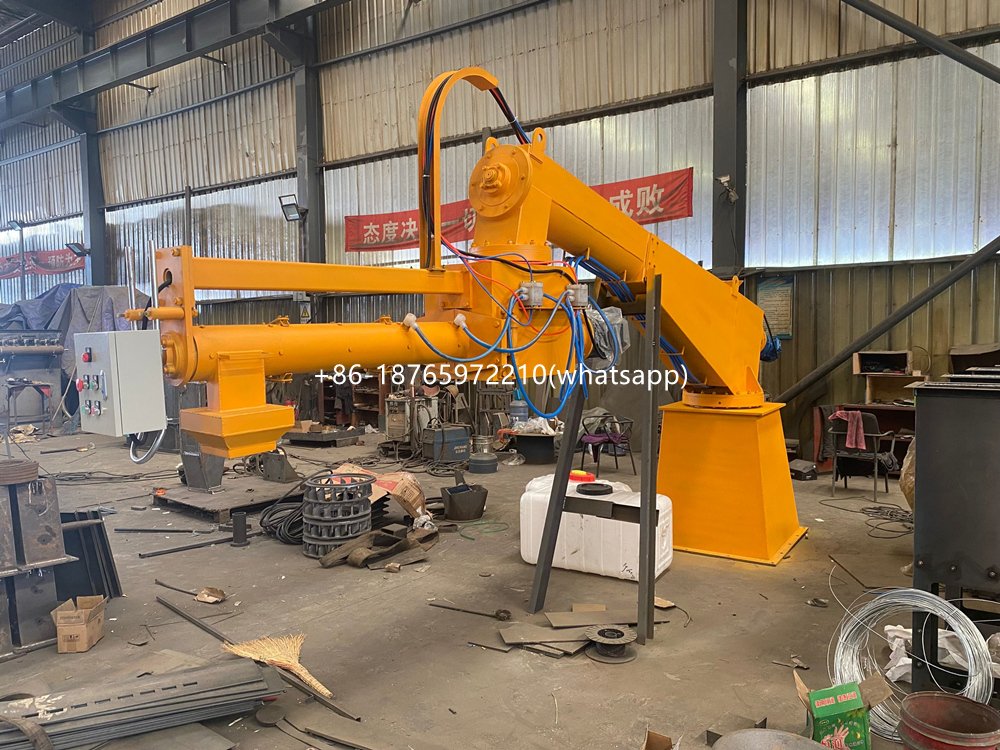

Double Arm Resin Sand Mixer: Efficient and Uniform Sand Mixing for Foundries

Still struggling with resin sand mixing efficiency?

The double arm resin sand mixer is a vital piece of equipment used in foundries for mixing resin sand—an essential process in the production of high-quality sand molds and cores. This machine is designed to efficiently blend resin binders and hardeners with silica sand, ensuring a uniform and consistent mixture required for precision casting.

What Is Double Arm Resin Sand Mixer?

A double arm resin sand mixer is a type of industrial mixing machine used in foundries to prepare resin-coated sand for mold and core making. It is specifically designed to blend resin binders and hardeners uniformly with silica sand, creating a consistent, high-quality mixture essential for no-bake and cold box casting processes.

Key Features of Double Arm Resin Sand Mixer

1. Dual Mixing Arms
   The mixer is equipped with two independently rotating arms, each fitted with high-speed paddles. This dual-arm design enhances the mixing action, ensuring that resin and hardener are thoroughly distributed throughout the sand.
2. Continuous or Batch Operation
   Double arm resin sand mixers are available in both continuous and batch mixing configurations, depending on the production needs of the foundry. Continuous mixers are suitable for large-scale, uninterrupted operations, while batch mixers offer flexibility for smaller production runs.
3. Efficient Resin Injection System
   The machine includes a precise resin and catalyst injection system that delivers controlled amounts of binders into the mixing chamber. This prevents under- or over-bonding, ensuring optimal sand strength and mold integrity.
4. Wear-Resistant Lining
   To withstand the abrasive nature of silica sand, the mixing chamber is lined with high-chromium wear-resistant materials, extending the machine’s service life and reducing maintenance requirements.
5. Adjustable Mixing Speed and Time
   The mixing speed and time can be adjusted to accommodate different resin systems and sand characteristics, allowing foundries to fine-tune the process for the best results.

Advantages of Double Arm Resin Sand Mixer

• Superior Mixing Quality: The dual-arm action provides rapid and thorough mixing, eliminating dead zones and ensuring consistency.
• Improved Mold Quality: Well-mixed sand leads to stronger, smoother molds and cores, improving casting accuracy and surface finish.
• Energy Efficiency: Optimized motor design and efficient power usage make the mixer both effective and cost-saving.
• User-Friendly Control System: Modern mixers come with PLC control panels and touch-screen interfaces for easy operation and monitoring.

Applications

The double arm resin sand mixer is widely used in:

• No-bake molding lines
• Cold-box core making systems
• Aluminum, steel, and iron casting production

Enhancing Foundry Efficiency with Double-Arm Resin Sand Mixers

Introduction

In modern foundry operations, the quality of sand mixing directly impacts casting quality and production efficiency. Double-arm resin sand mixers have emerged as a superior solution for achieving homogeneous sand mixtures while optimizing energy consumption and processing time.

Key Efficiency Advantages

1. Superior Mixing Mechanism

• The counter-rotating arms create a figure-8 mixing pattern that ensures complete material turnover
• Z-shaped blades provide both cutting and kneading actions for thorough binder distribution
• 360° mixing coverage eliminates dead zones common in single-arm mixers

2. Energy and Time Savings

• Dual-arm design reduces mixing cycles by 30-40% compared to traditional mixers
• Optimized power transmission decreases energy consumption per batch
• Faster discharge mechanisms minimize idle time between cycles

3. Quality Consistency

• Precise PLC controls maintain consistent mixing parameters
• Uniform resin coating on every sand grain reduces casting defects
• Repeatable results batch after batch ensure process stability

4. Maintenance Benefits

• Robust construction with wear-resistant liners extends service life
• Accessible design simplifies cleaning and maintenance
• Reduced downtime translates to higher overall equipment effectiveness (OEE)

Operational Considerations

• Proper sand-to-binder ratio optimization
• Regular blade inspection and replacement schedule
• Lubrication system maintenance
• Vibration monitoring for early fault detection

Double-arm resin sand mixers represent a significant advancement in foundry technology, delivering measurable improvements in mixing quality, energy efficiency, and production throughput. Their robust design and intelligent controls make them ideal for foundries aiming to improve competitiveness through process optimization.

Conclusion

The double arm resin sand mixer plays a crucial role in modern foundries by delivering a high-performance, reliable solution for resin sand preparation. With its powerful mixing capability, precise control systems, and durable construction, it ensures the production of high-quality molds and cores—supporting efficient and cost-effective casting operations.
