In modern foundry production, resin sand molding processes are widely used for casting steel, iron, and non-ferrous alloys. While resin sand provides excellent molding strength and dimensional accuracy, it also generates a large amount of used sand after casting.

Without proper recycling, this used sand becomes a major cost and environmental burden.

That is why many foundries are adopting the Integrated Resin Sand Reclamation System.

This system combines multiple reclamation processes to recover used sand, remove residual resin binders, and restore sand quality for reuse in molding production.

A properly designed reclamation system can recover 80–95% of used sand, significantly reducing raw material consumption and waste disposal costs.

1 What Is an Integrated Resin Sand Reclamation System

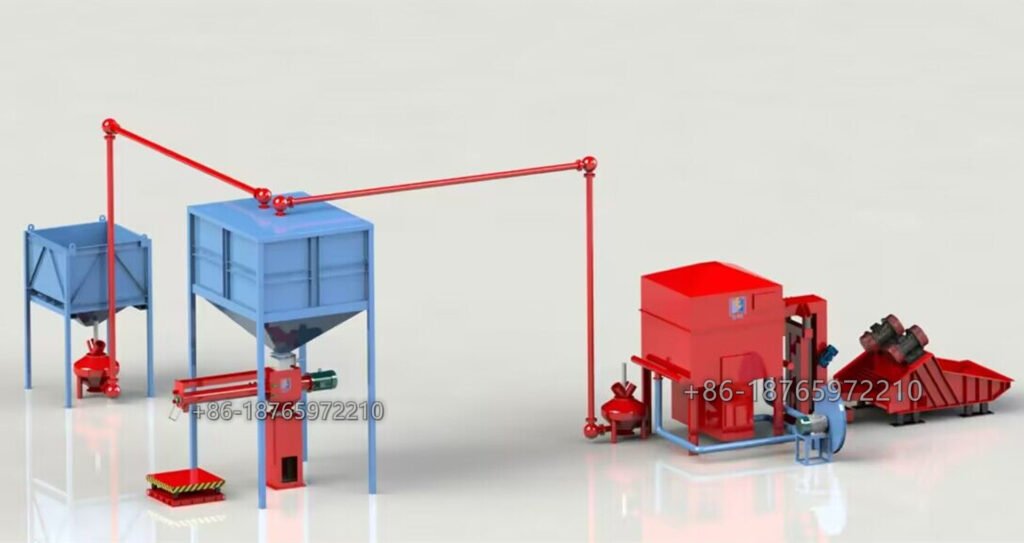

Integrated Resin Sand Reclamation System is a complete processing line designed to recycle and regenerate used resin sand from foundry operations.

Instead of discarding waste sand, the system removes residual binder films and impurities through mechanical, thermal, or combined processes, allowing the sand to be reused.

Typical system sections include:

• Used sand crushing unit
• Mechanical sand reclamation unit
• Thermal regeneration furnace (optional)
• Sand cooling system
• Screening and classification system
• Dust collection system
• Sand storage and conveying system

These systems are designed to comply with international foundry sand quality guidelines such as:

• ISO 11126
• American Foundry Society

The goal is simple:

Recover sand.
Restore sand quality.
Reduce foundry costs.

2 Working Principle of Resin Sand Reclamation

The reclamation process generally follows several stages.

Used Sand Collection

After casting shakeout, used resin sand is transported to the reclamation system via conveyors or bucket elevators.

Large lumps are broken down in a sand crusher.

Mechanical Reclamation

Mechanical reclamation removes the binder film through friction and collision between sand grains.

High-speed rotating blades create intense rubbing action, separating resin residues from the sand surface.

This process is suitable for partial resin removal and sand recycling.

Typical mechanical reclamation efficiency:

70–85%.

Cooling and Screening

After thermal treatment, sand must be cooled and screened.

This stage removes:

• Fine dust
• Metal impurities
• Agglomerated particles

Finally, the reclaimed sand is stored and returned to the molding process.

3 Main Advantages of Integrated Sand Reclamation Systems

Many modern foundries invest in integrated reclamation systems because of several operational benefits.

Reduced Raw Sand Consumption

Silica sand is a major cost in foundry production.

A reclamation system can reduce new sand usage by 60–90%.

Lower Environmental Impact

Waste sand disposal is a growing environmental concern.

Reclamation systems reduce landfill waste and help foundries comply with environmental regulations.

Many systems are designed to meet emission limits recommended by organizations such as:

• OSHA

Improved Sand Quality Stability

Integrated systems maintain consistent sand grain size and remove contaminants, improving mold quality and casting accuracy.

Lower Production Cost

Recycled sand significantly reduces:

• raw material cost
• transportation cost
• waste disposal cost

For large foundries, the payback period of reclamation systems is typically 1–3 years.

4 Typical Technical Parameters

The design of an integrated resin sand reclamation system varies depending on production capacity.

A typical mid-scale system may include the following specifications.

System design must match the foundry production scale and molding process.

5 Common Applications in Foundries

Integrated resin sand reclamation systems are widely used in various casting industries.

Typical applications include:

• steel casting foundries
• iron casting production
• automotive component manufacturing
• heavy machinery casting
• pump and valve casting

The system is especially suitable for furan resin bonded sand processes, which generate large volumes of reclaimable sand.

6 Common Problems and Troubleshooting

Like any industrial system, sand reclamation equipment may encounter operational issues.

Some common problems include:

Low Sand Recovery Rate

Possible causes:

• insufficient mechanical friction
• low furnace temperature
• excessive binder content

Solution:

• adjust rotor speed
• increase thermal temperature
• optimize molding binder ratio

High Dust Emission

Possible causes:

• clogged filter cartridges
• insufficient airflow

Solution:

• clean or replace filters
• inspect dust collector fan performance

Reclaimed Sand Quality Instability

Possible causes:

• poor separator performance
• inconsistent feed rate

Solution:

• recalibrate separator airflow
• stabilize sand feeding system

Routine maintenance helps maintain consistent system performance.

7 Maintenance Tips for Long-Term Operation

For reliable operation, foundries should implement a regular maintenance plan.

Recommended practices include:

Daily inspection

• monitor dust collector operation
• check conveyor performance
• inspect abnormal noise

Weekly inspection

• clean screening equipment
• check mechanical reclamation blades
• inspect bearings and drive systems

Monthly inspection

• check furnace temperature control
• inspect refractory lining
• test sand quality parameters

Preventive maintenance ensures long service life and stable sand recycling efficiency.

Conclusion

The Integrated Resin Sand Reclamation System has become an essential technology in modern foundries. By recycling used resin sand and restoring its quality, these systems significantly reduce raw material costs and environmental impact.

With proper design, operation, and maintenance, a sand reclamation system can recover up to 95% of used sand, improving both economic efficiency and sustainable production.

For foundries seeking to optimize production and reduce waste, investing in an integrated sand reclamation system is a practical and long-term solution.
