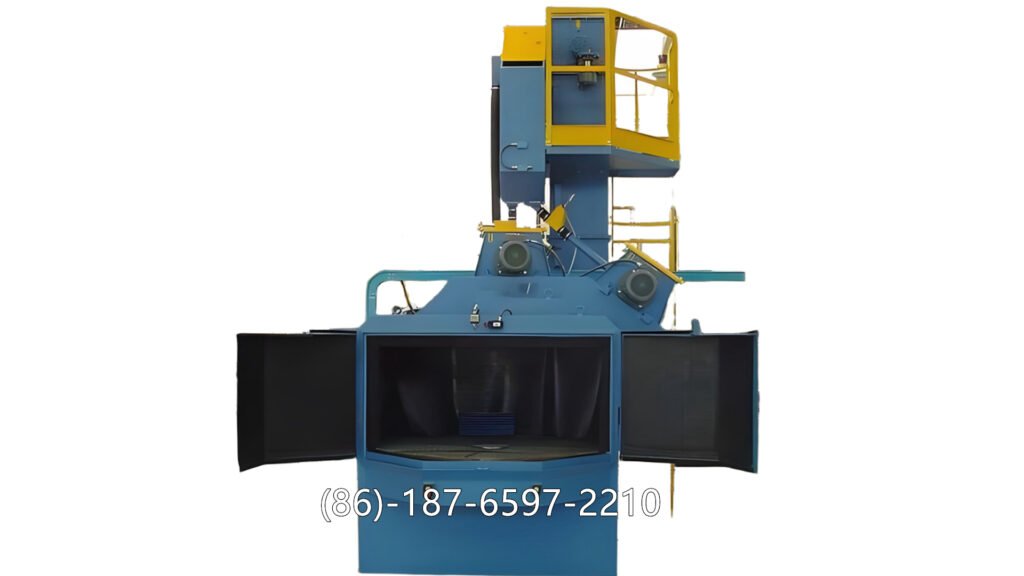

Table shot blasting machine (also called a table-type or turntable shot blasting machine) is a closed blasting chamber equipped with a rotating worktable. During operation, the blast wheel projects steel shot or steel grit at high speed onto the workpieces placed on the table. As the table rotates, all sides of the parts are exposed to the blasting stream, achieving uniform cleaning.
Key Factors That Influence Cleaning Performance And The Essential Precautions To ensure Safe, Stable Operation
On surface treatment that the cleaning quality of a table shot blasting machine does not depend on a single parameter. It is the combined result of equipment condition, abrasive selection, operating habits, and maintenance.
Key Factors Affecting the Cleaning Effect
1.1 Abrasive Type and Quality
The abrasive is the “cutting tool” of the whole system.
- Shape: Steel shot provides uniform peening; steel grit provides aggressive cutting.
- Hardness: Harder abrasives produce faster cleaning but wear out parts quicker.
- Size: Larger shot removes thicker rust and scale; smaller shot gives a smoother surface.
- Cleanliness: Dusty or broken abrasives reduce impact energy and lead to inconsistent results.
1.2 Abrasive Flow Rate
The flow rate directly affects coverage and cleaning intensity.
- Too low → insufficient cleaning.
- Too high → over-peening, abrasive waste, and increased wear.
Stable, calibrated flow valves and regular adjustment are necessary.
1.3 Blast Wheel Speed and Power
The blast wheel is the heart of the machine.
- Higher wheel speed increases impact energy.
- Worn blades or unbalanced wheels reduce efficiency and create uneven blasting.
- Regular inspection and timely replacement maintain optimal performance.
1.4 Workpiece Placement and Rotation
A table shot blasting machine relies on continuous rotation to achieve uniform exposure.
- Workpieces must be properly spaced, not overlapping.
- Heavy or irregular parts should be arranged to avoid blocking blast coverage.
- Stable rotation speed ensures every surface receives equal impact.
1.5 Machine Sealing and Dust Removal
Dust affects both blasting performance and operator environment.
- A well-functioning dust collector maintains abrasive purity.
- Poor sealing leads to leaks, dust accumulation, and reduced visibility inside the chamber.
- Clean filters and vacuum channels are essential for consistent cleaning effect.
1.6 Workpiece Material and Surface Condition
Different materials respond differently to blasting.
- Harder metals require higher intensity.
- Thick scale, welding slag, or oil residue may need pre-treatment.
Starting with a relatively clean surface improves final results and reduces abrasive consumption.
Precautions for Safe and Efficient Operation
2.1 Pre-Operation Inspection
Before starting each shift, the operator should check:
- Abrasive level in the hopper
- Wheel motor condition
- Blades and impeller for wear
- Chamber seals and door safety switches
- Dust collector performance
A quick 2–3 minute check prevents major issues later.
2.2 Correct Loading of Workpieces
- Avoid overloading the table—too much weight affects rotation speed.
- Ensure parts are stable and won’t shift during blasting.
- Do not mix very large and very small parts; it affects uniformity.
2.3 Maintain Proper Abrasive Mixture
A table shot blasting machine works best with a balanced mix of new and used shot.
- Add new abrasive regularly.
- Remove excessive fines from the system.
- Monitor separator performance to maintain good abrasive quality.
2.4 Avoid Opening Doors During Operation
For safety reasons:
- Never open the machine door during blasting.
- Always wait until the blast wheel and table have fully stopped.
- Ensure interlock systems are functioning properly.
2.5 Keep the Dust Collector Running
The dust collector must operate synchronously with the blasting process.
- Check filter cartridges often.
- Clean or replace filters when airflow drops.
- Prevent dust buildup that affects machine efficiency.
2.6 Routine Maintenance and Lubrication
Key components like bearings, wheel units, and screw conveyors require:
- Scheduled lubrication
- Tightening of bolts
- Checking for vibration
Preventive maintenance greatly extends equipment lifespan.
2.7 Monitor Noise and Vibration
Abnormal sounds indicate:
- Worn blades
- Loose fasteners
- Unbalanced blast wheel
Stop the machine and troubleshoot immediately to avoid damage.
Conclusion
Table shot blasting machine is reliable and efficient when used correctly, but it demands proper settings, stable abrasive quality, and consistent maintenance. When operators follow the correct procedures and inspect the equipment regularly, the machine delivers excellent cleaning quality, longer component life, and lower operating costs.
