Maximize recovery. Minimize costs.
If your foundry uses resin-bonded sand, you know how expensive waste management can get. Our High-Efficiency Sand Reclamation Line is designed to solve exactly that.
Why Modern Foundries Are Investing in Resin Sand Reclamation Systems
In today’s highly competitive foundry industry, manufacturers are facing rising challenges:
- Increasing raw sand costs
- Higher environmental compliance requirements
- Expensive waste sand disposal
- Demand for stable casting quality
- Pressure to reduce production costs
For foundries using furan resin sand, phenolic resin sand, or no-bake sand processes, discarded used sand represents both a major operational cost and an environmental burden.
This is why more foundries are adopting a Foundry Resin Sand Reclamation Line — a highly efficient recycling solution that restores used resin-bonded sand for repeated production use.
A professional resin sand reclamation system can recover 92%–98% of used sand, dramatically reducing new sand consumption while maintaining excellent mold and core performance.

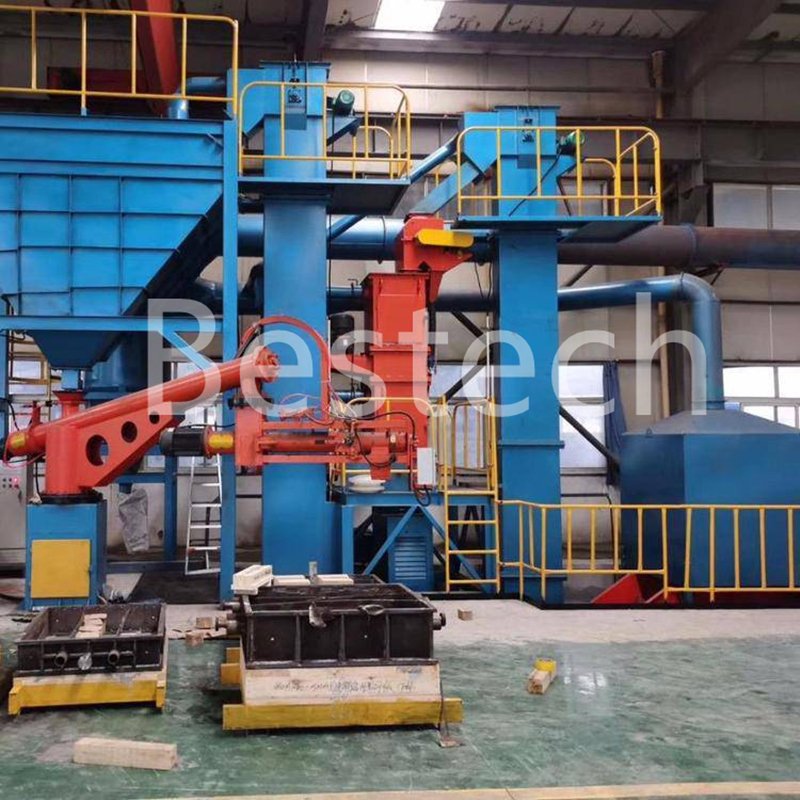

What Is a Foundry Resin Sand Reclamation Line?
Resin Sand Reclamation Line is an automated system designed to recycle used chemically bonded sand by removing residual binder film and impurities from the sand surface.
The process typically includes:
- Crushing
- Magnetic separation
- Mechanical attrition
- Thermal reclamation (optional)
- Dust removal
- Screening
- Cooling
- Sand storage
After processing, reclaimed sand can be reused in mold and core production, significantly lowering operational costs.
Why Resin Sand Recycling Matters
Industry studies show raw silica sand and binder costs can account for a significant percentage of foundry molding expenses.
Without reclamation, foundries face:
❌ High new sand purchasing costs
❌ Large waste disposal expenses
❌ Increased environmental emissions
❌ Inconsistent molding quality
With an efficient reclamation system, foundries gain:
✅ Lower raw material consumption
✅ Reduced waste discharge
✅ Improved process sustainability
✅ More stable molding properties
✅ Faster return on investment
How a Resin Sand Reclamation Line Works
1. Sand Lump Crushing
Used sand lumps are crushed into smaller particles.
This stage ensures efficient downstream separation.
2. Magnetic Separation
Metal particles and ferrous impurities are removed to protect equipment and improve reclaimed sand purity.
3. Mechanical Attrition
High-speed friction between sand particles removes residual resin film from the surface.
This restores:
- Sand roundness
- Surface cleanliness
- Bonding performance
4. Dust Removal & Air Classification
Fine powder and degraded binder residues are extracted through dust collection systems.
This improves reclaimed sand quality.
5. Screening & Cooling
The system ensures:
- Uniform particle size distribution
- Stable temperature
- Consistent molding performance
6. Storage and Reuse
Clean reclaimed sand is stored for immediate reuse in the molding line.
Technical Parameters
| Model | Capacity (T/H) | Reclamation Efficiency | Dust Emission | Power Consumption |
|---|---|---|---|---|
| SFL-5 | 5 T/H | 85–92% | ≤20 mg/m³ | 35–55 kW |
| SFL-10 | 10 T/H | 88–95% | ≤20 mg/m³ | 60–90 kW |
| SFL-15 | 15 T/H | 90–96% | ≤20 mg/m³ | 90–130 kW |
| SFL-20 | 20 T/H | 92–98% | ≤20 mg/m³ | 130–180 kW |
Custom solutions are available according to foundry production requirements.
Key Advantages of a High-Efficiency Resin Sand Reclamation Line
Significant Cost Reduction
By reusing reclaimed sand, foundries can reduce:
- New sand purchases by up to 90%
- Disposal costs by 60%–80%
- Binder consumption through better sand consistency
Improved Casting Quality
Clean reclaimed sand delivers:
- Better mold strength
- Lower gas defects
- Reduced casting porosity
- More stable dimensional accuracy
Environmental Compliance
Modern reclamation systems support green foundry operations by reducing:
- Landfill waste
- Dust emissions
- Resource consumption
This helps meet international environmental regulations.
Automated Intelligent Control
Advanced PLC control systems allow:
- Real-time monitoring
- Automatic process adjustment
- Fault diagnostics
- Lower labor requirements
Applications
Resin sand reclamation lines are widely used in:
Steel Casting Foundries
For large structural castings requiring high-quality molds.
Iron Casting Production
Ideal for automotive and machinery casting plants.
Precision Foundries
Where reclaimed sand consistency is critical.
Heavy Equipment Manufacturing
Supports high-volume sand recycling.
How to Choose the Right Resin Sand Reclamation Line
Consider these factors:
Production Capacity
Match system throughput to molding line demand.
Sand Type
Suitable for:
- Furan resin sand
- Phenolic resin sand
- Alkyd resin sand
- No-bake bonded sand
Reclamation Method
Choose:
Mechanical Reclamation
Lower energy consumption.
Thermal Reclamation
Higher purity and deeper binder removal.
Automation Level
PLC automation improves process consistency.
Why Leading Foundries Choose Professional Suppliers
Selecting an experienced supplier ensures:
- Customized engineering design
- Full production line integration
- Reliable technical support
- Installation guidance
- Long-term spare parts supply
Frequently Asked Questions
What is the sand recovery rate?
Most systems achieve 85%–98% reclamation efficiency depending on resin type.
Can reclaimed sand fully replace new sand?
In many applications, reclaimed sand can replace 70%–100% of fresh sand.
How quickly can ROI be achieved?
Most foundries recover investment within 12–24 months through material savings.
Is thermal reclamation necessary?
It depends on required sand purity and casting quality standards.
The Business Value: Why Invest Now
A modern Foundry Resin Sand Reclamation Line is more than recycling equipment.
It is a strategic investment that helps foundries:
- Reduce operational costs
- Improve product quality
- Meet sustainability targets
- Increase profitability
As raw material costs continue to rise, efficient sand reclamation becomes essential for long-term competitiveness.
Request Your Custom Resin Sand Recycling Solution Today
Looking for a reliable high-efficiency sand reclamation system for your foundry?
Our engineering team provides:
✅ Free technical consultation
✅ Customized line design
✅ Layout planning
✅ ROI analysis
✅ Factory-direct pricing
✅ Global installation support
Contact us now for:
✔ Detailed quotation
✔ Technical proposal
✔ Production line configuration
✔ Sand recovery analysis
Send us your foundry process details today and receive a tailored solution within 24 hours.
