Green Sand Mixer
Green Sand Mixer Overview
Green sand mixer is a machine used in foundries to prepare green sand for metal casting processes. Green sand is a mixture of silica sand, clay (such as bentonite), water, and sometimes other additives, which acts as a mold material for casting molten metals.
Purpose of a Green Sand Mixer
The primary function of the mixer is to ensure that the sand and its binding agents are uniformly mixed, creating a homogenous, moldable material that can hold its shape when pressed into molds.
Technical Specifications
Model | GS20-55 | GS20-75 | GS22-75 | GS22-90 | GS25-110 | GS25-132 | GS29-200 |
Name | sand mixer | sand mixer | sand mixer | sand mixer | sand mixer | sand mixer | sand mixer |
(mm) Disk diameter | 2000 | 2000 | 2240 | 2240 | 2500 | 2500 | 2850 |
(t/h) Capacity | 20~28 | 25~32 | 30~35 | 35~40 | 40~50 | 50~60 | 60~80 |
(KW)Main motor power | 55 | 75 | 75 | 90 | 110 | 132 | 200 |
(KW)Rotor motor power | 2×30 | 2×37 | 2×45 | 2×45 | 2×45 | 2×55 | 2×55 |
(r/min) Main shaft speed | 31.72 | 31.72 | 27.32 | 27.32 | 27.3 | 27.32 | 25.4 |
(r/min)Rotor speed | 1270 | 1270 | 975 | 975 | 950 | 950 | 850 |
Types of Green Sand Mixers
Green sand mixing machine can be divided into rotor sand mixing machine and roller sand mixing machine
Rotor Sand Mixer
Design:
Uses a set of rotors or blades that rotate at high speeds.
The blades are designed to agitate and mix the sand thoroughly.
Working Principle:
The high-speed rotation of the blades creates strong shear forces, ensuring uniform mixing of sand, clay, and water.

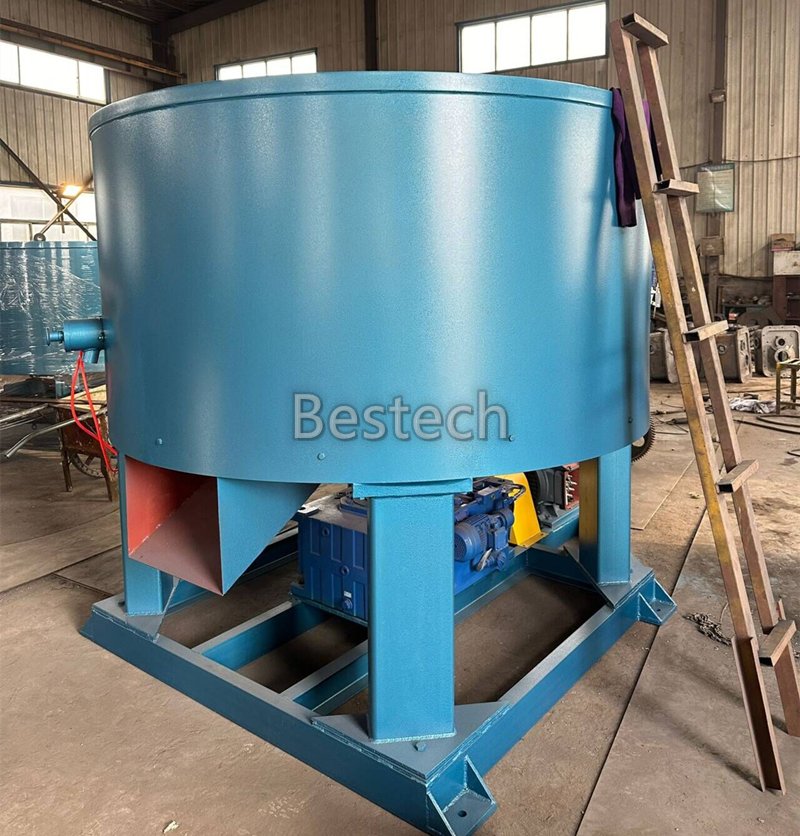

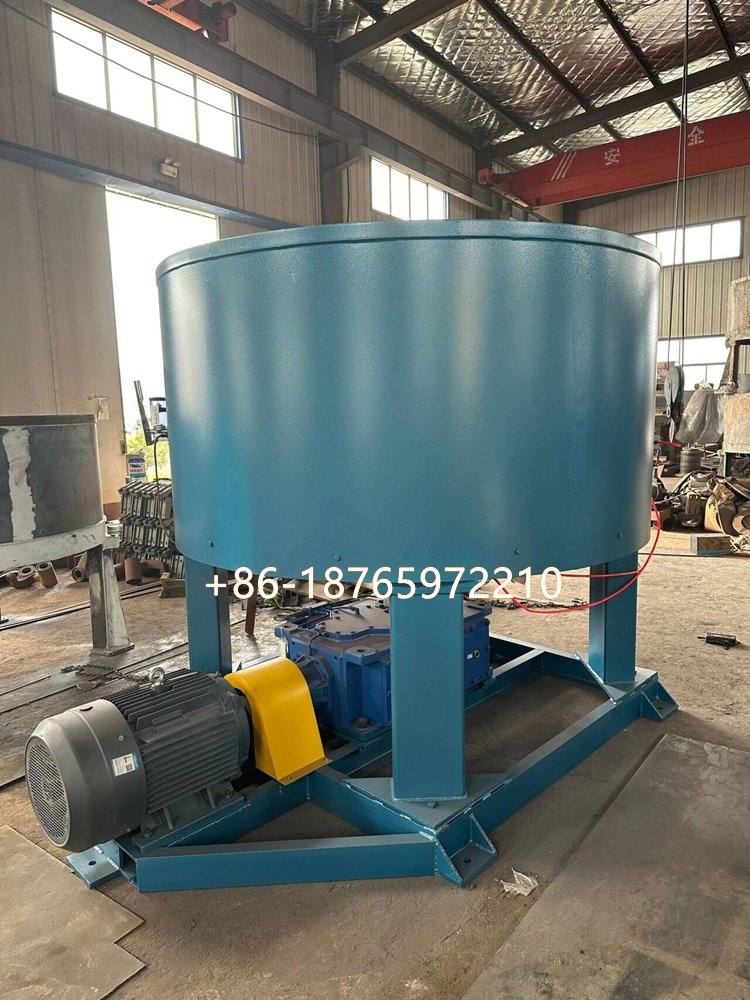

Roller Sand Mixer
Design:
Equipped with heavy rollers (cylindrical or wheel-shaped) that rotate over the sand mixture in a shallow pan.
Often includes plows or scrapers to push the sand under the rollers.
Working Principle:
Rollers compress and grind the sand mixture, ensuring even blending.
The pressure of the rollers ensures the clay binds well with the sand particles.
Have Any Questions?
If you have any questions or need more information about our shot blasting machines or services, don’t hesitate to reach out！
Categories
Whatever your needs, we’re here to make it happen.
The green sand mixing machine is mainly used for foundry sand mixing, can be used for single sand ,and mixed fired mold sand, self-hardening sand, face sand and core sand, also can be used for glass, ceramics , Refractory materials, etc industries, mix various of powder granular materials.
Mixed sand fast, good quality of molding sand, reliable performance, high productivity, easy maintenance.
