A tumble belt shot blasting machine is used for cleaning, descaling, deburring, or surface preparation of small to medium-sized workpieces. It operates using a combination of mechanical tumbling and high-velocity abrasive blasting.
What Is A Tumble Belt Shot Blasting Machine?

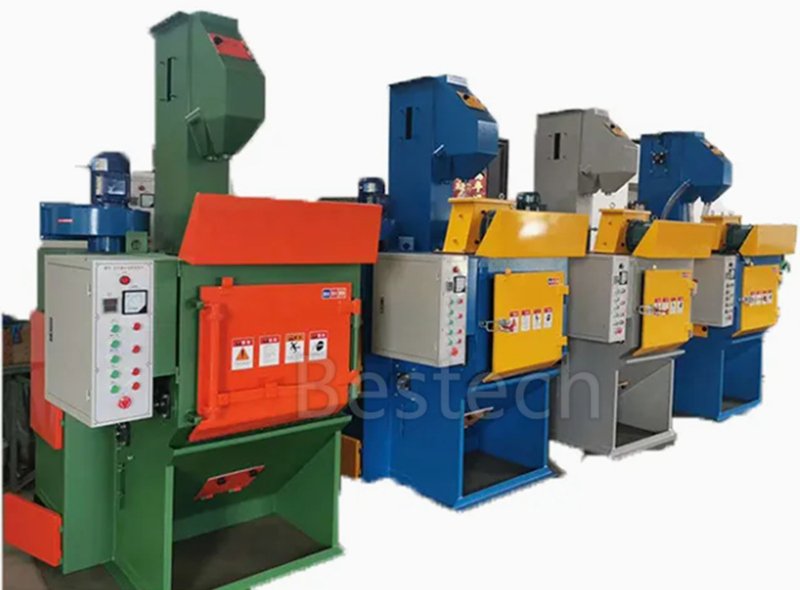

Tumble belt shot blasting machine is a specialized surface preparation machine designed to clean, descale, deburr, or prepare the surface of small to medium-sized parts. It combines the principles of tumbling and abrasive blasting to achieve uniform surface treatment of multiple components in a single batch.
Key Features of a Tumble Belt Shot Blasting Machine

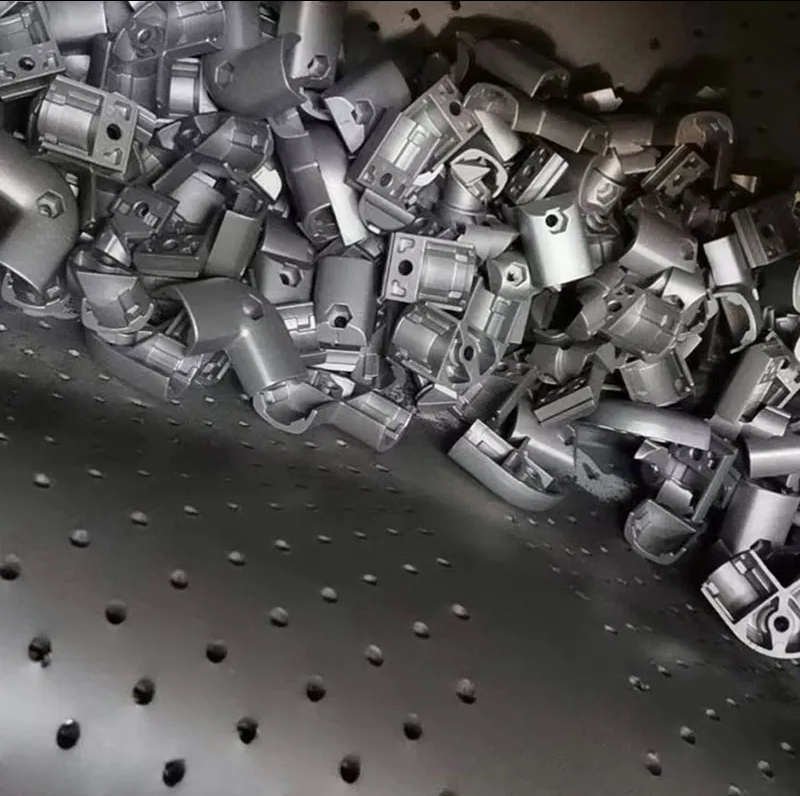

Tumbling Belt/Drum:The machine features a rubber or metal perforated belt that rotates continuously.
Workpieces are placed inside, and the belt gently tumbles them, exposing all surfaces to abrasive media.
Blasting Mechanism:The machine uses one or more high-speed turbines (blasting wheels) to propel abrasive media (e.g., steel shots, grit) at high velocity toward the tumbling parts.
The abrasive removes rust, scale, or other surface impurities.
Media Recovery System:After blasting, the used abrasive is collected, separated from debris, and recycled for reuse.
Dust Collection System:Ensures clean operation by filtering and collecting dust and fine particles generated during blasting.
Automation Options:Some models include automatic loading/unloading mechanisms to improve efficiency.
How It Works
Loading:Workpieces are loaded into the machine, either manually or via a loading hopper.
The parts must be small and durable enough to endure tumbling and blasting.
Tumbling:The belt rotates, causing the workpieces to tumble continuously. This ensures that all surfaces of the parts are exposed to the abrasive stream.
Blasting:High-speed turbines throw abrasive media at the tumbling workpieces.
The impact of the abrasive cleans the surface, removes rust, scale, or burrs, and prepares the surface for further treatment (e.g., painting or coating).
Abrasive Recovery and Cleaning:The abrasive media, along with debris, falls through the perforated tumbling belt into a collection hopper.
The system separates reusable abrasive from debris using an air separator or magnetic separator.
Dust Collection:A dust collector extracts and filters the fine dust particles created during the process, ensuring clean air and preventing contamination.
Unloading:Once the blasting cycle is complete, the clean workpieces are discharged either manually or via an automated system.
Tumble Belt Shot Blasting Machine Classification
Tumble belt shot blasting machine with rubber belt
Tumble Shot Blasting Machines have a perpetual caterpillar made from perforated rubber belt. Treated objects are put by a special filling contraction to caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated object to be quality blasted in a jet of abrasive. For emptying, caterpillar is started-up in the opposite direction turning mode.
Tumble belt shot blasting machine with manganese steel belt
Tumble Shot Blasting Machines have a perpetual caterpillar made from steel flaps. Treated objects are put by a special filling contraction to caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated objects to be quality blasted in a jet of abrasive. For emptying, caterpillar is started-up in the opposite direction turning mode.
Tumble Belt Shot Blasting Machine Application
1.Rust and Scale Removal:
Removes rust and mill scale from metal parts.
2.Deburring:
Removes sharp edges or burrs from machined or cast components.
3.Surface Preparation:
Prepares surfaces for painting, powder coating, or other finishes.
4.Desanding:
Cleans casting parts by removing sand and other residues.
5.Peening:
Strengthens the surface of components by creating compressive stress.
Tumble Belt Shot Blasting Machine Advantages
Batch Processing: Handles multiple workpieces at once, making it efficient for mass production.
Durable Design: Built to withstand abrasive media and heavy-duty operations.
Cost-Effective: Recycles abrasive media, reducing operational costs.
Uniform Surface Finish: The tumbling action ensures even blasting on all surfaces.
Conclusion
Tumble belt blast machine are suitable for the derusting, deburring, roughening, or cleaning of robust work pieces of any size that are suitable for tumbling. It offer a highly efficient and cost-effective solution for surface treatment, particularly for workpieces that are tumble-proof.
