In the foundry industry, producing high-quality sand cores is essential for casting complex metal components with precision. Among various core-making technologies.
The Hot Box Core Shooter Machine stands out due to its efficiency, speed, and consistency in producing durable cores.
This article explores the working principles, features, and advantages of the Hot Box Core Shooter Machine.
Development History of the Hot Box Core Shooter Machine
The evolution of core-making technology has been critical to the advancement of the metal casting industry. Among the key innovations, the Hot Box Core Shooter Machine has played a significant role in improving productivity, core quality, and environmental performance. Understanding the development history of this machine provides valuable insight into how modern foundries have become faster, safer, and more efficient.
1. Origins of Core-Making Technology
Before the introduction of mechanized core-making, sand cores were manually formed using wooden patterns and hand-mixed binders. These methods were labor-intensive, inconsistent, and limited in complexity. As the demand for more precise and durable castings grew in the early 20th century—especially during industrialization and wartime manufacturing—engineers sought new ways to produce high-quality cores more efficiently.
2. Introduction of the Hot Box Process (Mid-20th Century)
The Hot Box process was developed around the 1950s as a significant breakthrough in core-making. This method introduced a thermosetting resin (such as urea-formaldehyde or phenolic resin) that could cure rapidly when exposed to heat. By heating the core box and injecting a sand-resin mixture, foundries could form solid, high-strength cores in seconds rather than hours.
This innovation led to the creation of early Hot Box Core Shooter Machines, which mechanized the process, drastically reducing labor and improving consistency.
3. Automation and Hydraulic Systems (1970s–1980s)
As foundry automation gained momentum in the 1970s and 1980s, Hot Box machines evolved with the integration of hydraulic systems, pneumatic controls, and electrical timers. These improvements allowed for:
- Faster and more controlled sand injection
- Improved repeatability in core production
- Enhanced safety for operators
Machines also became capable of handling more complex core box designs, supporting mass production needs in automotive and heavy machinery industries.
4. Introduction of PLC and CNC Controls (1990s–2000s)
The 1990s brought the rise of PLC (Programmable Logic Controller) technology, enabling real-time process monitoring, error detection, and automation integration. Hot Box Core Shooters became smarter and more efficient, with features such as:
- Touchscreen interfaces
- Adjustable curing times and temperatures
- Memory for multiple core programs
Later, some systems incorporated CNC positioning for even more precision in core alignment and multi-cavity operations.
5. Modern Innovations (2010s–Present)
Today’s Hot Box Core Shooter Machines are the result of decades of refinement. They now include:
- Energy-efficient heating systems to reduce operating costs
- Robotic handling systems for fully automated core collection
- Modular designs to adapt to different production requirements
- Environmentally-friendly binders to comply with stricter emission regulations
Additionally, many machines are now Industry 4.0 ready, with features like remote diagnostics, data tracking, and IoT connectivity.
6. Global Expansion and Future Trends
While the technology originated in Western foundries, Hot Box machines are now widely used across Asia, Europe, and the Americas. As industries seek sustainable, high-performance casting solutions, future developments are expected to focus on:
- Further automation and AI integration
- Eco-friendly binder systems
- Smart maintenance and predictive analytics
- Greater energy efficiency
The Hot Box Core Shooter Machine has come a long way from its origins in mid-20th century foundries. Its evolution reflects broader changes in industrial technology, from manual methods to smart, connected systems. As demands for quality, speed, and sustainability continue to rise, the Hot Box machine will undoubtedly remain a cornerstone of advanced core-making processes around the world.
What is a Hot Box Core Shooter Machine?

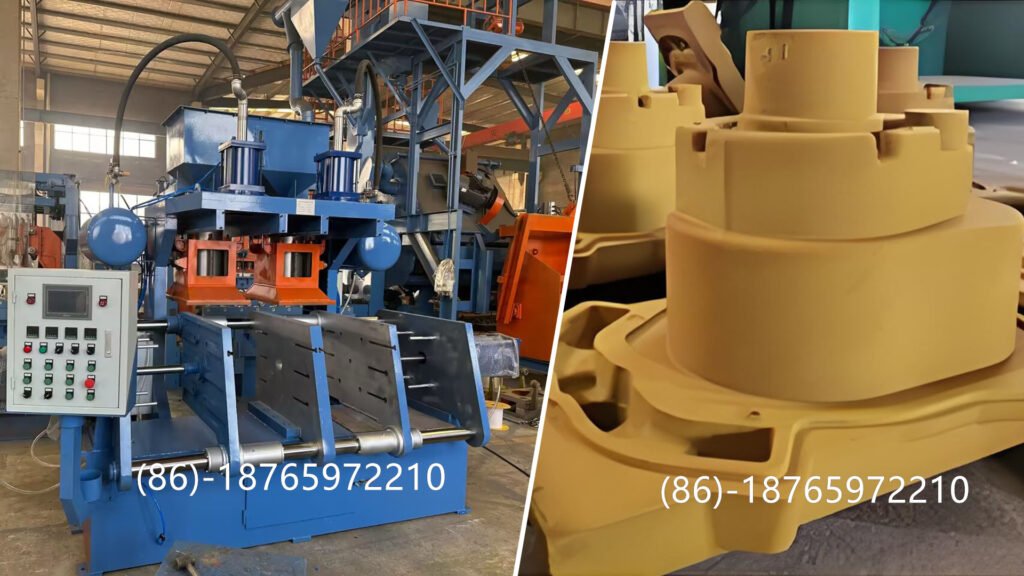

Hot Box Core Shooter Machine is a type of core-making equipment used in foundries to manufacture sand cores using the Hot Box process. In this method, a sand-resin mixture is injected into a heated core box. The heat from the core box activates the thermosetting resin in the sand, causing it to cure rapidly and form a solid core.
How Does It Work?
- Sand Preparation: A mixture of sand and a thermosetting resin binder is prepared.
- Core Box Heating: The core box is preheated to a specific temperature (usually between 200°C and 300°C).
- Sand Injection: The sand mixture is injected into the heated core box under pressure.
- Curing Process: The heat cures the resin, bonding the sand particles together within seconds.
- Core Ejection: Once cured, the solid core is ejected from the machine for further use in the casting process.
Key Features
- High Production Speed: Rapid curing allows for short cycle times and high productivity.
- Precision and Consistency: Accurate control systems ensure uniform core shapes and sizes.
- Durable Construction: Made from heat-resistant materials to withstand high operating temperatures.
- User-Friendly Interface: Often equipped with PLC-based control systems for easy operation and automation.
- Versatility: Suitable for producing a wide variety of core sizes and geometries.
Benefits of Using a Hot Box Core Shooter
- Improved Core Strength: Produces cores with excellent dimensional stability and mechanical strength.
- Reduced Gas Emission: Thermosetting resins typically produce fewer emissions than cold box alternatives.
- Efficient Workflow: Minimizes production downtime due to fast curing and ejection cycles.
- Cost-Effective: Reduces labor and material waste through automation and precise control.
Applications
Hot Box Core Shooters are widely used in:
- Automotive part manufacturing
- Heavy machinery casting
- Aerospace and defense components
- Pipe fittings and valve bodies
Why Choose a Hot Box Core Shooter Machine?
In the competitive world of metal casting, the quality and efficiency of core production directly affect the success of the entire casting process. Among the many technologies available, the Hot Box Core Shooter Machine is widely recognized for its performance, reliability, and versatility. But what makes it the preferred choice for many foundries around the world? Let’s explore the key reasons.
1. Fast Curing Time, High Productivity
The Hot Box process uses heat to quickly cure the sand-resin mixture inside the core box. This results in extremely short cycle times — often just a few seconds per core — making it ideal for high-volume production environments. Foundries can produce more cores in less time without compromising quality.
2. Excellent Core Strength and Surface Quality
Because the resin is thermally cured, the resulting cores are strong, dimensionally stable, and have a smooth surface finish. These characteristics are essential for producing precise and complex castings, especially in the automotive and aerospace industries.
3. Stable and Reliable Operation
Hot Box Core Shooter Machines are built with durable components designed to withstand high temperatures and continuous use. Their robust construction ensures long-term reliability and minimal maintenance, reducing the risk of downtime.
4. Cost Efficiency Over Time
Although the initial investment may be higher than cold box machines, the Hot Box method offers long-term savings:
- Faster cycle times reduce labor costs
- Lower resin consumption due to efficient curing
- Less material waste thanks to precision injection systems
- Reduced core rejection rates
These factors make the Hot Box system a smart financial decision for many foundries.
5. Environmental Advantages
Hot Box technology typically produces fewer emissions compared to some cold curing systems. With proper ventilation and emission controls, it can help meet stricter environmental and workplace safety standards.
6. Versatility in Core Design
From small precision cores to large and complex shapes, Hot Box machines can handle a wide variety of designs. The process supports multi-cavity core boxes and can be customized for specific casting requirements, offering flexibility in production.
7. Automation-Friendly
Modern Hot Box machines are equipped with PLC controls and can be fully integrated into automated casting lines. This reduces the need for manual operation, enhances consistency, and allows real-time monitoring and data collection.
The Hot Box Core Shooter Machine is more than just a core-making tool — it’s a key driver of quality, speed, and cost efficiency in modern foundries. With its fast curing capabilities, high core strength, and adaptability to different production needs, it’s a top choice for foundries aiming for performance, precision, and profitability.
Conclusion
The Hot Box Core Shooter Machine plays a crucial role in modern foundry operations by offering a fast, reliable, and efficient method for core production. With ongoing advancements in automation and material science, this technology continues to evolve, ensuring even greater performance and sustainability for the metal casting industry.
