How Hot Box Core Shooting Machine Works？

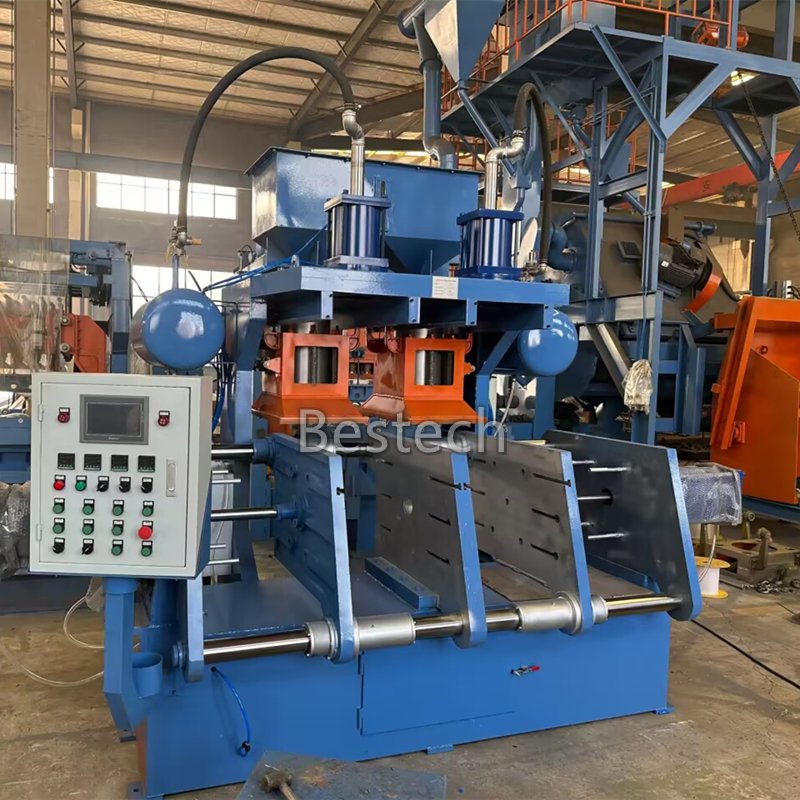

Hot box core shooting machine is a specialized piece of equipment used in the foundry industry to create sand cores for casting. The “hot box” process is a chemical method where a mixture of sand and a heat-activated binder is shot into a core box, which is then heated to cure the binder and produce a rigid sand core.

How Hot Box Core Shooting Machine Works

1. Sand Preparation
   Sand Mixture: A mixture of fine silica sand, a heat-activated binder (typically a thermosetting resin like phenolic or furan resin), and a catalyst is prepared.
   The catalyst ensures the binder cures rapidly when exposed to heat.
   The sand mixture must be homogeneous for uniform core strength and dimensional accuracy.
2. Loading the Sand Mixture
   The prepared sand mixture is loaded into a hopper or reservoir on the core shooting machine.
   The hopper is connected to the shooting head, which is responsible for injecting the sand into the core box.
3. Core Box Setup
   Core Box Design: The core box (or mold) is made of metal (usually aluminum or steel) and designed to withstand high temperatures. It contains the negative shape of the core being produced.
   Heating System: The core box is preheated to a specific temperature, typically between 200–300°C (392–572°F), depending on the binder system being used.
   This heat activates the curing process.
4. Sand Injection
   The machine uses compressed air or hydraulic force to shoot the sand-binder mixture into the core box at high pressure.
   The high pressure ensures the sand fills all cavities of the core box and compacts densely for strength and precision.
5. Heat-Curing Process
   Once the core box is filled, the heat from the preheated core box activates the binder, causing it to cure.
   The curing time depends on factors like core size, binder type, and temperature. It usually ranges from 20–60 seconds.
6. Core Ejection
   After curing, the core box is opened, and the solidified core is ejected either manually or automatically using ejector pins.
   The sand core is now rigid and ready for use in the casting process.
7. Post-Processing
   The core may undergo minor cleaning or finishing to remove excess sand, flashing, or imperfections.
   Some cores may also be coated with refractory coatings to improve surface quality and protect them during casting.


Advantages of the Hot Box Core Process

Fast Curing Time: The heat-activated binder cures quickly, improving productivity.
Dimensional Accuracy: Produces strong and precise cores suitable for complex casting geometries.
Wide Compatibility: Can be used with various sand types and binders.
Good Strength and Durability: Hot box cores are strong enough to withstand handling and the stresses of molten metal pouring.

Applications

Commonly used in automotive, aerospace, and industrial castings to produce complex cores for molds.
Suitable for high-volume production due to its speed and efficiency.

Key Features

1. Sand Injection System
   High-Pressure Shooting Mechanism: Ensures uniform filling of the core box, even for complex geometries, by shooting the sand-binder mixture at high pressure.
   Adjustable Pressure Settings: Allows control over the shooting pressure to suit different core sizes and complexities.
2. Core Box Heating System
   Preheated Core Box: Core boxes are typically heated using electric heaters, gas burners, or thermal oil systems to temperatures between 200–300°C.
   Temperature Control System: Precision heating ensures consistent curing of the binder for uniform core strength.
   Integrated Heating Zones: For large core boxes, multiple heating zones provide even temperature distribution.
3. Automated Operation
   PLC (Programmable Logic Controller): Automates the process, including sand shooting, curing, and core ejection, for consistency and reduced labor dependency.
   HMI (Human-Machine Interface): A user-friendly interface allows operators to set parameters like shooting time, curing time, and temperature easily.
   Cycle Automation: Ensures fast and repeatable production cycles.
4. Core Box Handling System
   Quick-Change Mechanism: Allows for easy switching of core boxes to minimize downtime between runs.
   Ejector System: Automatic ejection pins or systems safely and efficiently remove the cured core from the core box.
5. Multi-Station Options
   Single or Dual-Station Machines: Available to meet production needs, with dual-station machines allowing simultaneous production of multiple cores.
6. High-Quality Core Output
   Precise Dimensions: High pressure and compact sand ensure the production of dimensionally accurate cores.
   Good Surface Finish: Ensures better casting results and reduces post-casting machining.

Conclusion

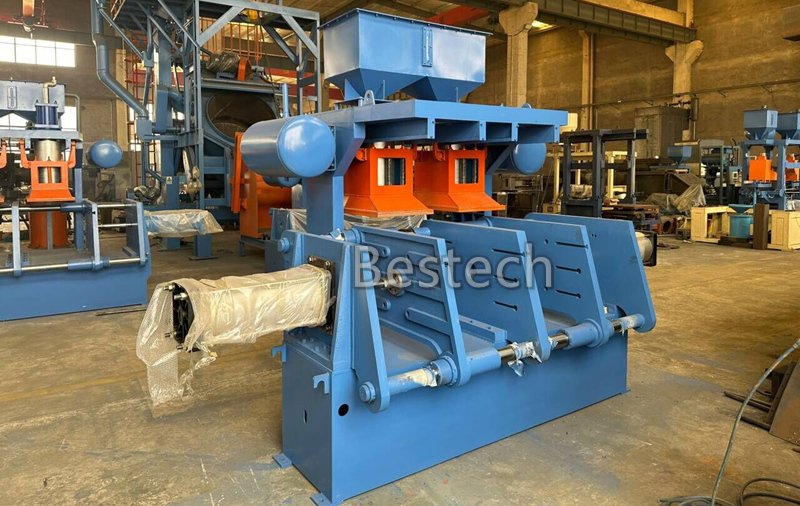

Hot box core shooting machine is a highly specialized piece of equipment in foundries designed to produce high-quality sand cores for metal casting. Its features are geared toward precision, speed, and efficiency, ensuring reliable production in demanding industrial settings.
