No-bake sand mixing machine is used in foundries to prepare chemically bonded sand for mold and core production. Unlike traditional green sand systems, no-bake sand uses a liquid binder and catalyst to harden at room temperature without the need for baking.

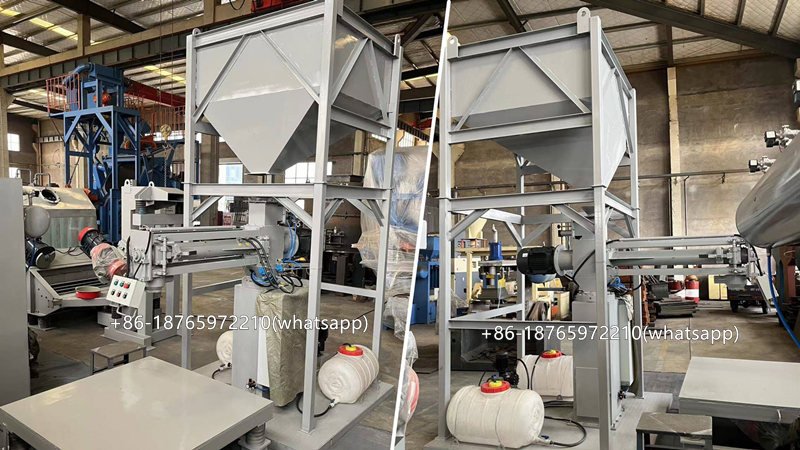

Nobake is a casting process that involves the use of chemical binders to bond the molding sand. Sand is conveyed to the mold fill station in preparation for filling of the mold. A mixer is used to blend the sand with the chemical binder and catalyst. As the sand exits the mixer, the binder begins the chemical process of hardening. This method of mold filling can be used for each half of the mold (cope and drag). Each mold half is then compacted to form a strong and dense mold.
How a No-Bake Sand Mixing Machine Works
Sand Feeding
Dry sand is loaded into the machine’s hopper, typically using a pneumatic or screw conveyor system.
The sand can be reclaimed from used molds or fresh silica sand.
Binder and Catalyst Injection
A precise amount of liquid binder (e.g., furan, phenolic urethane, or alkaline phenolic) is injected into the sand.
A catalyst/hardener is added to initiate curing. The ratio of binder and catalyst is controlled for consistent performance.
High-Speed Mixing
The sand, binder, and catalyst are blended in a continuous or batch mixer.
Mixers typically use a paddle, screw, or turbine mechanism to ensure a uniform mixture.
Discharge to Molding Station
The mixed sand is discharged onto a conveyor or directly into a mold box.
The no-bake sand remains flowable for a short working time before it starts hardening.
Curing and Mold Assembly
The sand hardens at room temperature without heating.
Once hardened, the mold or core is assembled, prepared for casting, and then poured with molten metal.
Sand Reclamation (Optional)
After casting, the spent sand can be reclaimed using mechanical or thermal methods for reuse.
Advantages of No-Bake Sand Mixing Machines
- Precise control over sand properties.
- Faster mold production compared to green sand.
- No need for baking or drying.
- Produces high-strength molds and cores.
Key Features of a No-Bake Sand Mixing Machine
A no-bake sand mixing machine is designed for efficient and consistent mixing of sand with chemical binders for foundry applications. Here are the essential features:
- High-Performance Mixing System
Continuous or Batch Mixing: Available in continuous or batch-type configurations depending on production needs.
Uniform Mixing: Uses high-speed blades, paddles, or turbine mixers to ensure even distribution of sand, binder, and catalyst. - Precise Binder and Catalyst Control
Automatic Dosing System: Ensures accurate and consistent binder-to-sand ratios.
Multiple Binder Compatibility: Works with furan, phenolic urethane, and alkaline phenolic binders.
Adjustable Flow Rate: Allows customization of binder addition based on mold requirements. - User-Friendly Control System
PLC-Based Controls: Enables automation and easy operation with touchscreen interfaces.
Pre-Set Mixing Programs: Stores different recipes for various sand compositions.
Real-Time Monitoring: Tracks binder flow, sand feed rate, and mixer performance. - Efficient Sand Handling
Sand Hopper with Level Sensors: Ensures continuous sand supply.
Dust Collection System: Minimizes airborne contaminants and improves workplace safety.
Integrated Conveyor or Discharge Chute: Delivers mixed sand directly to the mold station. - Sturdy and Durable Construction
Heavy-Duty Frame: Built for industrial environments.
Wear-Resistant Mixing Chamber: Lined with abrasion-resistant materials to extend lifespan.
Easy Maintenance Access: Simplifies cleaning and part replacement. - Optional Features for Enhanced Performance
Sand Pre-Heaters: Ensures consistent temperature and moisture content.
Automated Cleaning System: Reduces downtime by preventing material buildup.
Sand Reclamation System: Recycles used sand to lower material costs.
No-Bake Sand Mixing Machine Application
Foundries & Metal Casting
- Mold & Core Production: Used for making molds and cores for ferrous (iron, steel) and non-ferrous (aluminum, bronze) metal casting.
- Large & Complex Castings: Ideal for heavy machinery, automotive, aerospace, and industrial components.
- Precision Casting: Ensures strong, dimensionally accurate, and defect-free molds.
Environmental & Reclamation
- Waste Material Solidification: Mixing contaminated sand with binders for safe disposal.
- Recycled Sand Processing: Reconditioning used sand for reuse in foundry applications.
Defense & Aerospace
- Precision Component Casting: Used in producing aircraft engine parts and defense equipment.
- Heat-Resistant Molds: Making high-temperature-resistant sand molds for special alloys.
Conclusion
No-bake sand mixing machine is an industrial mixer used in foundries to prepare chemically bonded sand for mold and core making. Unlike traditional green sand systems, no-bake sand uses a liquid binder and catalyst that hardens at room temperature, eliminating the need for baking or heat curing.
