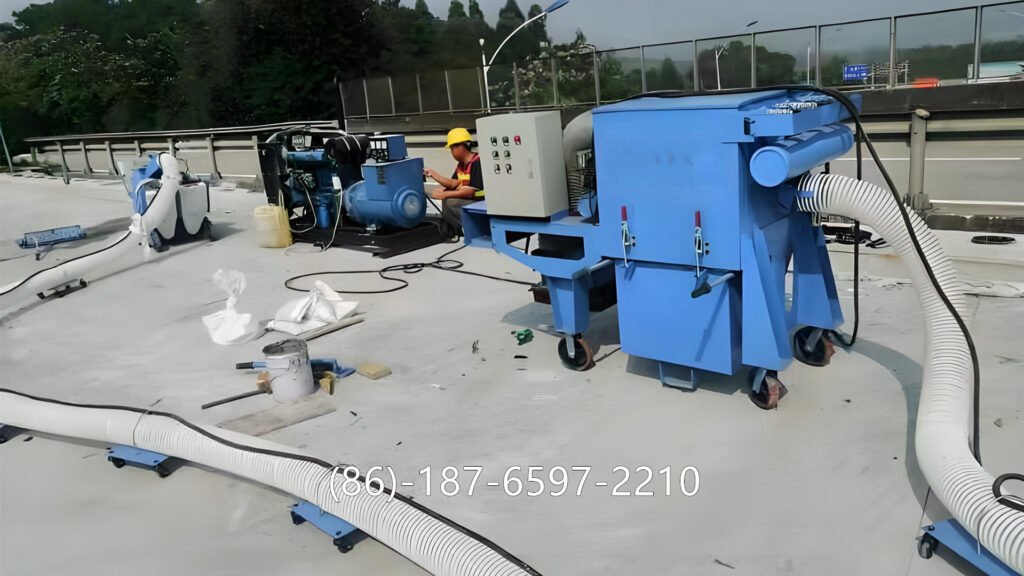

Floor shot blasting machine is a professional surface preparation equipment that uses high-speed steel shots to impact and clean the floor surface. It removes old coatings, laitance, rust, and contaminants while creating a uniform roughened profile for better adhesion of new coatings, epoxy, waterproof layers, or pavement materials.
Overview of Floor Shot Blasting Machine
In daily industrial construction, floor preparation, and steel surface treatment, the floor shot blasting machine has become one of the most reliable mechanical tools for delivering clean, uniform, and high-adhesion surfaces. From my experience working on site, this equipment is valued for its stable performance, controllable cleaning quality, and ability to work continuously under harsh conditions.
What Is Floor Shot Blasting Machine?
Floor shot blasting machine is a closed-loop mechanical surface cleaning device that uses high-speed steel shots to impact the surface, removing old coatings, laitance, rust, and contaminants. It forms a roughened profile suitable for new coatings or overlays.
All blasting media and dust are collected and recycled within the system, making the process dust-free, environmentally friendly, and highly efficient.
2. How the Machine Works
The floor shot blasting machine operates through the following process:
- Turbine Throws Steel Shots
The blasting wheel (turbine) accelerates steel shots and impacts them onto the floor at high speed. - Surface Impact & Removal
The impact breaks off weak concrete layers, rust, paint, epoxy coatings, and other contaminants. - Recovery System
Steel shots, crushed debris, and dust are sucked into the separator by a strong vacuum. - Separation and Recycling
Steel shots are separated from dust and fragments, then returned to the turbine for reuse. - Dust Collection
Fine dust is captured by a high-efficiency dust collector, ensuring clean and safe operation.
This continuous circulation system allows long-term stable blasting without frequent media replacement.
3. Key Components
Core parts during installation and maintenance:
- High-speed blasting turbine – the heart of the machine
- Seal and blast chamber – controls blasting direction and coverage
- Shot recovery and magnetic separator
- Industrial-grade dust collector
- Electric control system
- Travel motor & adjustable walking speed mechanism
Proper alignment and wear inspection of these components directly determine blasting uniformity.
4. Main Features and Advantages
A well-designed floor shot blasting machine offers:
● High Efficiency
Can treat 200–500 m² per hour depending on model and floor hardness.
● Consistent Surface Profile
Provides uniform roughness for coatings, epoxy, waterproofing, and adhesive bonding.
● Eco-Friendly and Dust-Free
Closed blasting process with powerful dust extraction meets strict environmental standards.
● Media Recycling System
Steel shots are reused multiple times, reducing operating cost.
● Adjustable Working Parameters
Engineers can tune shot flow, turbine speed, and walking speed to match different conditions.
● Wide Surface Compatibility
Concrete floors, asphalt, steel plate decks, ship decks, tank bottoms, and more.
5. Application Areas
Floor shot blasting machines are commonly used in:
- Warehouse, parking garage, and workshop floor preparation

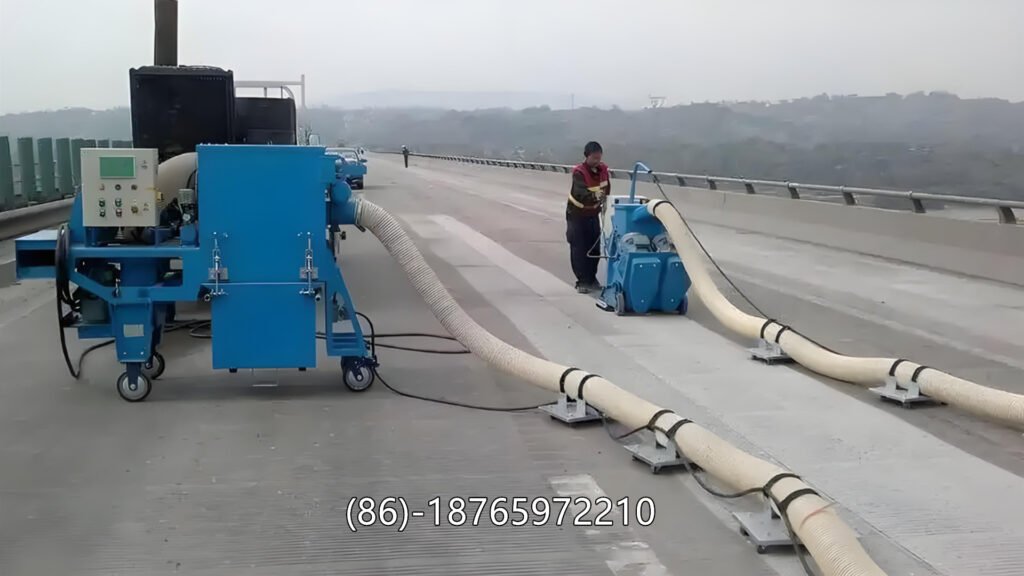

- Bridge deck cleaning and roughening
- Shipyard steel surface rust removal
- Steel tank bottom rust removal before coating
- Highway anti-skid treatment
- Wind turbine tower internal surface blasting
Wherever surface bonding strength or rust removal is required, shot blasting is often the first choice.
6. Engineer’s Practical Notes
Based on field operation experience:
- Always ensure dust collector filters are clean to maintain suction
- Check blade wear on the turbine regularly for consistent blasting pattern
- Avoid excessive walking speed; it leads to uneven surface texture
- Use proper shot size depending on concrete hardness
- Inspect all seals to prevent shot leakage on the floor
Good maintenance guarantees efficiency and extends the machine’s service life.
Why Floor Shot Blasting Machine Is Important
In our daily construction and industrial floor projects, the floor shot blasting machine plays a very important role. Many people only see the final coating or epoxy layer, but actually, the performance and lifetime of the whole floor system depend strongly on the surface preparation quality.
1. Provides Stable and Controlled Surface Roughness
For any coating, adhesive, or waterproof material, bonding strength is the key point. The shot blasting machine can create a uniform and controllable surface profile, which is very difficult to achieve by manual tools.
If the roughness is too small, the coating may peel off.
If too large, the surface becomes wasteful and uneven.
Shot blasting gives a standardized anchor pattern, ensuring stable bonding.
2. Removes Weak Layer and Contamination Completely
Many old floors have:
- laitance layer
- oil stains
- rust
- old coating or curing agent
These weak layers will reduce the coating life. The shot blasting machine uses high-speed steel shot impact to remove these weak layers thoroughly, making the floor foundation more solid. A solid base means long service life.
3. Improves Coating Durability and Service Life
In engineering projects, durability is always the top concern. From my experience on site, coating systems applied on properly shot-blasted surfaces usually have 2–3 times longer life compared to surfaces only cleaned by grinding. The surface profile produced by shot blasting allows coatings to penetrate deeper and lock firmly.
4. High Working Efficiency for Large Areas
For industrial floors, warehouses, parking lots, bridge decks, and tank bottoms, the construction area is always very big. The floor shot blasting machine provides:
- high efficiency (200–500 m²/hour)
- continuous working mode
- stable quality without human skill difference
This greatly reduces project time and labor cost, especially for large-scale maintenance projects.
5. Dust-Free and Environment Friendly
Compared with traditional open blasting, the floor shot blasting machine works in a closed circulation system.
Steel shots, dust, and debris are all recovered immediately by vacuum.
This makes the process almost dust-free, which is very important for indoor projects, workshops, food factories, and areas with strict environmental requirements.
6. Helps Achieve International Construction Standards
Many high-quality projects (epoxy floor, polyurethane coating, bridge anti-skid layer, steel deck coating) require specific surface cleanliness and roughness standards such as:
- ICRI CSP grades
- Sa2.5 rust removal level
The shot blasting machine is one of the few machines that can consistently meet these standards, which is why it is widely used in advanced engineering projects.
7. Reduces Long-Term Maintenance Cost
A well-prepared surface means fewer coating failures and fewer repairs in the future. Although shot blasting increases the initial preparation cost slightly, it reduces the total cost of ownership because the coating lasts much longer and requires fewer touch-ups.
Conclusion
Floor shot blasting machine is important not only because it cleans the floor, but because it ensures the entire coating system performs well for many years.
It provides:
- correct surface roughness
- strong bonding strength
- high efficiency
- environmental protection
- compliance with construction standards
In modern industrial flooring, the shot blasting machine is already a basic and essential equipment.
