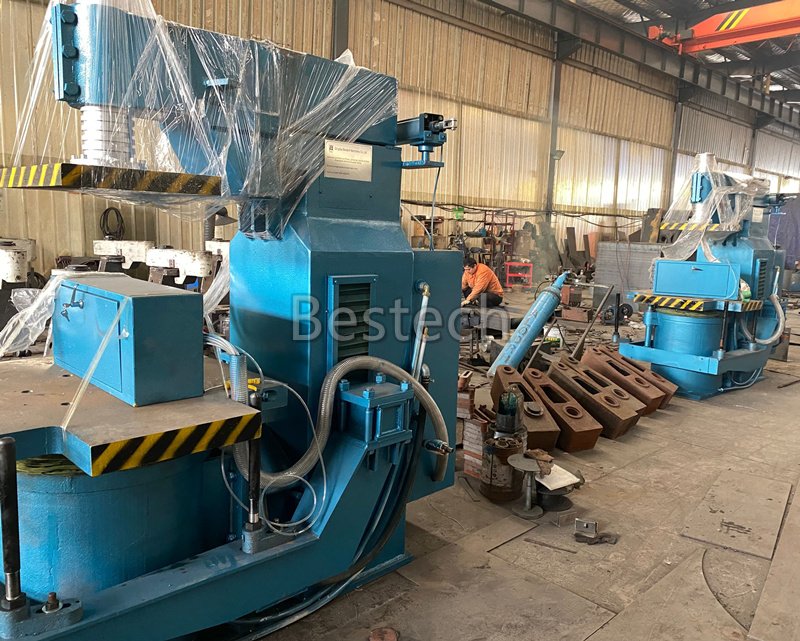

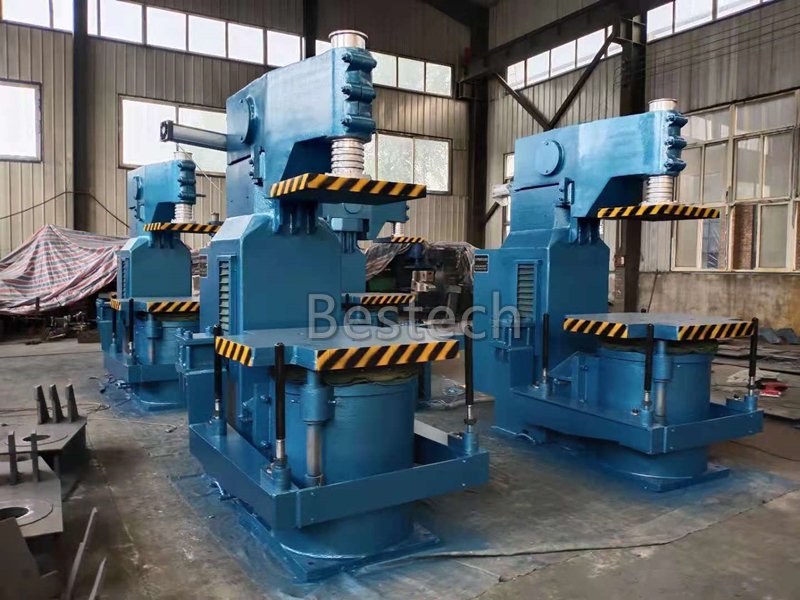

Jolt Squeeze Molding Machine
Jolt Squeeze Molding Machine Overview
Jolt Squeeze Molding Machine, also named Microseismic Compaction Moulding Machine.
Jolt Squeeze Molding Machine is suitable for mass production of single moulding plate or single moulding box of medium and small-sized castings, which can produce cope or drag.
Technical Specifications
type | worktable dimension(mm) | compressive stress(kgf) | compress process(mm) | molding process(mm) | free air consumption(m^3/box) | productivity(box/h) |
Z143W | 560×420 | 4000 | 100 | 160 | 0.25 | 40-60 |
Z144W | 560×465 | 4200 | 120 | 150 | 0.35 | 40-60 |
Z145W | 610×515 | 6300 | 160 | 200 | 0.40 | 40-60 |
Z145WB | 600×550 | 6300 | 200 | 200 | 0.40 | 40-60 |
Z146W | 700×550 | 7000 | 160 | 200 | 0.40 | 40-60 |
Z146WB | 700×550 | 7500 | 200 | 200 | 0.40 | 40-60 |
Z147 | 880*700 | 10000 | 250 | 250 | 0.6 | 40-60 |
Z148 | 1000*800 | 16000 | 350 | 350 | 0.6 | 40-60 |
Z149 | 1100*900 | 18000 | 350 | 350 | 0.6 | 25-40 |
Z1410 | 1400*1030 | 19000 | 350 | 350 | 0.6 | 25-40 |
Customization Options
We can design and manufacture various custom jolt squeeze molding machine based on your specific worktable requirements.
Certification
Bestech was established in 2006 with a registered capital of over 8.5 million USD and a total area of nearly 50,000 square meters. Our company has passed CE and ISO certifications. Thanks to our high-quality steel plate shot blasting machines, excellent customer service, and competitive prices, we have established a global sales network that reaches over 90 countries across five continents
Jolt Squeeze Molding Machine Feature
Pneumatic components have a long service life and are convenient for operation, improving production efficiency.
Optimized structure design. The square box frame structure significantly improves the rigidity of the machine body.
The micro-vibration compaction process can significantly improve compaction strength and surface roughness to stabilize product quality. The hardness of sand moulding can reach above HB90.
The shocking part is equipped with a buffer spring to effectively reduce the machine’s impact on the foundation.
The pattern stripping mechanism adopts the cylinder, the crank, the connecting rod, and the synchronous shaft to realize the synchronous lifting.
Fully adopt pneumatic parts to achieve the overall function of the control part, easy operation, and convenient maintenance.
Have Any Questions?
If you have any questions or need more information about our shot blasting machines or services, don’t hesitate to reach out！
Categories
Whatever your needs, we’re here to make it happen.
Jolt squeeze molding machine is suitable for batch production of small castings with single side plate and single box molding.
-It is fully buffered,high-frequency,low amplitude,pneumatic-type molding machine microseism compaction.
-It used a buffer spring,pneumaticmicroseism institutions can reduce the shock impact of the foundation.
-All parts of the aircraft fuselage steel,a substantial increase of steel. Chun-pressure aircraft body table,shock pistons,shock compaction iron piston, cylinder composed of compaction.
