Still struggling to produce high-quality castings?
In the competitive world of metal casting, achieving consistent quality, dimensional accuracy, and production efficiency is critical. One of the key factors influencing the quality of castings is the sand preparation process—specifically, the performance of the phenolic resin sand mixer. Choosing the right mixer can significantly enhance the core and mold properties, reduce defects, and improve overall casting quality.
Why Your Foundry Struggles with Casting Defects & How Phenolic Resin Sand Mixers Revolutionize Quality

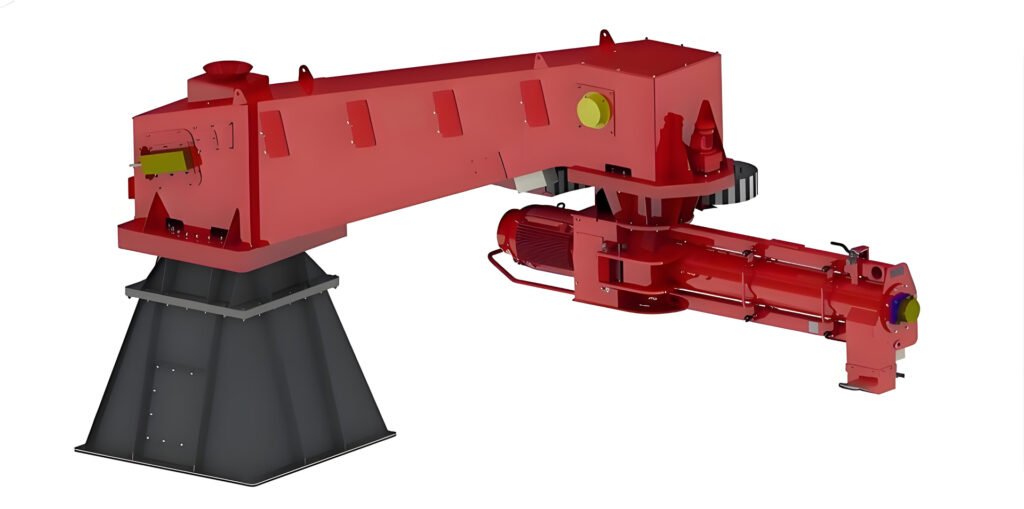

The phenolic resin sand mixing machine is a vital piece of equipment in modern foundry operations, specifically designed for the preparation of chemically bonded sand used in core making and mold production. Utilizing phenolic resin and hardeners, this machine ensures a uniform, high-performance mixture of resin-coated sand, which is essential for precision metal casting processes.
Precision Sand Preparation – The Untapped Lever for Zero-Defect Castings
1. The Core Challenge: Inconsistent Sand Mixtures = Costly Casting Failures
Traditional mixing methods often cause:
- Sand Inhomogeneity: Uneven resin distribution creates weak spots, leading to gas holes, sand inclusions, and shrinkage defects.
- Binder Inaccuracy: Manual binder dosing causes ±5–10% deviations, triggering brittleness or poor collapsibility.
- Thermal Instability: Conventional resins degrade at >300°C, causing veining and burn-on defects in ferrous castings.
Industry Insight: Scrap rates exceed 15% in sand casting due to mixture errors (ISO 2025 audit data).
2. Phenolic Resin Sand Mixers: Engineering Precision into Every Grain
2.1 Advanced Mixing Mechanism
- Dual-Arm Rotor Design: Forces sand-resin homogenization in ≤60 seconds (vs. 120+ sec manually), achieving 99.2% binder coverage.
- Electro-Diaphragm Pumps: Deliver resins/catalysts at ±2% dosing accuracy via programmable flow control.
2.2 Thermostable Phenolic Resin Advantage
- High-Temp Resistance: Withstands 600°C+ molten metal contact without burnout, preventing veining.
- Low-Gas Emission: <0.3% gas volume vs. 1.5% in urethanes, eliminating gas porosity.
2.3 Automated Quality Control
- Sand Proportion Regulator: Blends new/reclaimed sand at preset ratios (e.g., 70:30), preventing LOI-related defects.
- Real-Time Sensors: Monitor sand temperature, humidity, and compactability for immediate correction.
3. Operational Impact: Quantifying the ROI
| Metric | Traditional Mixing | Phenolic Resin Mixer | Improvement |
|---|---|---|---|
| Scrap Rate | 12–18% | 3–5% | ↓70% |
| Mold Strength | 1.2–1.5 MPa | 1.8–2.2 MPa | ↑45% |
| Energy Use/Tonne | 18–22 kWh | 10–12 kWh | ↓42% |
4. Implementation Guide: Maximizing Equipment Value
- Line Compatibility: Integrates with thermal reclaimers (e.g., 15t/h systems) to cut new sand costs by 60%.
- Maintenance Access: Open-cage rotors enable blade adjustments within 15 mins (vs. 4hrs downtime).
- Future-Proofing: IoT-ready for predictive maintenance (e.g., pump failure alerts via cloud analytics).
The Precision Edge in Competitive Casting
Phenolic resin sand mixers transform sand from a cost center to a quality asset—reducing scrap, energy use, and rework while enabling high-margin applications like automotive turbo housings and hydraulic valves. For ISO 50001 foundries, this isn’t an upgrade; it’s a necessity.
Choosing the Right Phenolic Resin Sand Mixer Can Improve the Quality of Castings
Why Phenolic Resin Sand Mixing Matters
Phenolic resin sand systems are widely used in cold-box and no-bake processes due to their excellent strength, fast curing, and superior surface finish. However, the full benefits of the resin system can only be realized when the sand, resin, and hardener are uniformly mixed. An improperly mixed batch may lead to:
- Weak or brittle cores
- Incomplete curing
- Gas-related casting defects
- Poor dimensional accuracy
The right mixing machine ensures optimal bonding, uniform distribution of resin, and consistent sand quality—all of which are essential for producing high-quality castings.
Factors to Consider When Choosing a Mixer
1. Type of Production Process
- Cold-box process: Requires fast and uniform mixing with controlled resin and catalyst injection.
- No-bake process: Benefits from batch mixing for more accurate resin-to-sand ratios.
2. Production Volume
- Low to Medium Volume: Batch-type mixers offer flexibility and control.
- High Volume or Continuous Production: Continuous mixers provide steady output with minimal interruption.
3. Mixing Efficiency
Look for features like:
- High-speed mixing blades
- Precision dosing pumps
- Adjustable mixing times
These ensure the resin and catalyst are evenly distributed throughout the sand.
4. Automation & Controls
Modern mixers come equipped with:
- PLC touch-screen interfaces
- Automated flow controls
- Real-time quality monitoring
These features improve repeatability, reduce human error, and maintain consistent product quality.
5. Maintenance & Durability
Choose a mixer designed for easy cleaning and maintenance, especially if changing resin types or sand grades frequently. Wear-resistant materials and modular construction also improve uptime and reduce operating costs.
Benefits of the Right Mixer
✅ Improved Casting Surface Finish
✅ Stronger Cores and Molds
✅ Reduced Gas Defects
✅ Faster Curing Times
✅ Higher Production Efficiency
✅ Lower Rejection Rates
Applications
Phenolic resin sand mixing machines are widely used in:
- Automotive Casting
- Aerospace Component Production
- Machinery and Industrial Equipment Manufacturing
- Precision Molding in Foundries
These machines are especially suitable for cold-box and no-bake processes, which demand high dimensional accuracy and excellent surface finish in cast products.
Conclusion
The phenolic resin sand mixing machine plays a crucial role in the foundry industry, enabling manufacturers to produce high-quality molds and cores with speed and precision. With advancements in automation and material handling, these machines are an indispensable asset for any modern casting facility focused on efficiency and excellence.
