Phenolic resin sand molding technology is widely adopted in the foundry industry, especially for the production of high-quality steel castings.
This process combines the benefits of chemical bonding, precision molding, and high surface finish, making it ideal for manufacturing complex and dimensionally accurate components.
The Development History of Phenolic Resin Sand Molding Lines
The evolution of molding technologies in metal casting has been driven by the industry’s constant demand for improved quality, efficiency, and environmental performance. Among the most significant advancements is the development of the phenolic resin sand molding line, which has revolutionized the production of complex and high-strength steel castings. This article explores the key milestones in the development of this important technology.
1. Origins of Resin-Bonded Sand Molding (1950s–1960s)
The concept of using chemical binders in sand molding began to take shape in the 1950s, as foundries sought alternatives to traditional green sand and shell molding. Early research led to the development of phenolic resins, derived from the reaction of phenol with formaldehyde. These thermosetting polymers offered strong bonding capabilities and the ability to cure at room temperature.
By the 1960s, the first no-bake (self-hardening) sand systems using phenolic resin and an acid catalyst were introduced. These systems allowed molds to harden without the need for external heat, offering better dimensional control and enabling the production of large, complex castings.
2. Industrial Adoption and Process Refinement (1970s–1980s)
During the 1970s and 1980s, phenolic resin sand molding gained widespread acceptance in the steel and iron foundry sectors. This period saw:
- Improved resin formulations for faster curing, better thermal resistance, and reduced gas generation.
- The development of automatic sand mixers for accurate and continuous mixing of sand, resin, and hardener.
- Introduction of mechanized molding lines and modular production systems, which increased productivity and repeatability.
These innovations laid the foundation for mass adoption of phenolic resin sand molding in industries such as automotive, heavy machinery, and power generation.
3. Advancements in Reclamation and Environmental Control (1990s–2000s)
As environmental concerns grew in the 1990s, foundries began investing in sand reclamation technologies. These systems allowed used sand to be cleaned and reused, significantly reducing waste and lowering operating costs. Key advancements included:
- Thermal reclamation to remove resin residues.
- Mechanical reclamation systems to reduce binder buildup.
- Better dust and odor control systems for safer working environments.
These developments made the phenolic resin process more sustainable and compliant with environmental regulations.
4. Digital Integration and Automation (2010s–Present)
In the 2010s, digital technologies began transforming foundry operations. Phenolic resin sand molding lines were enhanced with:
- PLC and SCADA controls for real-time monitoring of mixing ratios, mold curing times, and process temperatures.
- Robotic handling systems for mold assembly, pouring, and shakeout.
- Data-driven quality control systems to reduce defects and ensure consistency.
Smart manufacturing and Industry 4.0 principles are now increasingly applied to modern molding lines, making them more adaptive, efficient, and reliable.
Overview of the Phenolic Resin Sand Process
Phenolic resin sand molding involves the use of sand mixed with a phenolic resin binder and a hardener (typically an acid catalyst). The mixture is rapidly cured at room temperature to form strong molds. This “no-bake” or self-hardening process is preferred for large and medium-sized steel castings where durability and mold integrity are essential.

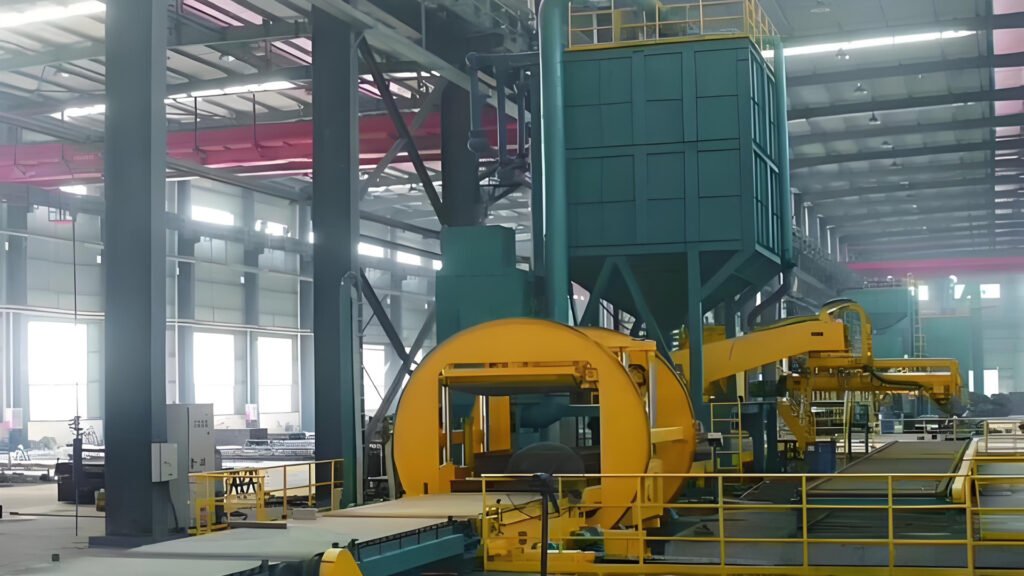

Key Components of the Molding Line
A complete phenolic resin sand molding line typically includes the following:
- Sand Mixing System
A continuous or batch mixer blends the raw sand with the phenolic resin and hardener in precise ratios. Accurate mixing ensures consistent mold strength and quality. - Mold Handling and Forming Equipment
This includes pattern plates, compaction systems, and molding stations. Molds are formed using patterns, and then cured to achieve the required hardness and dimensional stability. - Core Making Machines
Core boxes and core shooters are used to manufacture sand cores with phenolic resin. Cores are inserted into the mold cavity to form internal geometries of the casting. - Pouring Area
After mold assembly, molten steel is poured into the molds. The thermal stability of phenolic resin sand ensures minimal gas generation and excellent casting quality. - Shakeout and Sand Reclamation System
Once cooled, the castings are separated from the mold. The spent sand is then processed through reclamation equipment to remove binders and impurities, allowing for reuse in subsequent cycles.
Advantages of Using Phenolic Resin Sand
- High Dimensional Accuracy: Phenolic resin molds provide superior dimensional control, reducing machining time and waste.
- Good Surface Finish: The fine sand and uniform resin distribution yield smooth casting surfaces.
- Flexible Production: Ideal for both short-run and high-volume production of complex steel castings.
- Reduced Environmental Impact: Modern reclamation systems improve sustainability by recycling sand and minimizing binder waste.
Applications
Phenolic resin sand molding lines are commonly used in industries such as:
- Automotive: Engine blocks, crankshafts, and transmission housings.
- Heavy Equipment: Components for construction and mining machinery.
- Oil & Gas: Valve bodies, pumps, and fittings for harsh environments.
- Power Generation: Turbine components and pressure vessel parts.
Why Choose Phenolic Resin Sand Molding Line for Steel Castings Production
In the competitive and demanding field of steel casting production, selecting the right molding process is crucial for achieving high-quality results, operational efficiency, and cost control. Among the many molding methods available, the phenolic resin sand molding line stands out as a proven and reliable solution. Here’s why this technology is the preferred choice for many steel foundries around the world.
1. Excellent Mold Strength and Dimensional Accuracy
Phenolic resin binders provide high initial and final strength to the mold, allowing it to withstand the heavy loads and thermal stress of molten steel. This results in precise dimensional tolerances, minimal distortion, and a reduction in defects, such as misruns or sand inclusion.
2. Superior Surface Finish
The fine sand and controlled resin distribution deliver a smooth and clean surface finish on the final casting. This reduces the need for extensive post-casting machining or finishing work, saving time and cost in downstream processes.
3. Flexibility for Complex and Large Castings
The phenolic resin sand process is well-suited for complex geometries, large components, and low to medium-volume production. Unlike some other molding methods, it allows for easy adaptation to different casting designs without extensive equipment changes.
4. Efficient Production with Short Curing Time
Phenolic resin is a fast-curing material that hardens at room temperature, enabling shorter mold preparation times and faster cycle times. This efficiency makes the process highly competitive for both custom and repeat production runs.
5. Environmentally Friendly and Sustainable
Modern phenolic resin sand systems often include advanced sand reclamation units that reduce sand and binder waste. Reclaimed sand can be reused in the process, significantly reducing environmental impact and material costs.
6. Cost-Effective for High-Quality Output
While the initial investment in a phenolic resin sand molding line may be higher than traditional methods, the long-term cost savings from improved yield rates, reduced scrap, faster turnaround, and lower finishing costs make it a highly cost-effective solution.
7. Proven Technology Across Industries
Phenolic resin sand molding lines are used in a wide range of industries, including:
- Automotive – For heavy-duty engine parts and transmission components
- Construction and Mining – For large steel components like gears and housings
- Energy – In turbines, valves, and pressure vessels
- Marine and Rail – For robust, corrosion-resistant castings
Choosing a phenolic resin sand molding line for steel castings production means choosing precision, reliability, and efficiency. Whether you are producing small batches or large components, this technology ensures consistent quality and performance that meets the demands of modern manufacturing.
If your foundry is aiming to optimize production while maintaining high standards of quality, the phenolic resin sand molding process is a smart investment for the future.
Conclusion
The phenolic resin sand molding line is a reliable and efficient solution for steel castings production. It combines technological precision with cost-effectiveness, ensuring consistent quality across a range of industrial applications. As the foundry industry continues to evolve, this molding method remains a cornerstone of high-performance steel casting operations.
