Why Every Modern Foundry Needs Efficient Resin Sand Crushing

Today, foundries are under increasing pressure to:

• Reduce production costs
• Improve casting quality
• Lower carbon emissions
• Minimize industrial waste
• Increase raw material utilization

However, many plants still dispose of thousands of tons of used resin bonded sand every year.

The reason is simple.

After shakeout, resin bonded sand forms hard lumps that cannot be reused directly.

Without proper crushing, downstream reclamation equipment cannot efficiently remove residual resin, resulting in:

❌ High new sand consumption

❌ Expensive resin binder usage

❌ Low reclamation efficiency

❌ Increased landfill costs

❌ Higher production expenses

A Powerful Resin Sand Crushing Machine is the first and most important step in an efficient Eco-Friendly Foundry Sand Reclamation System.

What Is a Resin Sand Crushing Machine?

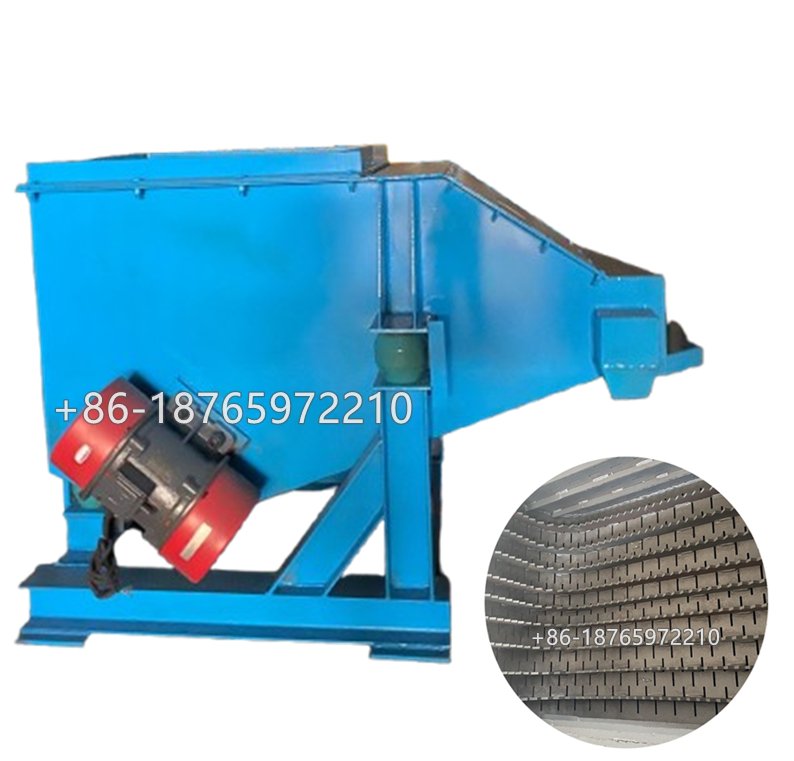

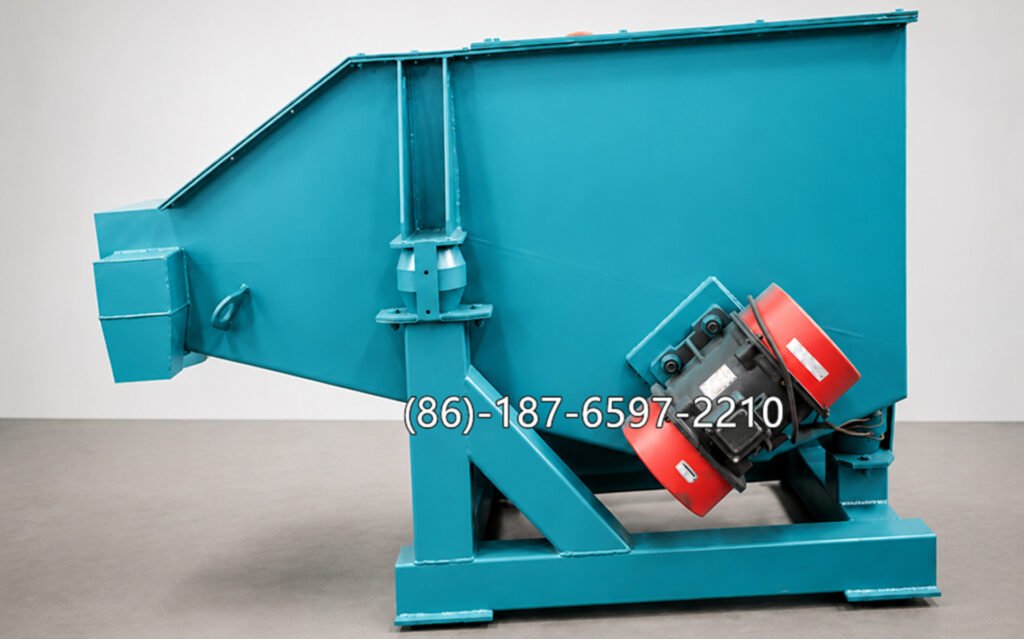

Resin Sand Crushing Machine is specialized equipment designed to crush hardened resin bonded sand lumps into uniformly sized particles before mechanical or thermal reclamation.

Unlike conventional crushers, this machine is specifically engineered for foundry applications.

Its objectives are to:

• Break hardened resin bridges
• Preserve valuable silica sand grains
• Produce uniform particle size
• Improve downstream reclamation efficiency
• Reduce equipment wear

It serves as the foundation of every high-performance resin sand recycling plant.

Why Crushing Determines the Success of Sand Reclamation

Many foundries invest in advanced reclamation equipment but overlook the importance of pre-crushing.

If oversized sand lumps enter the reclamation process, several problems occur:

Low Binder Removal Efficiency

Large agglomerates prevent complete resin removal.

High Energy Consumption

Mechanical reclaimers work harder and consume more electricity.

Excessive Equipment Wear

Oversized material increases wear on reclaimers, conveyors, and screening systems.

Poor Reclaimed Sand Quality

Inconsistent particle size negatively affects:

• Mold strength
• Core strength
• Surface finish
• Casting accuracy

Efficient crushing eliminates these problems before reclamation begins.

Working Principle of the Resin Sand Crushing Machine

Step 1 — Feeding Used Resin Sand

Waste resin bonded sand enters the crusher from:

• Shakeout machines
• Vibratory conveyors
• Sand collection hoppers
• Return sand systems

Step 2 — Controlled Crushing

High-strength crushing rollers gradually break hardened sand blocks.

The crushing force is carefully controlled to:

• Destroy resin bridges
• Maintain silica grain integrity
• Reduce unnecessary fines

Step 3 — Particle Size Classification

Only particles meeting the required size pass through the crushing zone.

Oversized material continues crushing until specification is achieved.

Step 4 — Automatic Material Transfer

Processed sand is conveyed to:

• Mechanical reclaimers
• Fine hexagonal screens
• Fluidized cooling beds
• Dust collection systems

Step 5 — Complete Sand Recycling

The reclaimed sand proceeds through:

• Mechanical scrubbing
• Dust removal
• Cooling
• Screening
• Storage

before returning to molding production.

Technical Specifications

Actual recovery depends on binder type, sand condition, and the complete reclamation process.

Key Advantages of Our Resin Sand Crushing Machine

1. Maximize Resin Sand Recovery

Efficient crushing prepares sand for high-performance reclamation.

Benefits include:

✔ Higher reclaimed sand utilization

✔ Reduced new sand purchases

✔ Lower raw material costs

Many customers recover 90–98% of usable sand when integrated into a complete reclamation line.

2. Improve Reclaimed Sand Quality

Uniform particle size improves:

• Sand fluidity
• Mold strength
• Core strength
• Surface finish

The result is more stable casting quality and fewer production defects.

3. Lower Operating Costs

Higher reclaimed sand usage means:

• Reduced silica sand purchases
• Lower resin consumption
• Lower waste disposal fees
• Reduced transportation costs

This shortens equipment payback time.

4. Protect Downstream Equipment

Uniform feed material reduces wear on:

• Mechanical reclaimers
• Conveyors
• Cooling systems
• Screening machines

Maintenance costs decrease while equipment life increases.

5. Support Green Manufacturing

Efficient sand recycling helps foundries:

• Reduce landfill waste
• Lower CO₂ emissions
• Improve resource utilization
• Meet environmental regulations

An eco-friendly reclamation system also enhances a company’s sustainability profile.

Typical Applications

Our Resin Sand Crushing Machine is widely used in:

Steel Casting Foundries

Recovering resin bonded sand from heavy castings.

Iron Foundries

Processing furan and no-bake sand.

Valve & Pump Manufacturers

Producing stable reclaimed sand for precision molds.

Wind Energy Casting Plants

Supporting continuous recycling of large-volume molding sand.

Heavy Equipment Foundries

Improving reclamation efficiency while reducing operating costs.

Resin Sand Crushing Machine vs Conventional Crusher

Common Foundry Problems Solved

Problem: Large Hardened Sand Blocks

Solution: Efficient crushing creates ideal feed for reclamation equipment.

Problem: High New Sand Consumption

Solution: Better reclaim quality increases sand reuse.

Problem: High Resin Costs

Solution: Stable reclaimed sand reduces fresh binder requirements.

Problem: Frequent Equipment Failures

Solution: Uniform material flow protects downstream equipment.

Why Choose Our Resin Sand Crushing Machine?

Heavy-Duty Industrial Construction

Designed for continuous 24-hour operation.

High Wear-Resistant Components

Critical parts are manufactured from:

• High-chromium alloy
• Heat-treated steel
• Replaceable wear liners

ensuring long service life.

Energy-Efficient Crushing Technology

Optimized crushing geometry delivers:

• Lower electricity consumption
• Reduced dust generation
• Stable operating performance

Intelligent PLC Control

Optional features include:

• Automatic overload protection
• Touchscreen operation
• Production monitoring
• Remote diagnostics
• Fault alarms

Customized Turnkey Engineering

We provide complete engineering services, including:

• Process design
• Equipment selection
• Capacity calculation
• Plant layout
• Installation guidance
• Commissioning support
• Operator training

Frequently Asked Questions

What types of resin bonded sand can this machine process?

Suitable for:

• Furan resin sand
• Phenolic resin sand
• Alkaline phenolic sand
• No-bake resin bonded sand

Can it be integrated into existing reclamation systems?

Yes.

The machine easily connects with:

• Shakeout machines
• Mechanical reclaimers
• Fluidized cooling beds
• Fine screening systems
• Dust collectors

Will crushing damage the silica sand?

No.

The crushing system is specifically engineered to break resin bridges while preserving the original silica sand grains.

What is the expected sand recovery rate?

When combined with a complete reclamation line, many foundries achieve:

90–98% reusable sand recovery.

Actual results depend on resin type, process settings, and operating conditions.

Build a More Sustainable and Profitable Foundry

Every ton of reclaimed resin sand creates measurable savings.

By installing a Powerful Resin Sand Crushing Machine, foundries can:

• Increase reclaimed sand utilization
• Reduce production costs
• Improve casting consistency
• Extend equipment life
• Lower environmental impact
• Strengthen long-term competitiveness

The result is a smarter, cleaner, and more profitable foundry operation.

Request Your Customized Resin Sand Reclamation Solution

Looking for a reliable Powerful Resin Sand Crushing Machine for an Eco-Friendly Foundry Sand Reclamation System?

Our engineering team provides:

Free Technical Consultation

✔ Resin sand analysis

✔ Equipment selection

✔ Capacity calculation

✔ Plant layout optimization

✔ ROI evaluation

✔ Energy consumption analysis

Contact Us Today For:

✔ Detailed Technical Proposal

✔ Competitive Factory Quotation

✔ Complete Resin Sand Recycling Line Design

✔ Turnkey Engineering Solution

✔ Installation & Commissioning Support

Simply send us:

• Annual casting production
• Resin binder type
• Existing reclamation process
• Required processing capacity
• Workshop layout

Our engineers will prepare a customized solution and quotation within 24 hours.
