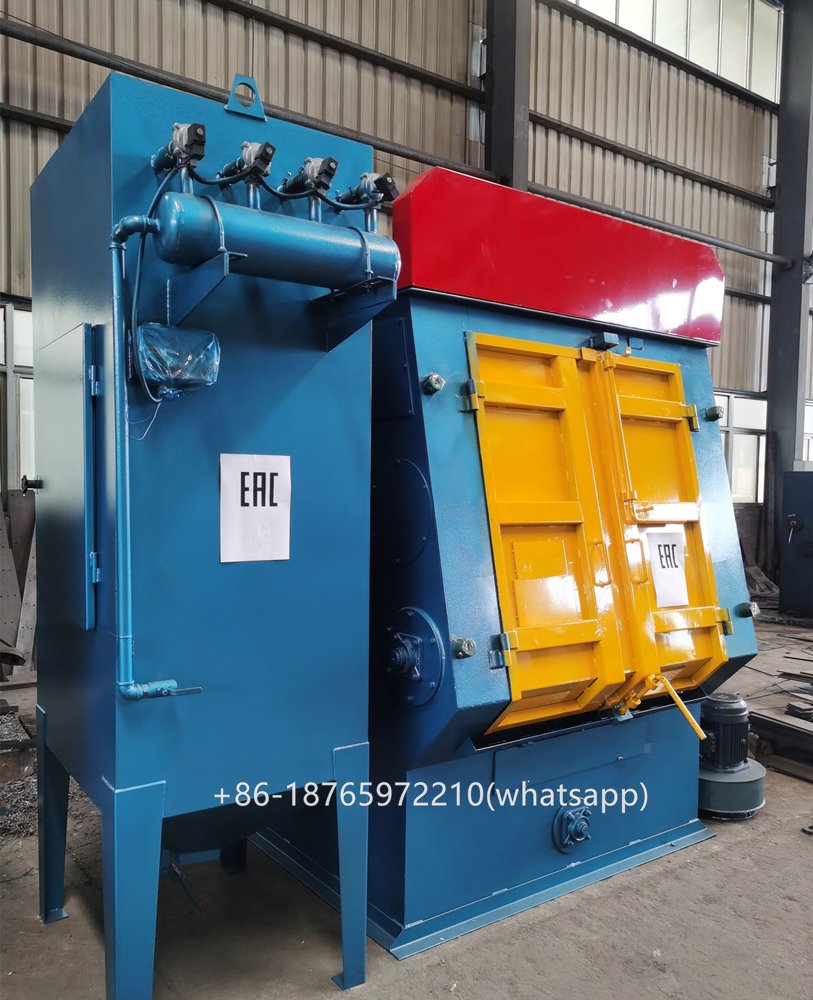

Q3210 Tumble Belt Shot Blasting Machine

Q3210 Tumble Belt Shot Blasting Machine Overview

Tumble Shot Blasting Machine is mainly suitable for blasting, rust removal, oxide skin removal, and surface strengthening in many varieties, large and medium-sized batch production of medium and small-sized castings, forgings, stamping parts, and heat-treated pieces, especially for surface cleaning and strengthening of components with no collisions. We offer various types and non-standard solutions, including Tumble Rubber Belt Shot Blasting Machine, Tumble Steel Belt Shot Blasting Machine, and Tumbling Belt Shot Blasting Machine.

Technical Specifications

Item	units	Q3210
productivity	t/h	1.5-2.5
feeding amount	kg	600
max.weight of single piece	kg	30
diameter of end disk	mm	1000
Volume	m3	0.3
shot-blasting capacity	kg/min	250
air volume for dedusting	m3/h	5000
power consumption	kw	24.3

Q3210 Tumble Belt Shot Blasting Machine Features

This series is used for surface cleaning, rust removing, surface intensification of each kind of middle and small scale casting, forging and job. It is suitable for different production scale and can be stand-alone. Many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines.

It has the advantages of no pit, compact structure, small energy consumption and high efficiency.

Have Any Questions?

If you have any questions or need more information about our shot blasting machines or services, don’t hesitate to reach out！

Whatever your needs, we’re here to make it happen.

Tumble Shot Blasting Machine Advantages

1. Improve the quality of the workpiece:

By performing cleaning and surface treatment, the tumble belt shot blasting machine can improve the quality and appearance of the workpiece. It removes undesirable surface substances and eliminates defects and imperfections, which is important for enhancing the appearance of the product’s attractiveness, quality standards and customer satisfaction.

2. Extend the life of the workpiece:

By removing the oxide layer, rust and other undesirable substances, tumble belt shot blasting machine can improve the corrosion and wear resistance of the workpiece. It can reduce the risk of corrosion, fatigue and damage to the workpiece, and extend the service life of the workpiece.

3. Multi-functional applications:

Tumble belt shot blasting machine is suitable for the treatment of various sizes and shapes of workpieces. It has greater flexibility and can handle workpieces from different industries, including large steel structures, automotive parts, aircraft parts, etc.
