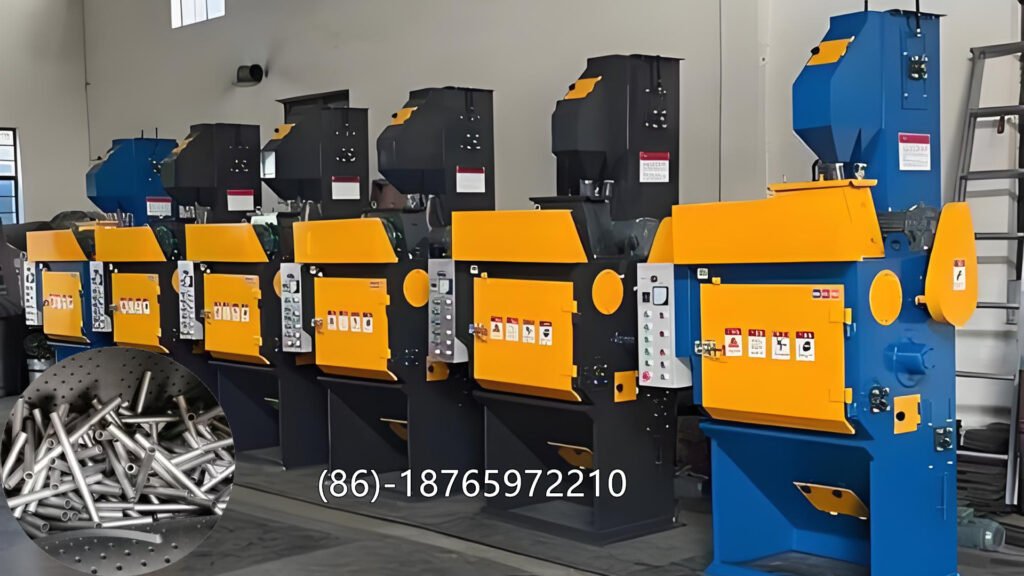

Tumble Shot Blasting Machine Introduction:
In the demanding world of metal finishing, achieving consistent, thorough surface preparation on small, bulk components is crucial. The Q324 Tumble Shot Blasting Machine stands as a specialized solution designed precisely for this challenge. Offering efficient cleaning, descaling, deburring, and surface texturing, it excels in handling batches of small castings, forgings, stampings, and other similar parts.
Core Function and Principle:
The Q324 operates on the proven tumble blast principle. Parts are loaded into a rotating drum or basket (turntable) housed within an enclosed blast chamber. As the drum rotates, parts are continuously tumbled and agitated. Simultaneously, high-velocity abrasive media (typically steel shot or grit) is propelled onto the parts by one or more high-powered blast wheels. This dynamic tumbling action ensures every surface of every part is exposed to the abrasive stream multiple times, guaranteeing uniform treatment without the need for manual reorientation.
Key Components & Features:
- Robust Enclosed Cabinet: Constructed from heavy-duty steel plates (often wear-resistant linings internally) to contain the blast media, protect the environment, and ensure operator safety.
- Rotating Tumbling Turntable/Drum: The heart of the machine. Its rotation speed is typically adjustable to control the intensity of tumbling and exposure time for different part geometries and finishing requirements.
- High-Efficiency Blast Wheel(s): The Q324 usually features one or two blast wheels strategically positioned to deliver a dense, high-energy abrasive curtain directly onto the cascading parts within the drum. Components like the impeller, blades, and control cage are wear-resistant.
- Abrasive Recycling System: A closed-loop system comprising an elevator and air-wash separator efficiently recovers usable abrasive from the spent media and dust, cleans it, and returns it to the blast wheel(s) hopper. This minimizes media consumption and operating costs.
- Dust Collector: An integral cyclone or cartridge filter dust collector captures fine dust and particulate generated during blasting, maintaining a clean work environment and meeting environmental regulations.
- Easy Loading/Unloading: Large access doors facilitate quick loading of parts (often in baskets or directly) and easy unloading of the finished batch. Simple operator controls manage the cycle.
- Durability & Reliability: Designed for continuous industrial operation with robust construction and easily replaceable wear parts.
Typical Applications:
The Q324 Tumble Shot Blaster is ideal for:
- Cleaning sand, scale, rust, and oxide layers from small iron, steel, aluminum, and non-ferrous castings and forgings.
- Deburring and radiusing edges of stampings, investment castings, and machined parts.
- Surface preparation (peening, texturing) before painting, coating, plating, or bonding.
- Enhancing the cosmetic appearance of parts.
- Removing light contaminants from heat-treated parts.
Advantages of the Q324 Design:
- Uniform Coverage: Tumbling action ensures all surfaces, including complex geometries and internal passages (within reason), are treated consistently.
- High Efficiency: Processes large batches of small parts simultaneously, significantly reducing labor compared to manual methods or single-part blasting.
- Gentle Handling: The controlled tumbling is suitable for parts that might be damaged by aggressive impingement or shot peening equipment.
- Automation Friendly: Easily integrated into production lines for automatic loading/unloading.
- Cost-Effective: Closed-loop abrasive recycling minimizes media waste.
- Operator Safety: Enclosed operation and effective dust collection protect workers.
Key Considerations for Selecting a Tumble Shot Blasting Machine
1. Part Characteristics
- Size & Shape: Ensure the machine’s drum/turntable accommodates your parts’ dimensions and geometry. Complex parts may need adjustable tumbling speeds.
- Material: Hardness and fragility dictate abrasive type (steel shot, glass beads, etc.) and blast pressure settings.
2. Machine Capacity & Throughput
- Batch Volume: Evaluate drum capacity (e.g., Q324 models typically handle 50–200 kg per cycle) against production demands.
- Cycle Time: Faster rotation speeds and multiple blast wheels reduce processing time for high-volume workflows.
3. Abrasive Media System
- Recycling Efficiency: Opt for machines with high-performance separators to minimize media waste and downtime.
- Media Compatibility: Verify the system supports your preferred abrasives (e.g., S230 steel grit for aggressive descaling).
4. Durability & Maintenance
- Wear Protection: Look for chromium-lined blast wheels, replaceable drum liners, and easy-access service points.
- Dust Management: HEPA-filter dust collectors ensure compliance with OSHA/EU workplace safety standards.
5. Automation & Integration
- Loading/Unloading: Automated conveyors or robotic arms enhance efficiency for inline production systems.
- Controls: User-friendly PLC interfaces with preset programs for different part types.
6. Cost Analysis
- Upfront vs. Operational Costs: Energy-efficient motors and low-media-consumption designs reduce long-term expenses.
- Vendor Support: Warranty coverage and spare part availability are critical for minimizing downtime.
7. Environmental & Safety Compliance
- Noise Levels: Enclosed cabinets with sound dampening (e.g., <75 dB) are ideal for indoor facilities.
- Emissions: Machines with closed-loop abrasive recycling and VOC-free operations align with EPA guidelines.
A well-chosen tumble shot blaster balances part requirements, productivity goals, and lifecycle costs. Prioritize vendors offering customization and post-purchase technical support to maximize ROI.
Why Choose a Tumble Shot Blasting Machine? The Industrial Advantages
In metal finishing and surface preparation, tumble shot blasting machines stand out for efficiency, consistency, and cost savings. Here’s why they’re a strategic investment for high-volume small-part processing:
✅ 1. Unmatched Efficiency for Batch Processing
- High Throughput: Process hundreds of small parts (e.g., fasteners, gears, valves) per cycle—up to 10x faster than manual blasting.
- Labor Reduction: Eliminate hand-finishing; one operator can manage multiple machines.
✅ 2. 100% Uniform Surface Coverage
- Tumbling + Blasting Synergy: As parts rotate in the drum, abrasive media hits every surface, edge, and cavity—even complex geometries.
- Consistent Results: Ideal for critical applications like automotive or aerospace components requiring uniform anchor profiles (Sa 2.5–3).
✅ 3. Gentle Yet Effective Treatment
- Controlled Impact: Tumbling prevents part-on-part damage (vs. vibratory bowls).
- Adaptable Intensity: Adjust drum speed/blast pressure for delicate (aluminum castings) or rugged (forgings) parts.
✅ 4. Dramatic Cost Savings
| Cost Factor | Tumble Blasting Advantage |
|---|---|
| Media Consumption | Closed-loop recycling cuts waste by 90%+ |
| Labor | 80% reduction vs. manual methods |
| Energy | Efficient motors vs. high-power vibratory systems |
✅ 5. Seamless Integration & Automation
- Inline Production: Auto-load/unload systems sync with conveyors or robotics.
- Smart Controls: PLC interfaces store recipes for different part types (1-touch changeovers).
✅ 6. Versatility Across Industries
- Foundries: Remove sand/scale from castings.
- Automotive: Deburr transmission parts.
- Medical: Polish surgical implants (with stainless steel media).
- Hardware: Clean bolts, hinges, or connectors.
⚠️ When Is Tumble Blasting Not Ideal?
- Oversized Parts: Components larger than the drum’s capacity (typically >300mm).
- Extreme Delicacy: Thin-walled or brittle parts may require gentler methods.
- Low-Volume Production: ROI diminishes for small batches.
Conclusion:
The Q324 Tumble Shot Blasting Machine remains a workhorse in industries requiring efficient, high-quality surface treatment of small bulk components. Its combination of uniform results, batch processing capability, robust construction, and operational efficiency makes it an indispensable tool for foundries, forging houses, metal fabricators, and any facility needing reliable surface preparation for large quantities of small parts. By ensuring consistent cleanliness, texture, and readiness for downstream processes, the Q324 directly contributes to enhanced product quality and manufacturing productivity.
