Why Are More Foundries Choosing the Q324 Tumble Shot Blasting Machine?

Surface cleaning is one of the most critical processes in modern foundry production.

After casting, forging, or heat treatment, workpieces are often covered with:

• Sand residue
• Oxide scale
• Rust
• Flash
• Burrs
• Heat-treatment discoloration

Traditional cleaning methods such as grinding or manual wire brushing are slow, labor-intensive, and inconsistent.

The Q324 Tumble Shot Blasting Machine offers a faster, more efficient, and automated solution for batch cleaning of small to medium-sized metal parts.

It improves surface quality, increases production efficiency, and significantly reduces labor costs.

What Is a Q324 Tumble Shot Blasting Machine?

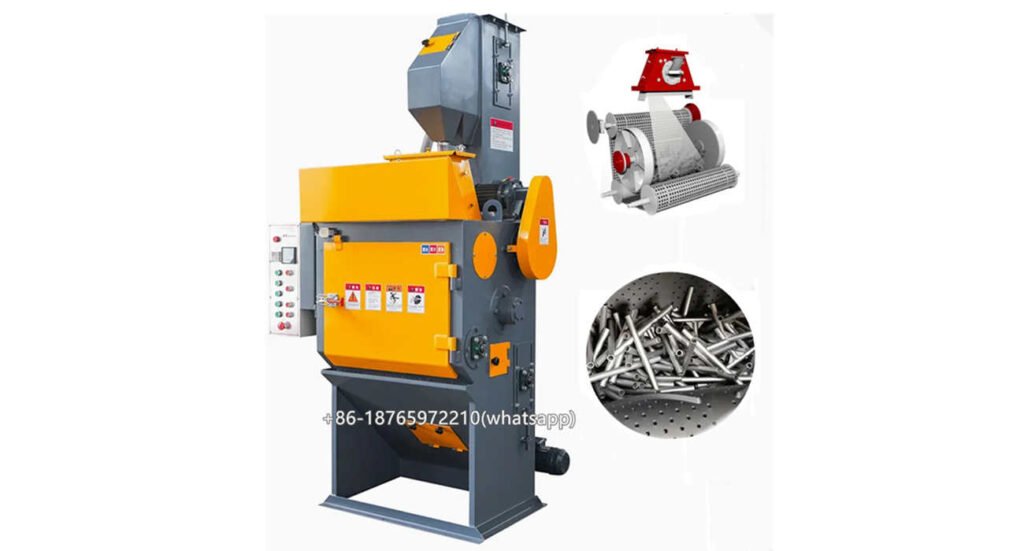

Q324 Tumble Shot Blasting Machine (also known as a Tumblast Shot Blasting Machine or Tumble Belt Shot Blasting Machine) is a batch-type surface treatment system.

A durable rubber or steel belt continuously tumbles workpieces while high-speed blast wheels project steel shot from multiple angles.

This tumbling action ensures that every surface is uniformly cleaned without requiring manual repositioning.

The machine is ideal for:

• Iron castings
• Steel castings
• Forged parts
• Aluminum castings
• Hardware components
• Automotive parts
• Valve bodies
• Pump housings
• Gears
• Pipe fittings

How Does the Q324 Tumble Shot Blasting Machine Work?

Step 1 – Automatic Loading

Workpieces are loaded into the tumble belt chamber manually or by an optional automatic loading system.

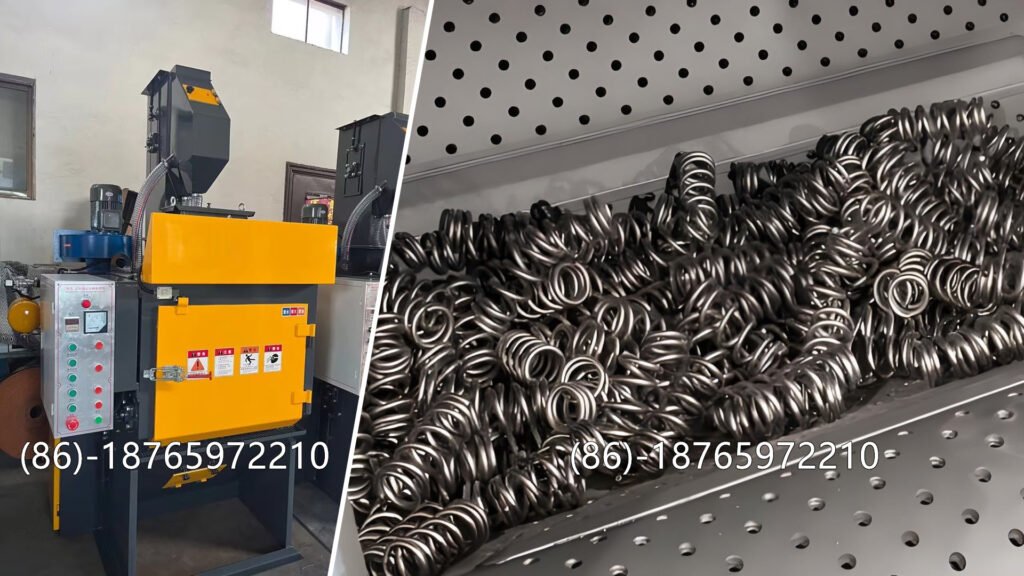

Step 2 – Continuous Tumbling

The rubber belt rotates continuously, allowing parts to tumble gently and expose every surface.

This ensures uniform shot coverage while preventing dead zones.

Step 3 – High-Speed Shot Blasting

High-efficiency blast wheels accelerate steel shot to high velocity, removing:

• Rust
• Scale
• Foundry sand
• Burrs
• Oxidation
• Surface contaminants

At the same time, the process improves surface roughness for coating, painting, galvanizing, or further machining.

Step 4 – Abrasive Recycling

Steel shot is recovered automatically through:

• Screw conveyor
• Bucket elevator
• Air separator

Reusable abrasive is returned to the blast wheels, minimizing abrasive consumption.

Step 5 – Dust Collection

An integrated pulse-jet dust collector removes airborne dust, maintaining a cleaner workshop and extending equipment life.

Technical Specifications

Technical specifications can be customized according to production requirements.

Key Advantages of the Q324 Tumble Shot Blasting Machine

1. Uniform 360° Cleaning Performance

Continuous tumbling ensures every workpiece surface is evenly exposed to the abrasive stream.

This eliminates blind spots and delivers consistent cleaning quality.

2. High Production Efficiency

Compared with manual cleaning, the Q324 machine can improve productivity by several times while reducing labor requirements.

3. Excellent Surface Preparation

The machine effectively removes:

• Rust
• Oxide scale
• Foundry sand
• Welding slag
• Surface contaminants

It also creates an ideal anchor profile for painting, powder coating, thermal spraying, and galvanizing.

4. Low Operating Cost

The closed-loop abrasive recycling system reduces:

• Steel shot consumption
• Maintenance costs
• Operating expenses

while improving overall efficiency.

5. Compact and Easy to Operate

The Q324 model features a compact footprint, making it suitable for small and medium-sized foundries as well as component manufacturers with limited workshop space.

Typical Applications

The Q324 Tumble Shot Blasting Machine is widely used in:

Iron and Steel Foundries

Cleaning cast iron and steel castings after shakeout.

Automotive Component Manufacturers

Surface preparation for gears, brackets, hubs, and suspension parts.

Valve and Pump Manufacturers

Removing sand and scale from valve bodies, pump housings, and precision castings.

Fastener and Hardware Manufacturers

Batch cleaning of bolts, nuts, fittings, and small forged components.

Heat Treatment Workshops

Removing oxide scale after heat treatment and preparing surfaces for machining or coating.

Q324 vs Traditional Manual Cleaning

Common Production Challenges Solved

Heavy Sand Adhesion

Solution: High-velocity steel shot removes adhered molding sand quickly and uniformly.

Rust and Oxide Scale

Solution: Efficient shot blasting restores clean metal surfaces without damaging the workpiece.

Inconsistent Surface Quality

Solution: Continuous tumbling ensures every part receives uniform exposure.

High Manual Labor Costs

Solution: Automated batch processing significantly reduces manual cleaning operations.

Why Choose Our Q324 Tumble Shot Blasting Machine?

High-Performance Blast Wheel

Designed for:

• High abrasive velocity
• Stable performance
• Long service life
• Lower energy consumption

Durable Wear-Resistant Components

Critical wear parts include:

• High-chromium liners
• Manganese steel protection plates
• Precision-machined blast wheel components

ensuring reliable long-term operation.

Intelligent Control System

Optional PLC control supports:

• Automatic blasting cycles
• Production monitoring
• Fault diagnosis
• Maintenance reminders
• Remote troubleshooting

Customized Manufacturing

We offer tailored solutions based on:

• Part size
• Batch weight
• Daily production volume
• Abrasive type
• Plant layout
• Automation requirements

Frequently Asked Questions

Which materials can the Q324 process?

Suitable for:

• Cast iron
• Cast steel
• Carbon steel
• Stainless steel
• Aluminum alloy
• Copper alloy
• Forged components
• Heat-treated parts

What abrasive media can be used?

Compatible with:

• Steel shot
• Steel grit
• Stainless steel shot
• Cut wire shot

depending on the required surface finish.

Can the machine support automatic loading?

Yes. Optional equipment includes:

• Automatic loading systems
• Vibratory feeders
• Belt conveyors
• Roller conveyors

to increase production efficiency.

Does the machine require a dust collection system?

Yes. A pulse-jet dust collector is strongly recommended to maintain a clean working environment, recover fine dust, and comply with environmental requirements.

Increase Productivity and Lower Cleaning Costs

Investing in a Q324 Tumble Shot Blasting Machine enables manufacturers to:

• Improve cleaning efficiency
• Reduce labor costs
• Enhance surface quality
• Extend coating life
• Lower abrasive consumption
• Increase production capacity
• Improve overall profitability

For foundries and metalworking plants, it is one of the most cost-effective surface preparation solutions available.

Request Your Customized Q324 Shot Blasting Solution

Looking for a trusted Q324 Tumble Shot Blasting Machine Manufacturer?

Our engineering team offers:

Free Technical Support

✔ Workpiece analysis

✔ Shot blasting process evaluation

✔ Equipment selection

✔ Plant layout optimization

✔ Abrasive recommendation

✔ ROI calculation

Contact Us Today For

✔ Factory Direct Pricing

✔ Detailed Technical Proposal

✔ 2D & 3D Equipment Layout

✔ Complete Shot Blasting Production Line Design

✔ Installation & Commissioning Support

✔ Spare Parts & After-Sales Service

To receive a customized quotation, simply send us:

• Workpiece material
• Maximum part dimensions
• Batch weight
• Daily production capacity
• Surface cleanliness requirement (e.g., Sa 2.5 / ISO 8501-1)
• Available workshop space

Our engineers will prepare a tailored technical solution and competitive quotation within 24 hours.
