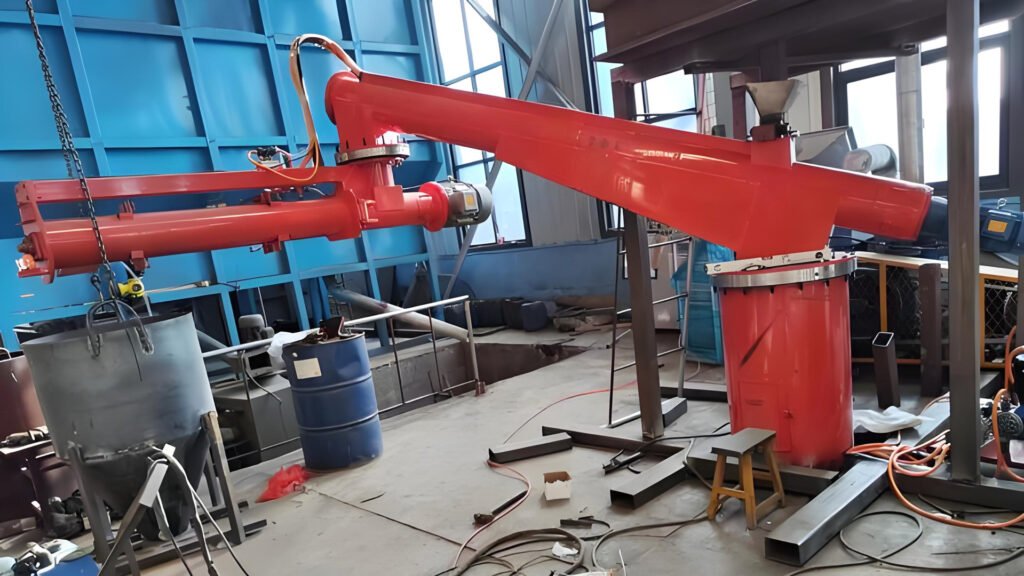

The resin sand mixing machine is an essential piece of equipment in foundries that use no-bake or cold box molding processes. Its primary function is to mix resin binder, hardener (catalyst), and sand uniformly to produce a consistent and homogenous resin sand mixture. This ensures high-quality molds and cores, which are crucial for producing defect-free castings.
What is a Resin Sand Mixing Machine?
A resin sand mixing machine is designed to blend raw silica sand with a precise ratio of resin and hardener. The result is a chemically bonded sand mixture suitable for mold and core production in various foundry processes. It is particularly effective in steel, iron, and non-ferrous casting industries, where precision and strength are essential.
Working Principle
The machine typically consists of the following parts:
- Sand supply system
- Resin and catalyst dosing pumps
- Mixing chamber with dual arms or single shaft
- Discharge mechanism
During operation, the machine automatically meters the correct proportions of sand, resin, and hardener. These components are then rapidly mixed in the mixing chamber to ensure even coating and chemical reaction. The mixed resin sand is discharged immediately to prevent premature curing.
Key Features
- Precise Ratio Control: Ensures accurate dosing of resin and hardener for optimal curing time and mold strength.
- High Mixing Efficiency: Uniform mixing avoids lumps or dry spots, improving mold integrity.
- Continuous or Batch Operation: Available in both configurations to suit various production needs.
- Durable Design: Resistant to abrasive sand and chemical corrosion for long service life.
- User-Friendly Interface: Easy to operate and adjust parameters as needed.
Applications
Resin sand mixing machines are widely used in:
- No-bake molding systems
- Cold box core-making processes
- Precision steel and iron casting production
- Large-scale or complex casting operations
Advantages of Using Resin Sand Mixing Machines
- Improved casting quality with fewer defects
- Consistent and repeatable mixing results
- Reduced labor intensity and operational time
- Compatible with automated molding lines
- Efficient use of resin and catalyst, minimizing waste
Why Resin Sand Mixing Machine Matters for Your Foundry
In today’s competitive foundry industry, consistent quality, operational efficiency, and cost control are essential. One key piece of equipment that significantly impacts all three of these areas is the resin sand mixing machine. Whether you produce iron, steel, or non-ferrous castings, the resin sand mixing machine plays a vital role in ensuring mold quality, reducing waste, and improving overall productivity.
1. Ensures Consistent Mold Quality
The foundation of high-quality castings begins with a well-prepared mold. Resin sand mixing machines deliver homogeneous mixing of sand, resin, and hardener, ensuring that every grain of sand is properly coated. This results in:
- Stronger molds and cores
- Better surface finish on castings
- Reduced risk of casting defects like blowholes, shrinkage, or surface roughness
2. Improves Production Efficiency
Manual mixing is time-consuming, inconsistent, and prone to errors. Resin sand mixers are automated, enabling:
- Faster mixing cycles
- Continuous and reliable output
- Reduced downtime and operator workload
By integrating a resin sand mixer into your molding line, your foundry can handle larger production volumes with better repeatability and lower labor costs.
3. Reduces Material Waste
Precise dosing of resin and catalyst is crucial. Resin sand mixing machines are equipped with automated pumps and control systems that accurately deliver the right amount of chemicals. This helps:
- Minimize excess resin usage
- Avoid premature curing due to over-catalyzation
- Lower operational costs by reducing raw material waste
4. Supports Complex and Large Casting Jobs
For foundries that produce complex cores or large-scale molds, uniform mixing is even more critical. The resin sand mixer provides the strength and stability required for demanding applications. It ensures your molds can withstand handling and pouring processes without deformation or collapse.
5. Enhances Environmental Control
Modern resin sand mixing machines often come with dust collection ports and sealed systems, helping maintain a cleaner work environment. Less spillage and exposure to chemicals also lead to safer operations and compliance with environmental standards.
6. Scalability and Compatibility
Whether your foundry is small-scale or part of a large industrial operation, resin sand mixers come in various capacities and configurations (batch or continuous types) to fit your workflow. They are also easily integrated into automated no-bake or cold box systems, providing room for future upgrades.
A resin sand mixing machine is not just an optional tool — it’s a strategic investment for any modern foundry. It delivers quality, consistency, and efficiency, all of which directly contribute to better casting results and lower production costs. If you’re aiming for sustainable growth and improved competitiveness, upgrading or integrating a reliable resin sand mixer should be a top priority.
Why Resin Sand Mixing Machine Helps Produce High-Quality Sand Molds
In foundry operations, the quality of sand molds directly influences the integrity, dimensional accuracy, and surface finish of castings. One of the most critical factors in achieving superior mold quality is the resin sand mixing process. A resin sand mixing machine ensures that the mold material is consistently prepared, helping foundries produce strong, defect-free molds that meet strict casting requirements.
1. Uniform Mixing of Resin and Sand
High-quality molds require a consistent mixture of sand, resin, and hardener. A resin sand mixing machine ensures even distribution of resin and catalyst across each grain of sand, eliminating dry spots or clumps. This uniformity enhances:
- Bonding strength of the mold
- Mold surface smoothness
- Dimensional accuracy of castings
2. Controlled Chemical Reaction for Optimal Curing
The resin binder system relies on a chemical reaction between resin and hardener. If mixed improperly, it can lead to weak molds or premature curing. Resin sand mixers use precise metering systems to control the amount of each component, ensuring the curing process occurs at the right time with the right strength.
3. Improved Mold Strength and Stability
Because the mixing process is consistent and controlled, the resulting resin sand mixture has superior mechanical properties, such as:
- High compressive and tensile strength
- Resistance to deformation during handling and pouring
- Reduced chance of mold cracking or collapsing
These properties are essential for complex molds or large-scale castings that demand extra durability.
4. Enhanced Surface Finish of Castings
Poorly mixed sand can lead to rough mold surfaces, which negatively affect the finish of the final casting. A high-performance resin sand mixing machine creates a fine and even sand mixture, resulting in:
- Smoother mold interiors
- Reduced need for post-casting machining
- Better aesthetics and surface tolerance of the finished product
5. Consistency Across Batches
Manual mixing is prone to variation, leading to inconsistent mold quality. Resin sand mixing machines offer repeatable results, ensuring that every batch of sand has the same composition and performance. This consistency is vital for mass production and maintaining quality control standards.
6. Supports Advanced Molding Techniques
Modern resin sand mixers can be integrated with no-bake and cold box core-making systems, which are known for producing complex shapes and detailed mold geometries. The high-quality mixed resin sand enables foundries to meet tighter tolerances and more demanding design specifications.
The resin sand mixing machine is a key driver of mold quality in the foundry industry. It ensures precise, uniform, and stable sand mixtures that form the foundation of stronger, smoother, and more accurate molds. By investing in the right resin sand mixer, foundries can significantly enhance casting quality, reduce defects, and streamline their production process.
Conclusion
The resin sand mixing machine plays a critical role in modern foundries by delivering consistent, high-quality sand mixtures required for precision casting. Its efficient mixing capabilities, coupled with automation and durability, make it an indispensable tool in resin sand molding systems.
