In the intricate world of metal casting, creating complex internal cavities within castings – think water jackets in engine blocks, intricate passages in hydraulic valves, or hollow turbine blades – requires precise, robust cores.

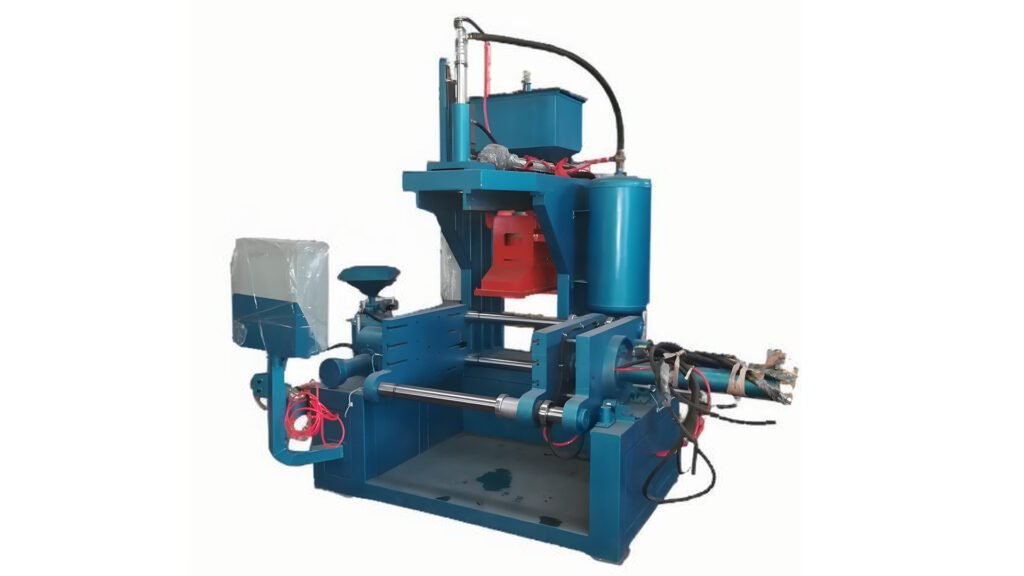

Shell Core Shooter, a specialized machine designed for high-volume, high-precision production of these essential mold components using the shell core process.
Understanding the Shell Core Process:
Unlike traditional green sand cores, shell cores are made using dry, fine silica sand coated with a thermosetting phenolic resin.
The key steps are:
- Mix Preparation: Resin-coated sand is prepared and stored in a hopper on the machine.
- Pattern Heating: A metal core box (pattern), typically made of cast iron or steel, is heated to a specific temperature (usually between 200-300°C / 400-570°F).
- Shooting: The heated core box is clamped shut. Pressurized air or air-blown sand shoots the resin-coated sand mixture into the cavity of the hot core box.
- Shell Formation: Upon contact with the hot core box surface, the resin melts and flows, bonding the sand grains together. It rapidly cures/sets, forming a hard, solid shell adhering to the pattern contours. The dwell time controls the shell thickness (typically 5-15 mm).
- Dumping Excess Sand: The core box is inverted or manipulated, dumping out the uncured, loose sand from the center.
- Final Cure & Ejection: The core box, containing the formed shell, may move through a heating oven for complete curing. Once fully cured, ejector pins push the rigid, hollow shell core out of the box.
- Cooling & Finishing: The ejected core cools and may undergo minor finishing (deburring, gating attachment) before being used in the mold assembly.
The Role of the Shell Core Shooter Machine:
The Shell Core Shooter automates and integrates these critical steps:
- Core Box Handling: Robust clamping mechanisms securely hold and manipulate the heavy, hot core boxes during shooting, dumping, and ejection. Automated arms often index boxes between stations.
- Sand Delivery & Shooting System: A precisely controlled system meters the resin sand and uses compressed air to propel (“shoot”) it forcefully and evenly into the core box cavity under optimal pressure. Uniform filling is crucial for consistent shell thickness.
- Heating System: Integral heaters (gas, electric, or thermal oil) maintain the core boxes at the precise temperature required for resin activation and shell formation. Temperature control is critical.
- Curing Station: Often includes an integrated oven or heated zone to ensure complete curing of the shell after dumping excess sand.
- Ejection System: Pneumatic or hydraulic pins reliably eject the finished core without damage.
- Controls: Sophisticated PLC (Programmable Logic Controller) systems manage the entire cycle sequence (clamping, shooting time, dump time, curing time, ejection), monitor temperatures and pressures, and ensure repeatability. HMI (Human-Machine Interface) panels allow for easy setup and monitoring.
- Sand Recovery (Optional): Many systems incorporate mechanisms to collect and return dumped uncured sand to the hopper for reuse.
Key Advantages of Shell Core Shooters:
- High Precision & Dimensional Accuracy: Produces cores with excellent surface finish (smooth castings), intricate detail, and tight tolerances.
- Superior Core Strength: Shell cores are extremely hard and rigid, resisting handling damage and the high pressures of molten metal during casting.
- Collapsibility: After casting, the thin shell core readily breaks down under the heat of the solidifying metal, allowing easy removal from the casting.
- High Productivity: Automated cycles enable rapid production of large quantities of cores.
- Reduced Finishing: Smoother cores lead to less fettling and cleaning of the final casting.
- Consistency: Automation ensures highly repeatable core quality.
- Sand Efficiency: Uncured sand is largely recovered and reused.
Applications:
Shell core shooters are indispensable in foundries producing:
- Automotive components (engine blocks, cylinder heads, transmission cases)
- Hydraulic and pneumatic valves and manifolds
- Aerospace castings (turbine components)
- Pipe fittings
- Complex industrial machinery parts
- Any casting requiring precise, strong internal cavities.
The Shell Core Process: Precision, Strength, and Efficiency in Foundry Technology
The shell core process is a highly specialized and widely used method in metal casting for producing complex, hollow sand cores. These cores define intricate internal cavities within castings, such as water jackets, oil passages, or complex geometric features impossible to achieve with solid molds alone. Renowned for its precision, strength, and efficiency, the shell core process is essential for high-quality castings in demanding industries like automotive and aerospace.
Here’s a detailed breakdown of the shell core process:
- Resin-Coated Sand Preparation:
- Dry, fine-grained silica sand (or sometimes zircon sand) is coated with a thin layer of thermosetting phenolic resin.
- The resin acts as a binder that will melt and cure upon heating to bond the sand grains together.
- This pre-coated sand is stored in a hopper ready for use in the shell core machine.
- Core Box Heating:
- A precisely machined metal pattern, called a core box (typically made of cast iron, steel, or aluminum), is mounted on the shell core machine.
- The core box is heated to a critical, controlled temperature, usually within the range of 200°C to 300°C (400°F to 570°F). Heating methods include gas flames, electric cartridges, or thermal oil circulation.
- Core Box Clamping and Shooting:
- The heated core box halves are securely clamped together.
- Pressurized air (or sometimes a blowing mechanism) forces (“shoots”) the resin-coated sand mixture from the hopper into the cavity of the hot core box under significant pressure.
- Key Goal: Achieve fast, even, and complete filling of the core cavity to ensure uniform shell thickness. Venting ensures air escapes during filling.
- Shell Formation (Dwell Stage):
- When the resin-coated sand contacts the hot metal surfaces of the core box, the heat melts the resin binder at the interface.
- The liquefied resin flows, coating sand grains and forming bridges between them.
- Almost immediately, the resin begins to polymerize and cure (harden) due to the heat. This rapid thermosetting reaction creates a hard, rigid shell bonded to the core box contours.
- Dwell Time: The sand mixture remains in the core box for a precise period (typically 10-60 seconds). This controls the shell thickness (usually 5-15 mm / 0.2-0.6 inches). Longer dwell = thicker shell.
- Dumping Uncured Sand:
- After the predetermined dwell time, the core box is inverted or rotated.
- This dumps out the loose, uncured sand from the center of the forming core. Only the cured shell adhering to the core box wall remains.
- The uncured sand is collected, cooled if necessary, and recycled back into the process hopper, minimizing waste.
- Final Curing:
- The core box, containing the partially cured hollow shell, may move to a secondary heating station (an integrated oven or zone within the machine).
- Here, the shell receives additional heat for a set time to achieve complete polymerization and curing throughout its thickness. This maximizes strength and stability.
- Core Ejection:
- Once fully cured, the core box halves are unclamped.
- Ejector pins (pneumatic or hydraulic) built into the core box push the rigid, hollow shell core out of the cavity without damaging it.
- Cooling and Finishing:
- The ejected core is allowed to cool sufficiently.
- Minor finishing operations might be performed, such as removing flash or minor imperfections (deburring), attaching core prints or gating systems, or applying refractory coatings if needed for the specific casting process.
- Core Storage and Mold Assembly:
- The finished shell cores are stored carefully to prevent damage.
- They are then assembled into molds (often sand molds) where molten metal will flow around them. After casting and solidification, the hollow shell core collapses easily under the thermal stress and mechanical vibration during shakeout, allowing its removal from the casting.
Key Characteristics of Shell Cores:
- Hollow: Significantly reduces sand usage vs. solid cores.
- High Precision/Dimensional Accuracy: Excellent surface finish and fine detail replication.
- High Strength & Rigidity: Resists handling damage and metal pressure during pouring.
- Excellent Collapsibility: Breaks down easily after casting for removal.
- Good Refractoriness: Suitable for ferrous and non-ferrous alloys.
- Lower Gas Evolution: Compared to some other core processes, reducing casting defects.
Why Choose the Shell Core Process?
This process excels when casting requirements demand:
- Complex internal geometries.
- Exceptional dimensional accuracy and surface finish.
- High core strength for thin sections or high metal pressure.
- High-volume production efficiency (especially with automated shell core shooters).
- Minimal core-related casting defects.
By combining precision, strength, and efficient material use, the shell core process remains a vital cornerstone technology for producing sophisticated and reliable metal castings.
Conclusion:
The Shell Core Shooter is a cornerstone technology in modern high-volume, precision foundries. By automating the intricate shell core process, it delivers the robust, dimensionally accurate cores essential for producing complex, high-quality metal castings efficiently and reliably. Its ability to combine intricate detail with high strength and productivity makes it a vital piece of equipment for meeting the demanding requirements of industries ranging from automotive to aerospace.
