In the intricate world of metal casting, the production of high-definition, dimensionally accurate internal cavities is paramount. This critical task falls to cores – sand shapes inserted into molds before pouring molten metal.
Shell Core Shooting Machines represent a sophisticated and highly efficient technology specifically designed for mass-producing these essential components, particularly the complex, hollow “shell” cores vital for intricate castings like engine blocks, cylinder heads, and manifolds.
What is a Shell Core Shooting Machine?

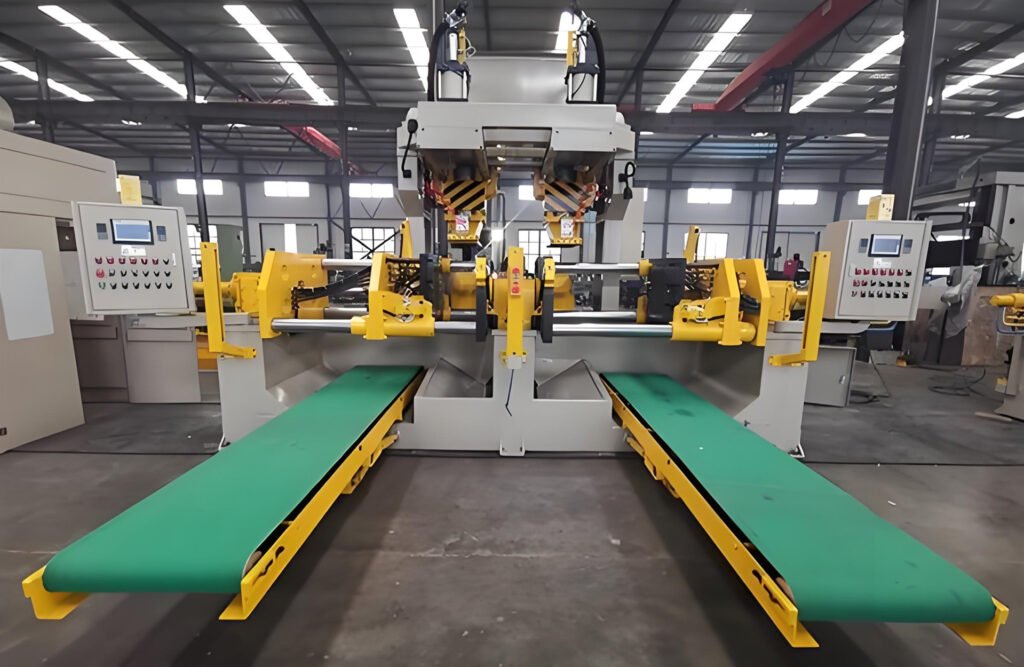

A Shell Core Shooting Machine is a highly specialized piece of foundry equipment designed to produce hollow sand cores with a hard, smooth outer shell. These “shell cores” are essential for creating complex internal cavities and passages within metal castings, such as engine coolant jackets, intake manifolds, or hydraulic valve bodies.
Purpose: Why Use Shell Cores?
Shell cores offer significant advantages:
- Complex Geometry: Create intricate shapes impossible with solid cores.
- Precision & Surface Finish: Deliver excellent dimensional accuracy and smooth surfaces.
- Reduced Weight & Gas: Hollow structure saves sand and minimizes gas generation during metal pouring.
- Less Finish Work: Requires less cleaning after casting.
- Sand Savings: Uncured interior sand is recycled.
How Does It Work? (The Core Process)
The machine automates the “Shell Process”:
- Heat: A metal Core Box (shaped like the desired cavity) is heated to 200-300°C (400-570°F).
- Shoot: Resin-coated sand is blown pneumatically under high pressure into the heated core box cavity.
- Form Shell: Heat melts the resin on the sand grains touching the hot core box surface, fusing them into a solid, hardened shell. The thickness depends on cure time and temperature.
- Dump Excess: The machine inverts the core box, dumping uncured, loose sand from the center for reuse.
- Eject Core: The hardened, hollow shell core is ejected, ready for molding.
Where Are They Used?
Essential in foundries producing complex castings for:
- Automotive: Engine blocks/heads, cylinder heads, intake manifolds, transmission cases.
- Aerospace: Turbine housings, structural components.
- Industrial: Hydraulic valves, pump housings, pipe fittings, heavy machinery parts.
The Shell Core Shooting Machine is a cornerstone technology for modern foundries requiring high volumes of precise, complex sand cores. By combining pneumatic injection, thermal curing on a heated pattern, and automated handling, it efficiently produces the hollow shell cores vital for creating intricate internal features in high-quality metal castings. Its ability to deliver consistency, precision, and material efficiency makes it indispensable for competitive foundry operations.
Shell Core Shooting Machine Core Function and Principle:
Unlike simpler ramming methods, a Shell Core Shooting Machine operates on the principle of pneumatic impaction. Its core purpose is to:
- Inject: Force a precise mixture of resin-coated sand (often using a phenolic or furan resin system suitable for shell processes) under controlled air pressure into a heated core box cavity.
- Form & Cure: Simultaneously, the heated core box (typically 200-300°C / 400-570°F) causes the resin in the sand immediately contacting the metal surfaces to melt and flow, forming a hard, cured “shell.”
- Dump Excess: After a predetermined cure time for the shell wall thickness, the machine inverts the core box, dumping the uncured, loose sand from the center of the core back into the system for reuse.
- Eject: Finally, the hardened, hollow shell core is ejected, ready for handling and assembly into the main mold.
Key Components and Operation:
- Sand Magazine & Metering System: Holds the resin-coated sand and precisely meters the required amount for each shot based on core size and complexity.
- Shooting Head/Valve: The heart of the machine. This critical assembly controls the flow of sand and compressed air. It typically features:
- Sand Chamber: Receives metered sand.
- Air Inlets: For fluidization (making sand flow like a fluid) and shooting pressure.
- Shooting Nozzle: Directs the sand-air mixture into the core box cavity. Nozzle design and pressure are crucial for uniform filling and density.
- Complex Valve Mechanism: Precisely times the opening/closing of sand inlets, fluidization air, and shooting air.
- Core Box Carrier/Clamping Unit: Holds the heavy, heated core box halves securely closed under high clamping force during injection and curing. Provides precise alignment.
- Heating System: Integrates heaters (electric, gas, thermal oil) into the core box platens to maintain the necessary curing temperature profile.
- Inversion Mechanism: Rotates the clamped core box assembly 180 degrees after partial curing to dump uncured sand.
- Ejection System: Uses pins, air blasts, or lifters to push the cured shell core out of the core box after dumping and reopening.
- Control System (PLC/HMI): The brain of the operation. Manages the entire sequence: clamping, sand metering, shooting parameters (pressure, time), curing time, inversion, dumping, ejection, and often diagnostics. Allows programming recipes for different cores.
Critical Process Parameters:
- Sand Properties: Grain size, distribution, resin type, and coating level significantly impact flowability and curing behavior.
- Core Box Temperature: Must be tightly controlled for consistent shell thickness and cure quality.
- Shooting Pressure: Affects sand velocity, cavity fill speed, and core density uniformity. Too low = incomplete fill; too high = core box wear/erosion.
- Shooting Time: Duration of the injection phase.
- Fluidization Air Pressure: Ensures sand flows freely into the shooting chamber.
- Curing Time: Determines shell thickness and strength. Must be optimized for the resin system and temperature.
Advantages of Shell Core Shooting Machines:
- High Productivity & Consistency: Automated cycle times enable fast, repeatable production of identical cores, ideal for high-volume foundries.
- Complex Geometries: Capable of producing intricate, thin-walled, hollow cores with excellent dimensional accuracy and surface finish.
- Excellent Core Quality: Produces very dense, hard, strong cores with low gas evolution during casting, minimizing defects.
- Minimal Finishing: Shell cores typically require less cleaning and finishing compared to other core types.
- Sand Reclamation: Uncured sand from the center is efficiently dumped and reused, minimizing waste.
- Process Control: Highly programmable parameters ensure consistent quality and allow optimization.
Industry Applications:
Shell Core Shooting Machines are indispensable in foundries producing:
- Automotive Components (Engine blocks, heads, intake manifolds, transmission cases)
- Aerospace Castings (Turbine housings, structural parts)
- Heavy Machinery (Hydraulic components, pump housings, valve bodies)
- Pipe Fittings and Valves
Conclusion
The Shell Core Shooting Machine is a pinnacle of foundry core-making technology. By combining precisely controlled pneumatic sand injection, thermal curing, and automated handling, it delivers the high volumes of complex, high-precision shell cores demanded by modern metal casting industries. Its efficiency, consistency, and ability to produce cores with superior surface finish and dimensional accuracy make it a cornerstone technology for foundries aiming for high-quality, complex castings in competitive markets. Continuous advancements in machine design, control systems, and resin/sand technology continue to push the boundaries of what these remarkable machines can achieve.
