A Steel Pipe Internal/External Wall Shot Blasting Machine is a specialized type of shot blasting equipment designed specifically for cleaning, surface preparation, and finishing the inner and outer surfaces of steel pipes. These machines are used in industries where steel pipes need to be cleaned from rust, scale, corrosion, or other contaminants and prepared for coating, painting, or further processing.
How It Works:
The Steel Pipe Internal/External Wall Shot Blasting Machine is typically designed to simultaneously clean both the inside and outside surfaces of steel pipes. The process involves the use of abrasive media, usually steel shots or grit, which is blasted at high speed towards the surface of the pipe. The system usually employs two or more sets of blast wheels and sometimes a combination of rotating and stationary components.
Pipe Feeding:

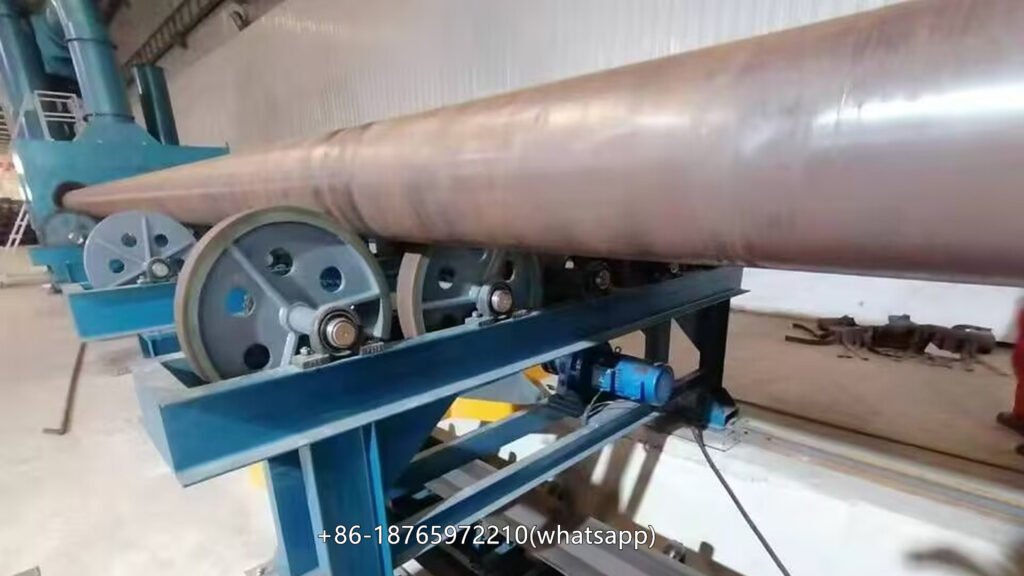

- The steel pipes are fed into the machine via a conveyor system or manually loaded, depending on the machine design.
- For continuous operations, the pipes are automatically moved through the blasting chamber via rollers or a conveyor system. In batch systems, the pipes may be loaded and unloaded manually.
External Blasting (Outer Surface):
- The machine typically uses multiple blast wheels (or sometimes blast nozzles) arranged around the pipe’s external surface. These blast wheels project abrasive media at high speeds, removing contaminants such as rust, mill scale, dirt, and old coatings from the outer surface of the pipe.
- The blast wheels can be adjusted to ensure even and thorough coverage around the entire outer circumference of the pipe.
Internal Blasting (Inner Surface):
- For cleaning the internal surface, the machine often has a rotating internal blasting system, where an internal rotating brush or nozzles are used to propel the abrasive media inside the pipe.
- The internal cleaning system is designed to provide even coverage along the entire inner surface of the pipe, removing internal contaminants and preparing the pipe for further processing.
- The rotating nozzle or system inside the pipe moves in such a way as to cover the full length of the pipe, ensuring all internal surfaces are blasted effectively.
Abrasive Media:
- The most commonly used abrasive media for steel pipes is steel shot or steel grit, but depending on the specific material of the pipe or the desired finish, other types of abrasive media such as aluminum oxide or ceramic media can also be used.
- The abrasive media is projected by the blast wheels or nozzles onto the pipe, and after impact, the media typically falls to the bottom of the chamber for recovery.
Abrasive Recovery System:
- After impacting the steel pipe, the used abrasive media is collected by a recovery system, often a combination of screw conveyors, bucket elevators, or vibratory screens.
- The recovery system separates contaminants (such as rust and dirt) from the abrasives, allowing the media to be recycled and reused in the blasting process, making the operation more cost-effective.
Dust Extraction:
- The blasting process generates dust and debris, which is collected by a dust extraction system. This system removes airborne particles to maintain a clean working environment and to prevent the buildup of debris in the machine.
- The dust extraction system often includes filters or cyclonic separators to capture fine particles.
Finished Pipes:
- Once the pipes have passed through the blasting process, they are unloaded from the machine. The cleaned pipes may undergo further processes, such as coating, painting, or inspection, depending on the application.
Key Features and Benefits:
- Simultaneous Internal and External Blasting: These machines are designed to clean both the inner and outer surfaces of steel pipes at the same time, which improves efficiency and saves time compared to separate systems for internal and external blasting.
- Uniform Cleaning: The blast wheels or nozzles are carefully positioned to ensure consistent and even coverage of the pipe’s surface, leaving no untreated areas.
- High Throughput: These machines can process large numbers of pipes in a continuous manner, making them ideal for mass production in industries such as oil and gas, construction, and steel manufacturing.
- Cost-Effective: The abrasive recovery system allows for the recycling of abrasives, which reduces operational costs and material waste.
- Versatile: Steel pipe shot blasting machines can handle a range of pipe sizes and can be adjusted to suit different cleaning requirements, whether for large diameter pipes or smaller pipes.
Applications:
Steel pipe internal/external wall shot blasting machines are primarily used in industries where steel pipes are required for infrastructure and manufacturing, such as:
- Oil and Gas: Cleaning steel pipes for pipelines and other related infrastructure. Shot blasting ensures the removal of scale, rust, and debris, preparing the pipes for coating or painting.
- Construction: Preparing steel pipes used for structural or plumbing purposes.
- Marine Industry: Cleaning and preparing pipes for use in marine structures or ships, where corrosion resistance is critical.
- Water Treatment and Distribution: Cleaning pipes used in water supply systems to remove contaminants and improve surface quality for coatings.
- Aerospace and Automotive: Manufacturing steel pipes used in these industries, where surface cleanliness and preparation are vital for welding, coating, or assembly.
Advantages:
- Time and Cost Efficiency: The ability to clean both internal and external surfaces simultaneously saves time, while the recycling of abrasive media reduces long-term operating costs.
- Improved Surface Quality: The uniform and thorough cleaning process ensures that pipes are perfectly prepared for coating, painting, or further welding processes.
- Versatile Pipe Size Handling: These machines can be customized to accommodate various pipe diameters, lengths, and materials, providing flexibility for different manufacturing needs.
- Automation: Most steel pipe shot blasting machines can be automated, which reduces the need for manual labor and increases throughput.
Conclusion:
Steel Pipe Internal/External Wall Shot Blasting Machine is an excellent solution for industries that need to clean and prepare steel pipes efficiently. Whether you’re preparing pipes for coating, painting, or other surface treatments, these machines provide uniform and thorough cleaning of both the inner and outer surfaces, which helps to improve the quality of finished products. With their high throughput, cost-effective abrasive recovery, and versatile design, these machines are ideal for high-volume production lines in industries such as oil and gas, construction, marine, and water distribution.
