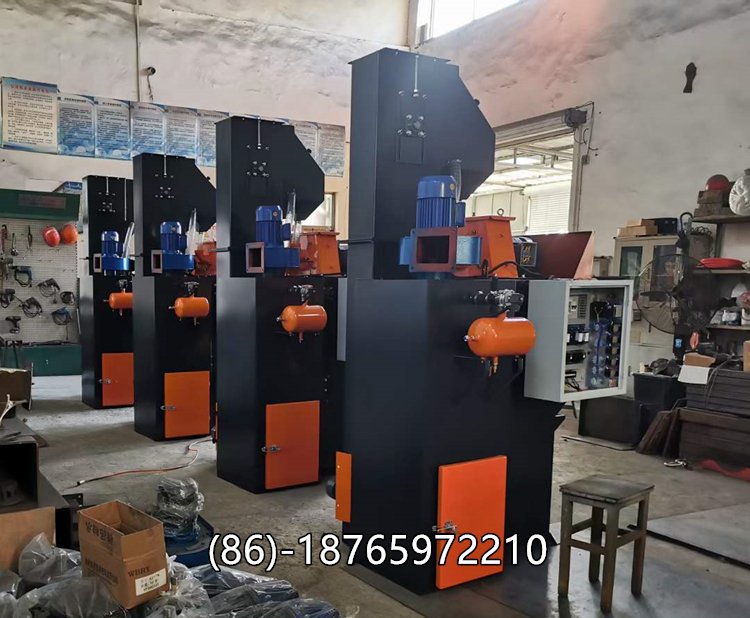

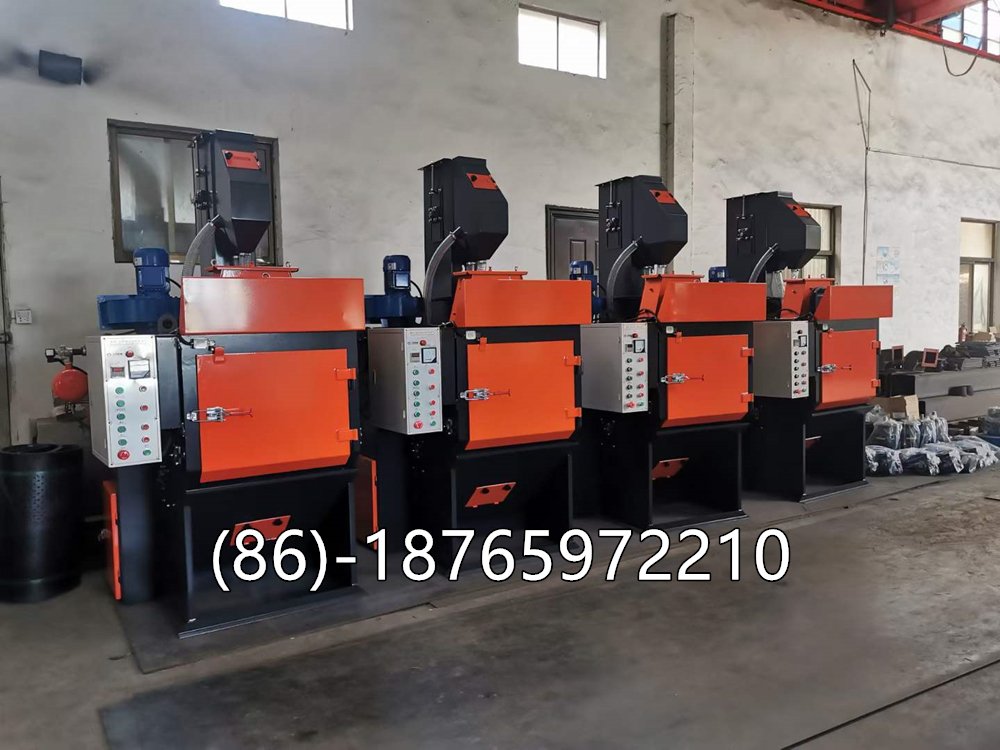

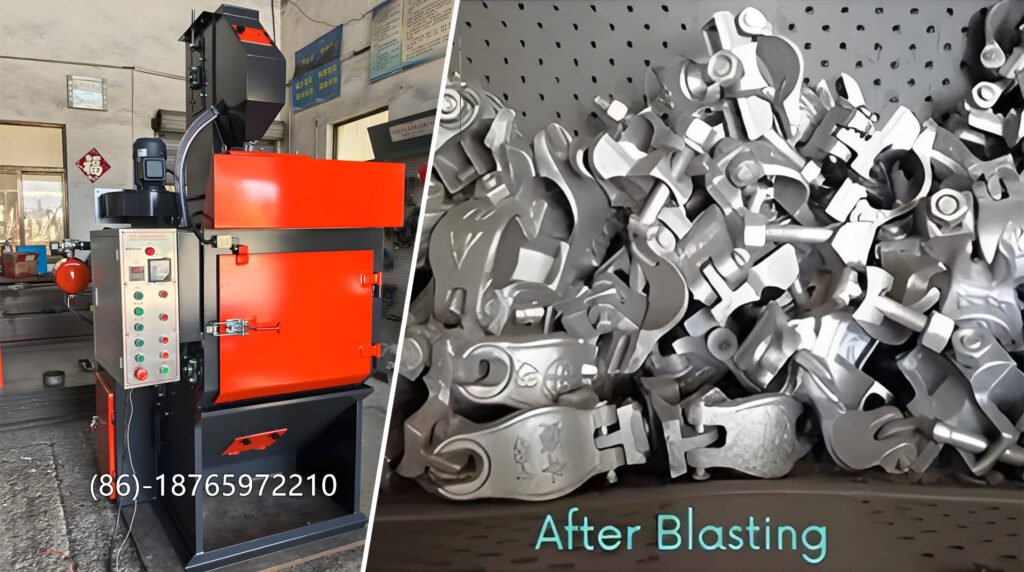

Tumble shot blasting machines are built for tough, continuous work — cleaning, descaling, and surface finishing of metal parts.
However, even a reliable machine can run into issues after long hours of operation. From my experience on the shop floor, most problems come down to wear, imbalance, or improper maintenance.
Common Issues And Practical Troubleshooting Steps In Daily Operations
1. Uneven Cleaning or Poor Blasting Effect
Possible Causes:
- Worn or broken throwing blades.
- Low shot flow or blocked abrasive feed valve.
- Incorrect blast wheel direction or speed.
- Insufficient abrasive in the system.
Troubleshooting Steps:
- Check all blades and replace any showing visible wear.
- Inspect the feed valve and control cage for blockage.
- Verify the rotation direction of the impeller.
- Maintain proper abrasive level — neither too high nor too low.
2. Excessive Dust Inside or Around the Machine
Possible Causes:
- Dust collector not functioning properly.
- Damaged filter bags or clogged ducts.
- Leaking seals on doors or joints.
Troubleshooting Steps:
- Check suction pressure and clean the filters regularly.
- Replace torn filter bags.
- Inspect and replace any damaged seals.
- Make sure the air duct connections are tight and clean.
3. High Noise or Vibration During Operation
Possible Causes:
- Imbalance in the blast wheel or worn bearings.
- Loose bolts on machine housing or base.
- Excessive shot accumulation inside the cabinet.
Troubleshooting Steps:
- Check wheel assembly balance and bearing condition.
- Tighten all bolts, especially on motor and foundation.
- Clean out any built-up abrasive from the machine interior.
4. Conveyor or Barrel Not Rotating Properly
Possible Causes:
- Belt or chain tension too loose or worn.
- Motor or gearbox fault.
- Foreign material jammed in the barrel.
Troubleshooting Steps:
- Adjust or replace drive belts/chains.
- Inspect gearbox oil level and condition.
- Remove any jammed workpieces or media.
5. Abrasive Leakage Around the Machine
Possible Causes:
- Worn rubber seals or damaged screw conveyor covers.
- Cracks or gaps in the cabinet.
- Improper door closure.
Troubleshooting Steps:
- Replace all rubber seals as part of regular maintenance.
- Patch or weld any cracked areas.
- Check door alignment and locking system.
6. Poor Separation of Dust and Abrasive
Possible Causes:
- Separator screen clogged or misaligned.
- Fan airflow reduced.
- Incorrect adjustment of separator gate.
Troubleshooting Steps:
- Clean or replace the separator screen.
- Check fan motor and impeller for dust buildup.
- Adjust air gate until proper shot flow and separation are achieved.
Final Advice
Always follow the maintenance schedule — it’s the best way to prevent downtime.
- Lubricate bearings weekly.
- Inspect wear parts daily.
- Keep the control cabinet clean and dry.
- Record every inspection and repair.
A well-maintained tumble shot blasting machine will deliver consistent performance, lower repair costs, and longer service life — something every workshop engineer can appreciate.
