The Cold Box Core Shooter Machine is a crucial piece of equipment in the metal casting industry, primarily used for producing high-precision sand cores required in complex casting processes. Utilizing the cold box process, this machine offers speed, accuracy, and durability, making it a popular choice in foundries around the world.
What is the Cold Box Process?
The Cold Box process is a core-making method where sand is mixed with a chemical binder and then hardened using a gas catalyst, typically amine gas. The process allows for the quick production of strong, dimensionally accurate cores without the need for external heating. This method significantly reduces cycle times and energy consumption, making it both efficient and environmentally friendly.

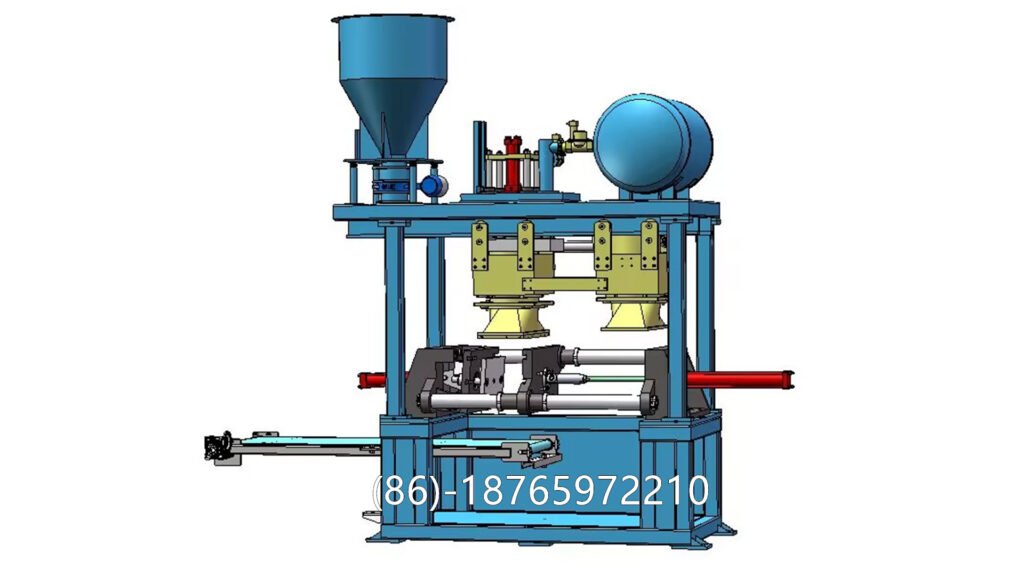

How the Cold Box Core Shooter Works
- Sand Preparation: Sand is mixed with a resin binder in a continuous mixer.
- Core Shooting: The prepared sand mixture is injected into a core box using high pressure.
- Curing: Amine gas is blown into the core box, initiating a chemical reaction that hardens the sand core.
- Core Removal: Once cured, the core is ejected from the box and is ready for use in the casting process.
Key Features
- High Accuracy and Repeatability: Ensures consistent core quality for high-performance castings.
- Fast Cycle Times: Allows mass production with short curing periods.
- Energy Efficient: Does not require external heating, reducing energy consumption.
- User-Friendly Interface: Most modern machines come with automated controls and touch-screen interfaces for easy operation.
- Versatile Applications: Suitable for producing complex and high-strength cores used in automotive, aerospace, and general engineering castings.
Advantages of Using a Cold Box Core Shooter Machine
- Improved Production Efficiency: High-speed operation and quick curing lead to increased output.
- Better Dimensional Accuracy: Ensures the produced cores meet tight tolerances.
- Enhanced Surface Finish: Produces smooth and defect-free cores, improving final casting quality.
- Lower Operational Costs: Reduced energy usage and waste generation contribute to cost savings.

Why Choose Cold Box Core Shooter Machine?
In the world of metal casting, precision, speed, and efficiency are key to staying competitive. That’s why many modern foundries are turning to the Cold Box Core Shooter Machine. This advanced core-making equipment offers numerous advantages that make it the preferred choice for producing high-quality sand cores.
1. High Precision and Dimensional Accuracy
The Cold Box Core Shooter is known for its ability to produce complex and detailed cores with outstanding dimensional accuracy. This is essential for industries such as automotive, aerospace, and heavy machinery, where even minor defects can lead to significant issues.
2. Fast and Efficient Production
Thanks to the Cold Box process, curing times are extremely short—often just a few seconds. This rapid hardening allows for continuous, high-speed production, significantly boosting productivity without compromising quality.
3. Energy Saving and Environmentally Friendly
Unlike traditional hot core-making methods, the Cold Box system does not require heat to cure the sand. This not only saves energy but also reduces emissions, making it an eco-friendly solution aligned with modern environmental standards.
4. Strong and Durable Cores
The Cold Box method uses a gas-catalyzed resin system that results in extremely strong sand cores. These cores can withstand the mechanical stresses and high temperatures of the casting process, ensuring minimal breakage and waste.
5. Versatile Applications
The machine is highly adaptable to a wide range of core sizes and shapes. Whether you are casting simple parts or highly complex components, the Cold Box Core Shooter can be tailored to meet your specific needs.
6. Automated Operation and Easy Control
Modern Cold Box Core Shooter Machines come equipped with programmable logic controllers (PLC) and user-friendly touch-screen interfaces. Automation ensures consistent quality and reduces labor costs, while also simplifying maintenance and operation.
7. Cost-Effective Long-Term Investment
Although the initial investment may be higher than traditional equipment, the Cold Box Core Shooter pays off through faster cycles, reduced energy use, lower scrap rates, and improved casting quality. Over time, it becomes a highly cost-effective solution.
Choosing a Cold Box Core Shooter Machine means choosing reliability, efficiency, and quality. It is a powerful tool that helps foundries meet today’s demanding production standards while reducing operational costs and environmental impact. Whether you’re upgrading existing equipment or setting up a new production line, the Cold Box Core Shooter is a smart investment for the future of your foundry.

The Advantages of Cold Core Box Core Shooting Machines Compared with Hot Core Box Core Shooting Machines
In the foundry industry, core-making technology plays a crucial role in determining casting quality, production efficiency, and operational cost. Among the various core-making methods, Cold Core Box (Cold Box) and Hot Core Box (Hot Box) technologies are the most widely used. While both have their own applications, the Cold Core Box Core Shooting Machine offers several distinct advantages over its hot counterpart.
1. Faster Curing Time and Higher Productivity
- Cold Box: Uses a gas catalyst (such as amine gas) to rapidly harden the sand-resin mixture in seconds, allowing for very short cycle times.
- Hot Box: Requires the core box to be heated and takes longer to cure the sand, resulting in slower production rates.
- Advantage: Cold Box enables higher output and is ideal for mass production environments.
2. Lower Energy Consumption
- Cold Box: Does not require external heating, significantly reducing electricity or fuel usage.
- Hot Box: Requires constant heating of the core box, leading to high energy consumption.
- Advantage: Cold Box is more energy-efficient and environmentally friendly.
3. Better Dimensional Accuracy and Surface Finish
- Cold Box: Provides high dimensional precision and smoother core surfaces due to controlled curing and low thermal expansion.
- Hot Box: Can lead to minor expansion or distortion due to heat.
- Advantage: Cold Box cores are often more accurate and consistent, improving final casting quality.
4. Cleaner Working Environment
- Cold Box: Emits fewer odors and pollutants, especially with advanced amine scrubbing systems.
- Hot Box: Generates smoke, fumes, and odor from heated resin systems, requiring better ventilation and filtration.
- Advantage: Cold Box contributes to a healthier and safer workplace.
5. Stronger and More Complex Cores
- Cold Box: Can produce stronger and more complex-shaped cores, suitable for intricate casting designs.
- Hot Box: Better suited for simpler cores; complex shapes may require additional processing.
- Advantage: Cold Box machines offer more design flexibility.
6. Reduced Maintenance and Tool Wear
- Cold Box: Since there’s no high-temperature operation, tooling and machine components experience less thermal stress and wear.
- Hot Box: High temperatures can lead to faster wear and more frequent maintenance.
- Advantage: Cold Box machines offer longer tool life and lower maintenance costs.
While both core-making systems have their place in the casting process, Cold Core Box Core Shooting Machines provide clear advantages in terms of productivity, energy savings, precision, and environmental impact. For foundries looking to improve efficiency and quality while reducing operational costs, the Cold Box method is a highly effective and modern solution.
Conclusion
The Cold Box Core Shooter Machine has transformed the core-making process with its advanced technology, enabling foundries to meet modern manufacturing demands. With its fast, clean, and precise operations, it is an indispensable tool for producing high-quality castings efficiently and reliably.
