In sand casting, a pattern is a replica of the final desired part, used to create the mold cavity. Typically made from wood, plastic, or metal, it is pressed into compacted sand to form an impression. Once removed, the remaining cavity is filled with molten metal to produce the casting.

What Is A Pattern In Sand Casting Process

In the sand casting process, a pattern is a replica or model of the object to be cast. It is used to create the mold cavity in the sand, which is later filled with molten metal to form the final cast part.

Purpose of a Pattern in Sand Casting:

Creates the Mold Cavity:

• The pattern is a replica of the final part (but slightly larger to account for shrinkage).
• It is pressed or packed into sand to form a negative impression, which becomes the mold cavity.

Accounts for Shrinkage:

• Metals contract when they cool. The pattern is made slightly oversized to compensate for this shrinkage, ensuring the final casting is the correct dimensions.

Provides Draft Angles:

• The pattern is designed with tapered sides (draft) to allow easy removal from the sand mold without disturbing the mold cavity.

Includes Allowances:

• Patterns are designed with machining allowances, distortion allowances, and shrinkage allowances to ensure the final part meets specifications.

Aids in Core Placement:

• For complex internal features, the pattern may include core prints—projections that help position sand cores correctly in the mold.

Improves Efficiency and Reproducibility:

• A reusable pattern allows for multiple identical mold cavities to be produced quickly and consistently.

Key Functions of a Pattern

1. Mold Cavity Formation
   • The primary role is to define the geometry of the casting. The pattern’s shape dictates the mold’s internal contours, ensuring dimensional consistency.
   • Example: A gear pattern creates the exact tooth profile in the sand mold.
2. Gating System Integration
   • Patterns often include attached channels for:
     • Pouring gates (metal entry points)
     • Risers (feeders for shrinkage compensation)
     • Vents (gas escape paths)
   • These elements are critical for defect-free castings.
3. Material and Shrinkage Compensation
   • Patterns are oversized to account for metal shrinkage during solidification (e.g., 2% larger for cast iron).
   • Material choice (e.g., resin for complex shapes, metal for durability) affects pattern longevity.
4. Production Efficiency
   • Reusable patterns enable mass production.
   • Modern techniques like 3D-printed sand molds reduce dependency on physical patterns but still emulate their function digitally.

Pattern Types and Applications

• Single-piece patterns: Simple designs for low-volume production.
• Split patterns: For complex geometries with undercuts.

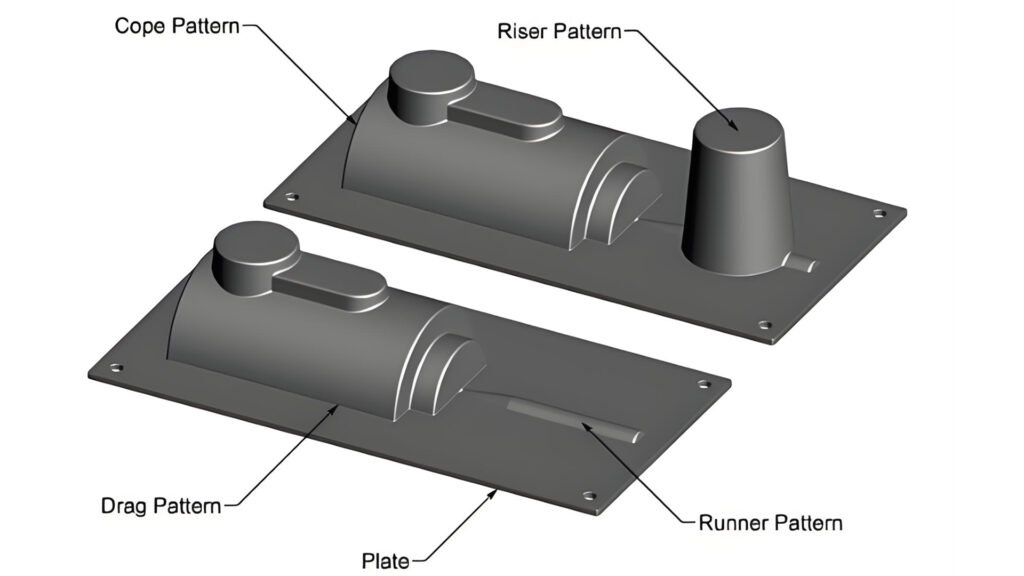

• Match-plate patterns: Used in automated systems for high precision.

Why Pattern Matters In Sand Casting Process?

A pattern matters in the sand casting process because it directly determines the shape, size, and quality of the final cast product.

1. Forms the Mold Cavity

• The pattern is used to make an impression in the sand, which becomes the cavity where molten metal is poured.
• The accuracy of the pattern affects the accuracy of the final part.

2. Controls Dimensional Accuracy

• Patterns are made slightly larger than the final product to account for metal shrinkage during cooling.
• Properly designed patterns help maintain tolerances and dimensions.

3. Facilitates Mold Removal

• Patterns include draft angles to ensure they can be removed from the sand mold without damaging the cavity.
• Without a proper pattern, the mold may collapse or become misshapen.

4. Supports Complex Features

• Patterns often include core prints, which help in placing cores that form internal cavities in the casting.
• This allows for more complex shapes to be cast accurately.

5. Improves Production Efficiency

• A well-designed pattern allows for quick and repeatable mold making, saving time and labor in mass production.

6. Reduces Waste and Costs

• A precise pattern reduces defects, rework, and metal waste, improving the cost-effectiveness of the casting process.

The Critical Role of Patterns in Sand Casting: Precision and Quality Assurance

Patterns are not mere templates but dynamic interfaces between design intent and industrial execution. Their optimization bridges craftsmanship and computational rigor, ensuring cast products meet both functional and commercial imperatives.

1. Patterns as Architectural Blueprints

In sand casting, patterns function as the foundational blueprint that replicates the final product’s geometry. Their design determines:

• Dimensional accuracy: Patterns must account for shrinkage allowances and machining tolerances, ensuring the mold cavity aligns with engineering specifications.
• Surface detail replication: Complex geometries (e.g., fillets, undercuts) require precision pattern construction to avoid defects like cold shuts or misruns.
• Functional adaptability: Modular patterns with adjustable components enable rapid design iterations for customized castings, akin to parametric policy frameworks in computational systems.

2. Quality Assurance Through Pattern Optimization

Patterns directly influence metallurgical integrity and defect minimization:

• Ventilation and gating systems: Strategically placed channels in patterns regulate molten metal flow, reducing porosity and inclusions.
• Consistency control: Standardized patterns ensure batch-to-batch uniformity, aligning with quality assurance benchmarks in industrial manufacturing.
• Defect diagnostics: Deviations in pattern dimensions correlate with common defects (e.g., warping, uneven wall thickness), enabling predictive corrections during mold preparation.

3. Material and Technological Synergy

Modern advancements enhance pattern efficacy:

• 3D-printed patterns: Enable rapid prototyping of intricate designs while reducing material waste.
• Composite materials: Durable resins or hybrid polymers extend pattern lifespan under high-stress molding cycles.
• Digital twins: Simulation tools validate pattern designs against thermal stress and fluid dynamics before physical implementation.

4. Economic and Sustainability Impacts

• Cost efficiency: Precision patterns minimize post-casting machining, reducing energy consumption and raw material usage.
• Reusability: High-quality patterns support thousands of casting cycles, aligning with circular economy principles.

In Summary

The pattern is the foundation of the sand casting process. A well-designed and accurate pattern ensures that the final metal casting meets specifications, functions properly, and is produced efficiently.
