In our foundry, surface cleaning and finishing are everyday jobs, and the tumble belt shot blasting machine is one of the most practical tools for this. It’s built to handle mass production parts — small to medium-sized castings or forgings — and gives them a uniform clean finish by removing sand, scale, and rust efficiently.

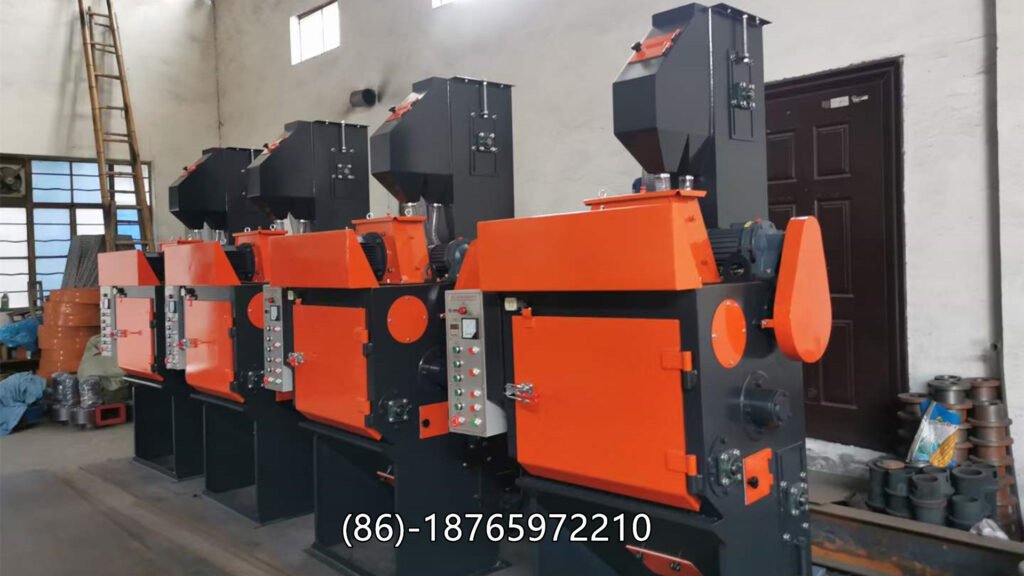

Tumble belt shot blasting machine is a surface cleaning and finishing equipment mainly used for small and medium-sized castings, forgings, and metal parts. It uses high-speed steel shots to remove rust, sand, scale, or paint from the surface of workpieces, giving them a clean and roughened finish — ready for coating, painting, or further processing.
Working Principle
The working principle of tumble belt shot blasting machine is simple but effective.

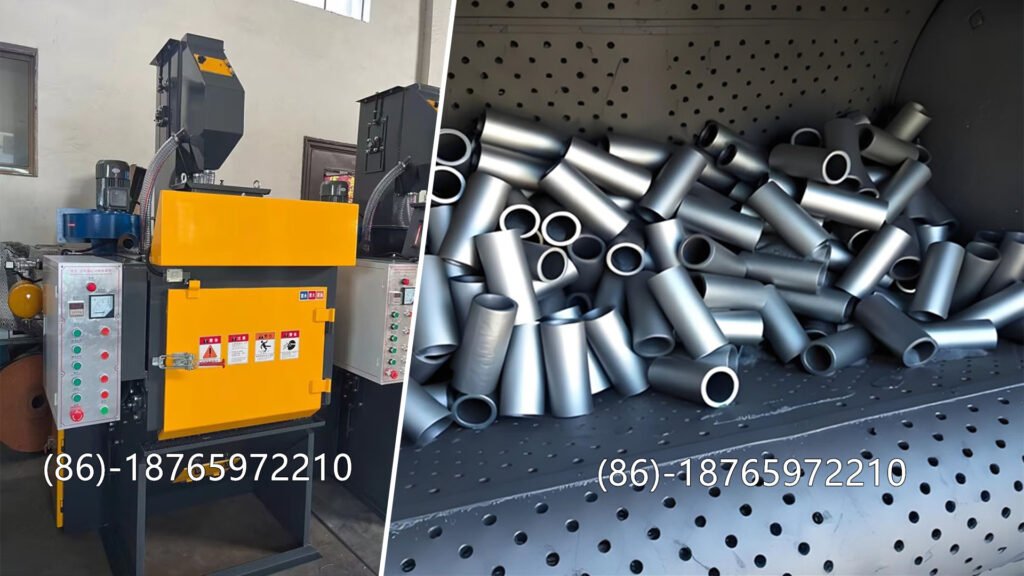

Parts are loaded into the rubber or steel belt drum, which forms a continuous loop. When the machine starts, the belt begins to tumble the workpieces, exposing every side of the parts.
At the same time, the blast wheel (or impeller head) rotates at high speed, throwing abrasive shots onto the moving parts. The combination of tumbling motion and high-velocity blasting ensures that every surface is evenly cleaned, even those hard-to-reach corners.
The used abrasive and contaminants fall through the bottom and are carried away by a screw conveyor to the separator system, where reusable shots are cleaned and recycled back into the system. Dust and fine debris are extracted by the dust collector, keeping the chamber and environment clean.
Main Components
- Blast Chamber
The heart of the machine. It’s made from manganese steel plates to resist wear from continuous blasting. Inside, the tumbling belt and parts receive the blasting stream. - Tumble Belt / Rubber Belt
A durable endless belt that tumbles the parts continuously during operation. The belt speed and tumbling angle can be adjusted depending on part size and cleaning requirements. - Blast Wheel Assembly
The most critical part of the machine. It accelerates the steel shots using centrifugal force and directs them through a blasting control cage to cover the required cleaning area. - Abrasive Circulation System
Includes a screw conveyor, elevator, and separator. This system recovers, cleans, and recycles the abrasive, maintaining consistent blasting performance and reducing shot consumption. - Dust Collector
Removes airborne dust and fine contaminants generated during blasting. It helps maintain a clean working environment and protects the machine’s internal components. - Electrical Control System
Controls all operations — from belt movement to blast wheel timing. Modern machines often include PLC systems for automation, cycle time settings, and safety interlocks.
In the Workshop
From experience, this machine saves a lot of manual work and ensures consistent surface quality. For heavy castings, it’s better to use a steel belt type; for lighter or more delicate parts, the rubber belt version is safer and reduces part damage. Regular maintenance on the blast wheel, separator, and dust system keeps it running smoothly and extends its service life.
Conclusion
Tumble belt shot blasting machine works on a simple but highly effective principle — tumble, blast, and recycle. With proper setup and care, it delivers uniform cleaning results, reduces labor, and improves efficiency across foundry and metalworking operations.
