When steel plates enter your production line covered with mill scale, rust, oxide and surface contamination, the challenge is not simply removing them.

The real challenge is removing them fast, consistently and at production-line speed.

Manual grinding is slow.

Manual blasting is labor-intensive.

Batch shot blasting creates unnecessary loading and unloading.

For high-volume steel processing, a Continuous Pass Through Shot Blasting Machine offers a more practical approach:

Feed the steel plate continuously → blast it from multiple directions → recover the abrasive → separate dust and debris → discharge clean steel ready for coating.

That is the core reason pass-through shot blasting systems are widely used in steel fabrication, shipbuilding, structural steel, pressure vessel and heavy equipment production.

What Is a Continuous Pass Through Shot Blasting Machine?

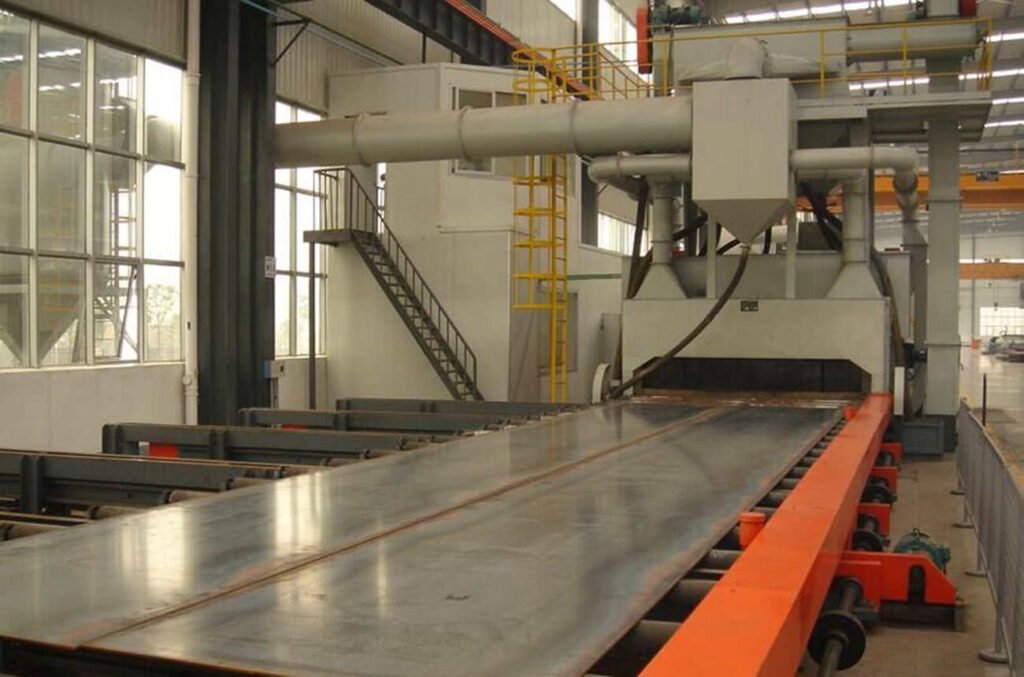

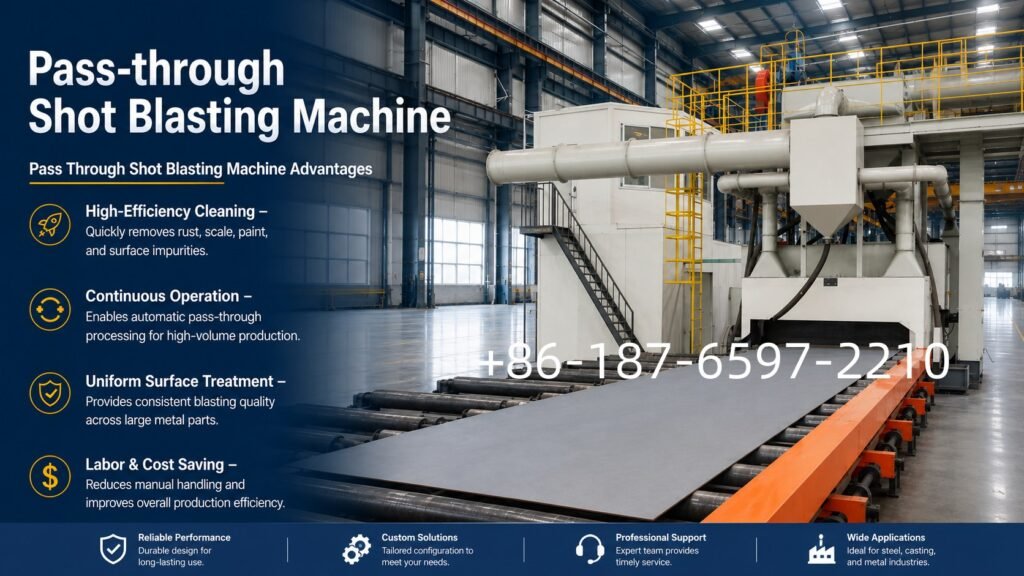

Continuous Pass Through Shot Blasting Machine is an automatic abrasive blasting system designed to continuously transport steel plates or other metal workpieces through an enclosed blasting chamber.

The steel plate enters from one side and exits from the opposite side after passing through several blasting zones.

Inside the chamber, high-speed blast wheels project steel shot or steel grit onto the workpiece.

The abrasive impact removes unwanted surface material, while the machine’s recovery and separation system continuously recycles usable abrasive.

The complete process can be summarized as:

Steel Plate Loading

↓

Continuous Conveying

↓

Multi-Directional Shot Blasting

↓

Abrasive Recovery

↓

Separation & Cleaning

↓

Dust Collection

↓

Clean Steel Plate Discharge

↓

Painting / Coating / Fabrication

This continuous process is the key difference between a pass-through system and conventional batch blasting equipment.

Why Is Continuous Shot Blasting Important for Steel Plate Production?

Steel plate processing often involves high production volumes.

A factory may need to process hundreds or thousands of tons of steel every month.

If surface preparation depends on manual labor or batch loading, production quickly becomes inefficient.

A continuous system eliminates much of this unnecessary handling.

Instead of:

Load → Blast → Stop → Unload → Reload

the production flow becomes:

Load → Blast → Discharge → Repeat

The result is a smoother production process with fewer handling interruptions.

How Does a Continuous Pass Through Shot Blasting Machine Work?

1. Steel Plate Feeding

The steel plate enters the machine through the inlet section.

Depending on the factory layout, the loading system can be:

• Manual
• Crane-assisted
• Roller conveyor
• Automatic feeding
• Integrated with a steel cutting line

The machine should be designed according to the customer’s maximum and minimum plate dimensions.

Important data includes:

• Plate width
• Plate thickness
• Plate length
• Plate weight
• Production volume

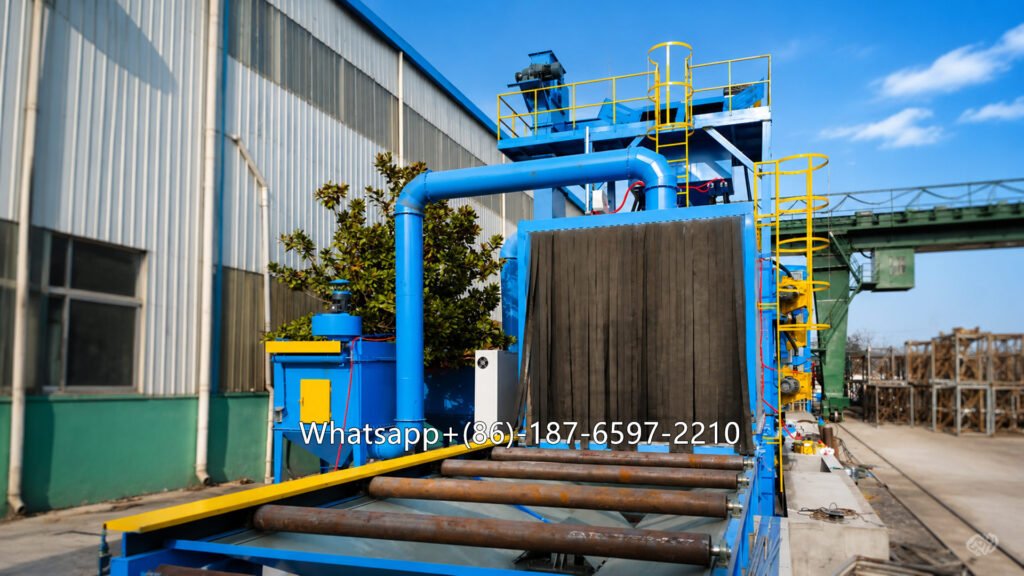

2. Continuous Conveyor Transport

The steel plate travels through the blasting chamber on a powered roller conveyor or other suitable transport system.

The conveyor speed determines the time the steel plate remains inside the blasting zone.

Slower Speed

Generally provides:

• Longer blasting exposure
• Higher cleaning intensity
• More abrasive impact per area

Higher Speed

Generally provides:

• Higher throughput
• Shorter processing time
• Lower exposure per pass

The ideal speed should be determined through process testing and production calculations.

Simply increasing conveyor speed can result in insufficient cleaning.

3. Multi-Directional Shot Blasting

As the steel plate enters the blasting chamber, high-speed blast wheels throw abrasive media onto the surface.

Blast wheels may be installed:

• Above the plate
• Below the plate
• On both sides
• At different angles

For steel plates requiring treatment on both faces, top and bottom blast wheel configurations can be used.

This provides much more efficient coverage than manually moving a blasting gun across the surface.

4. Rust and Mill Scale Removal

The abrasive particles strike the steel plate at high velocity.

Their kinetic energy breaks away:

• Rust
• Mill scale
• Oxide
• Dirt
• Surface contamination
• Welding residue
• Existing coating residue where appropriately configured

The cleaning effect depends on several variables.

The most important factors are:

Abrasive type + abrasive size + abrasive flow + blast wheel speed + conveyor speed + blast pattern

This is why a high-power machine is not automatically a high-performance machine.

The complete blasting system must be properly matched to the steel plate.

5. Abrasive Recovery

After blasting, the used abrasive and removed contaminants fall toward the bottom of the chamber.

A recovery system collects this material.

Typical components include:

• Screw conveyor
• Bucket elevator
• Abrasive separator
• Storage hopper

Reusable abrasive is continuously returned to the blasting system.

This creates a closed-loop abrasive circulation process.

6. Abrasive Separation

The recovered material contains both reusable abrasive and unwanted debris.

The separator removes:

• Broken abrasive
• Dust
• Rust
• Mill scale
• Paint particles
• Sand
• Fine contaminants

Clean abrasive is returned to the blast wheels.

This separation process is critical to maintaining consistent blasting performance and controlling abrasive consumption.

7. Dust Collection

Steel plate shot blasting generates dust from removed mill scale, rust and fractured abrasive.

A dedicated dust collector extracts airborne particles from the chamber.

A typical system may include:

• Exhaust fan
• Ducting
• Pulse-jet bag filter
• Cartridge filter
• Automatic filter cleaning
• Dust discharge system

Proper dust collection improves workshop cleanliness and helps maintain stable blasting conditions.

8. Clean Steel Plate Discharge

After passing through the blasting chamber, the steel plate exits the machine.

The cleaned plate can then move directly into:

• Painting
• Powder coating
• Primer application
• Welding
• Cutting
• Fabrication
• Inspection
• Assembly

This makes the system particularly valuable when integrated into an automated steel processing line.

What Does the Steel Plate Look Like After Shot Blasting?

A properly controlled abrasive blasting process can produce a much cleaner and more uniform steel surface.

The original surface may contain:

Rust + Mill Scale + Oxide + Dirt

After blasting:

Clean Steel Surface + Controlled Surface Profile

For coating applications, the surface preparation grade should be specified according to the project and coating system.

ISO 8501-1 provides internationally recognized preparation grades for steel surfaces, including blast-cleaned surfaces such as Sa 1, Sa 2, Sa 2½ and Sa 3.

Surface profile is a separate consideration. ISO 8503 provides methods for assessing the profile produced by abrasive blast cleaning.

Typical Technical Parameters

The following specifications are representative engineering ranges rather than universal machine specifications.

Important Engineering Note

Production capacity cannot be determined from plate width alone.

A proper calculation should consider:

• Plate dimensions
• Plate thickness
• Plate weight
• Surface condition
• Required cleanliness
• Conveyor speed
• Blast wheel configuration
• Abrasive flow
• Effective operating hours

Main Components of a Continuous Pass Through Shot Blasting Machine

Key Benefits for Steel Plate Manufacturers

1. Fast Surface Preparation

The continuous design allows steel plates to be processed without repeated batch handling.

This can significantly reduce surface preparation time in high-volume operations.

2. Consistent Cleaning Quality

Automatic control provides consistent:

• Conveyor speed
• Abrasive flow
• Blast wheel operation
• Exposure time

This reduces variation between operators and batches.

3. High Production Capacity

The system is designed for continuous material flow.

Production can be optimized through:

• Multiple blast wheels
• Controlled conveyor speed
• Automatic feeding
• Optimized workpiece spacing

4. Reduced Manual Labor

Instead of relying on workers to manually move blasting equipment across steel plates, the machine performs the blasting automatically.

Operators mainly monitor:

• Machine operation
• Abrasive level
• Dust collector status
• Conveyor operation
• Finished surface quality

5. Lower Abrasive Consumption

The abrasive circulation system recovers reusable steel shot or grit.

This helps reduce:

• New abrasive consumption
• Waste
• Operating costs

6. Better Preparation for Painting

Surface preparation has a direct impact on coating performance.

Removing contaminants and producing a suitable surface profile can improve the conditions for subsequent protective coating.

For many industrial coating systems, surface cleanliness and surface profile are specified separately and should both be controlled.

7. Easy Production-Line Integration

The machine can be connected to:

• Steel plate cutting machines
• Automatic conveyors
• Painting lines
• Drying chambers
• Shot peening equipment
• Inspection systems

This supports a more automated production workflow.

Continuous Pass Through vs Batch Shot Blasting

The Purchasing Rule

Large + Heavy + Continuous = Pass Through

Small + Batch + Tumbling = Batch Shot Blasting

Choosing the wrong machine type can create unnecessary handling, low productivity and higher operating costs.

Applications of Continuous Pass Through Shot Blasting

Steel Fabrication

Used for:

• Steel plates
• H-beams
• I-beams
• Channels
• Angles
• Welded structures

Shipbuilding

Steel plates and structural components require efficient surface preparation before protective coating.

Bridge Construction

Structural steel components can be continuously cleaned before painting and corrosion protection.

Pressure Vessels

Steel plates and fabricated pressure vessel components can be prepared before coating or further fabrication.

Heavy Machinery

Used for large fabricated components and steel structures requiring consistent surface preparation.

Pipe Manufacturing

Suitable configurations can be designed for pipes and profiles requiring continuous surface treatment.

How to Choose the Right Machine

1. Start With Steel Plate Dimensions

Provide:

• Maximum width
• Minimum width
• Maximum thickness
• Minimum thickness
• Maximum length
• Maximum weight

These values determine the machine opening, conveyor system and blasting configuration.

2. Determine Required Throughput

A practical calculation is:

Required Throughput = Daily Production ÷ Effective Operating Hours

For example:

If a plant processes 100 tons/day and operates for 20 effective hours:

100 ÷ 20 = 5 tons/hour

The selected machine should normally have enough reserve capacity to avoid running continuously at its absolute limit.

3. Define the Required Surface Cleanliness

Typical blast-cleaning grades include:

• Sa 1
• Sa 2
• Sa 2½
• Sa 3

For many coating applications, Sa 2½ is commonly specified.

However, the correct grade must be determined by:

• Coating manufacturer
• Project specification
• Corrosion protection requirements
• Customer standards

Do not choose the cleaning grade based solely on the shot blasting machine supplier’s recommendation.

4. Select the Abrasive

Common abrasive options include:

• Steel shot
• Steel grit
• Cut wire
• Stainless steel abrasive

Abrasive choice affects:

• Cleaning intensity
• Surface profile
• Abrasive consumption
• Wear rate
• Surface appearance

ISO 11124 provides specifications for metallic blast-cleaning abrasives.

5. Evaluate Blast Wheel Arrangement

A proper blast pattern is more important than simply adding more blast wheels.

For example:

Flat Steel Plate

Top and bottom wheels may be used.

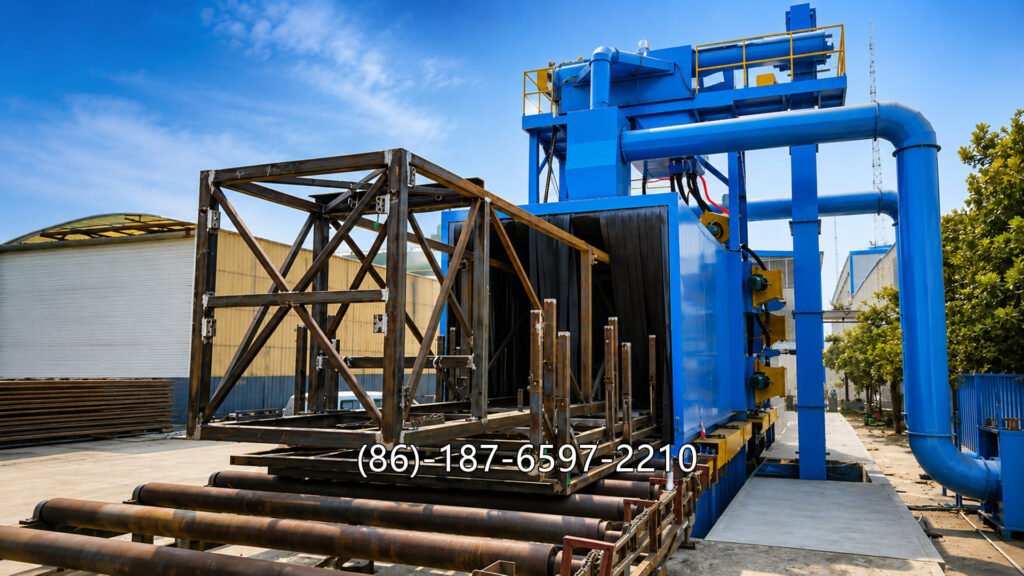

Structural Steel

Multiple angles may be necessary.

Heavy Fabricated Components

The wheel arrangement should be designed around actual geometry.

The correct question is not:

“How many blast wheels does the machine have?”

It is:

“Does the blast pattern cover the complete target surface at the required production speed?”

6. Check Wear Parts

Important wear components include:

• Blast wheel blades
• Chamber liners
• Conveyor rollers
• Screw conveyor components
• Separator wear parts

Ask the manufacturer about:

• Material specification
• Expected service life
• Replacement cost
• Spare parts availability

7. Evaluate Dust Collection

An undersized dust collector can cause:

• Excessive dust
• Poor visibility
• Filter overload
• Higher maintenance
• Unstable machine operation

The dust collection system should therefore be designed together with the blasting chamber rather than added as an afterthought.

Common Problems & Troubleshooting

Problem 1: Mill Scale Remains

Possible Causes

• Conveyor speed too high
• Abrasive flow insufficient
• Wrong abrasive size
• Poor blast pattern

Solution

Optimize conveyor speed and abrasive flow, then verify blast wheel coverage.

Problem 2: Uneven Surface Preparation

Possible Causes

• Incorrect blast wheel positioning
• Uneven abrasive distribution
• Plate overlap
• Conveyor speed fluctuation

Solution

Check the blast pattern and material spacing.

Problem 3: High Abrasive Consumption

Possible Causes

• Poor separator adjustment
• Dust leakage
• Excessive abrasive flow
• Incorrect abrasive specification

Solution

Inspect the abrasive circulation and separation system.

Problem 4: Excessive Machine Wear

Possible Causes

• Incorrect abrasive
• Worn liners
• Broken abrasive circulating in the system
• Poor separator performance

Solution

Check abrasive quality, separator adjustment and wear protection.

How to Reduce Cost Per Ton

For B2B buyers, the machine purchase price is only the beginning.

Calculate:

Cost per Ton = Energy + Abrasive + Wear Parts + Labor + Maintenance + Downtime

A machine that costs less initially may become more expensive if it has:

• High abrasive consumption
• Short blade life
• Frequent downtime
• Poor separator efficiency
• High maintenance costs

Therefore, compare suppliers based on total cost of ownership, not only factory price.

Maintenance Checklist

Daily

• Check blast wheel operation
• Check abrasive level
• Inspect rollers
• Check dust collector pressure
• Check abnormal noise and vibration

Weekly

• Inspect chamber liners
• Check separator performance
• Inspect conveyor alignment
• Check bearings
• Inspect screw conveyors

Monthly

• Inspect blast wheel blades
• Check motor and gearbox
• Inspect electrical connections
• Check dust filter condition
• Inspect abrasive circulation

A preventive maintenance program protects production capacity and reduces unexpected shutdowns.

Why Choose a Factory-Direct Manufacturer?

For a continuous steel plate shot blasting project, the supplier should provide more than a standard machine.

You need engineering support.

A professional manufacturer should be able to provide:

Customized Machine Design

Based on:

• Steel plate dimensions
• Production capacity
• Surface condition
• Required cleanliness
• Workshop layout

Complete Abrasive System

Including:

• Screw conveyors
• Bucket elevator
• Separator
• Abrasive hopper
• Blast wheels

Dust Collection

Configured according to actual dust generation and machine capacity.

Automation

PLC + HMI can control:

• Conveyor speed
• Blast wheel operation
• Abrasive circulation
• Dust collector
• Alarm systems
• Safety interlocks

Buying Checklist

Before contacting a manufacturer, prepare:

• Steel plate dimensions
• Plate thickness
• Maximum plate weight
• Material grade
• Daily production
• Required tons/hour
• Existing surface condition
• Required cleanliness grade
• Coating system
• Abrasive preference
• Workshop dimensions
• Local voltage
• Automation requirements

This information allows the manufacturer to provide a technically meaningful quotation instead of a generic price.

Frequently Asked Questions

What is a Continuous Pass Through Shot Blasting Machine?

It is an automatic blasting system that continuously moves steel plates or metal workpieces through an enclosed chamber while high-speed blast wheels project abrasive onto their surfaces.

What is it mainly used for?

It is mainly used for continuous surface preparation of steel plates, structural steel, pipes, profiles, fabricated components and other large metal workpieces.

Can it remove rust and mill scale from steel plates?

Yes. Properly configured abrasive blasting can remove rust, mill scale, oxide and other contaminants.

Can both sides of a steel plate be blasted?

Yes. Top and bottom blast wheel configurations can be installed when both surfaces require treatment.

Is it suitable for automatic production lines?

Yes. Pass-through shot blasting machines can be integrated with conveyors, automatic loading systems, painting lines, drying equipment and inspection systems.

What surface cleanliness can be achieved?

The achievable cleanliness depends on the steel condition, abrasive, blast wheel configuration, conveyor speed and process control. Project requirements may specify grades such as Sa 1, Sa 2, Sa 2½ or Sa 3 under ISO 8501-1.

What abrasive is suitable for steel plates?

Steel shot and steel grit are common choices. The correct grade and size depend on cleaning requirements, surface profile, coating system and machine configuration.

Final Verdict: Is Continuous Pass Through Shot Blasting Worth It?

If your factory processes steel plates at medium or high volume, the biggest cost may not be the blasting machine itself.

It may be the time spent handling steel plates before and after blasting.

A Continuous Pass Through Shot Blasting Machine addresses that problem by combining:

Continuous Conveying

High-Speed Abrasive Blasting

Automatic Abrasive Recycling

Dust Collection

Automated Control

The result is a faster and more consistent surface preparation process.

The biggest advantages are:

✔ Fast steel plate cleaning

✔ Continuous production

✔ Consistent surface preparation

✔ Reduced manual handling

✔ Automatic abrasive recycling

✔ Better coating preparation

✔ Easy production-line integration

The right machine, however, is not necessarily the biggest machine.

Choose the machine according to tons/hour, steel plate dimensions, required surface cleanliness, abrasive consumption and total cost per ton.

That is the approach that turns a shot blasting machine from a simple piece of equipment into a profitable production asset.

Get a Customized Steel Plate Shot Blasting Solution

Looking for a Continuous Pass Through Shot Blasting Machine Manufacturer?

Send us your:

1. Steel plate width
2. Plate thickness
3. Plate length
4. Maximum weight
5. Daily production
6. Required tons/hour
7. Current surface condition
8. Required cleanliness grade
9. Workshop dimensions
10. Automation requirements

Our engineers can recommend:

• Blast wheel configuration
• Machine dimensions
• Roller conveyor specifications
• Abrasive circulation system
• Dust collector
• PLC control system
• Loading/unloading solution
• Complete production-line layout

Request a Factory-Direct Quote

Get a customized technical proposal, machine configuration, process flow, plant layout and competitive quotation for your Continuous Pass Through Shot Blasting Machine.

Send your steel plate specifications today and let the engineering team calculate the right solution for your production line.
