Reduce Labor Costs, Increase Sand Recovery, and Improve Foundry Productivity.
Are You Throwing Away Valuable Sand and Production Time?
Many foundries focus on:
- Melting efficiency
- Molding automation
- Core production
- Casting quality
But one important process often becomes a hidden bottleneck:
Casting Shakeout.
In many foundries, outdated shakeout equipment causes:
❌ Low sand recovery rates
❌ Excessive manual labor
❌ High maintenance costs
❌ Production bottlenecks
❌ Increased casting damage
❌ Higher operating expenses
After casting solidification, every minute spent removing sand inefficiently reduces overall plant productivity.
This is why modern foundries increasingly adopt a Cost-Saving Foundry Vibration Shakeout Machine as the first step of an efficient sand reclamation system.

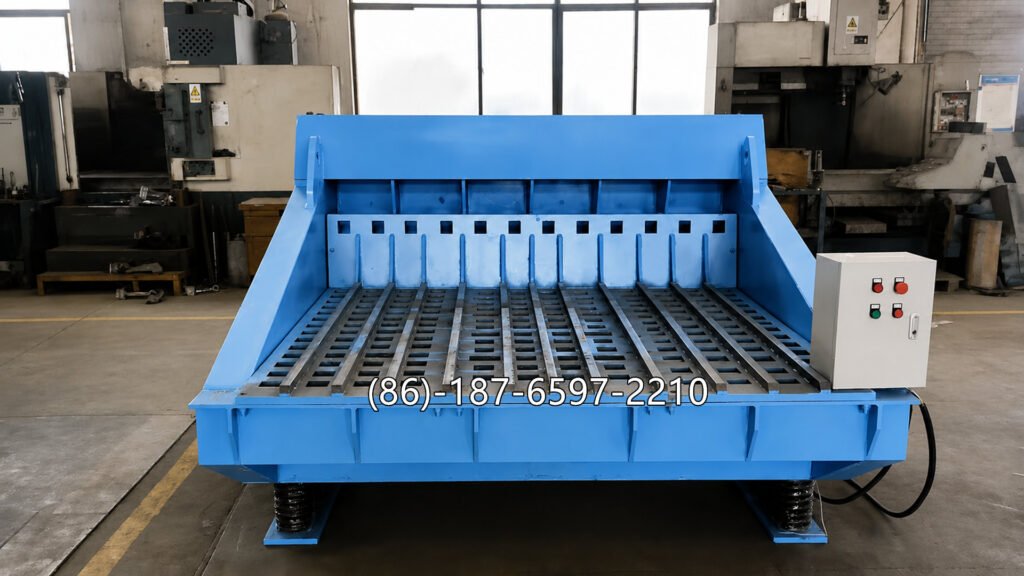

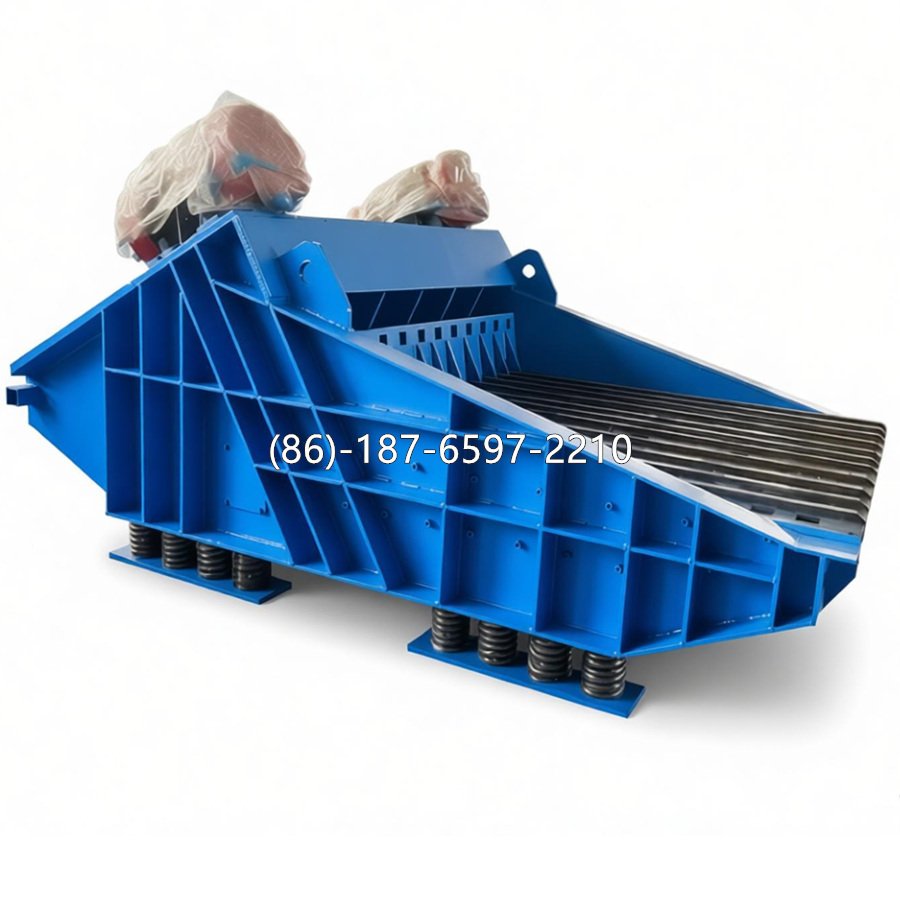

What Is a Foundry Vibration Shakeout Machine?
Vibration Shakeout Machine is designed to separate castings from molding sand through controlled vibration and mechanical excitation.
The machine performs two critical functions simultaneously:
Casting Separation
Removing molding sand from castings quickly and efficiently.
Sand Reclamation Preparation
Breaking sand lumps and delivering reusable sand to downstream reclamation equipment.
The result is faster processing and significantly higher sand recovery efficiency.
Why Shakeout Efficiency Directly Affects Foundry Profitability
Many foundries underestimate the impact of shakeout performance.
However, inefficient shakeout operations can lead to:
Production Problems
- Reduced throughput
- Labor-intensive operations
- Equipment congestion
- Delayed sand reclamation
Quality Problems
- Casting damage
- Excessive impact handling
- Sand contamination
Cost Problems
- Higher labor expenses
- Increased fresh sand consumption
- Greater equipment wear
A properly designed vibration shakeout machine solves all three challenges.
How a Vibration Shakeout Machine Works
Step 1: Hot Castings Enter the Machine
Fresh castings with attached molding sand are loaded onto the shakeout deck.
Typical materials include:
- Gray iron castings
- Ductile iron castings
- Steel castings
- Non-ferrous castings
Step 2: High-Frequency Vibration

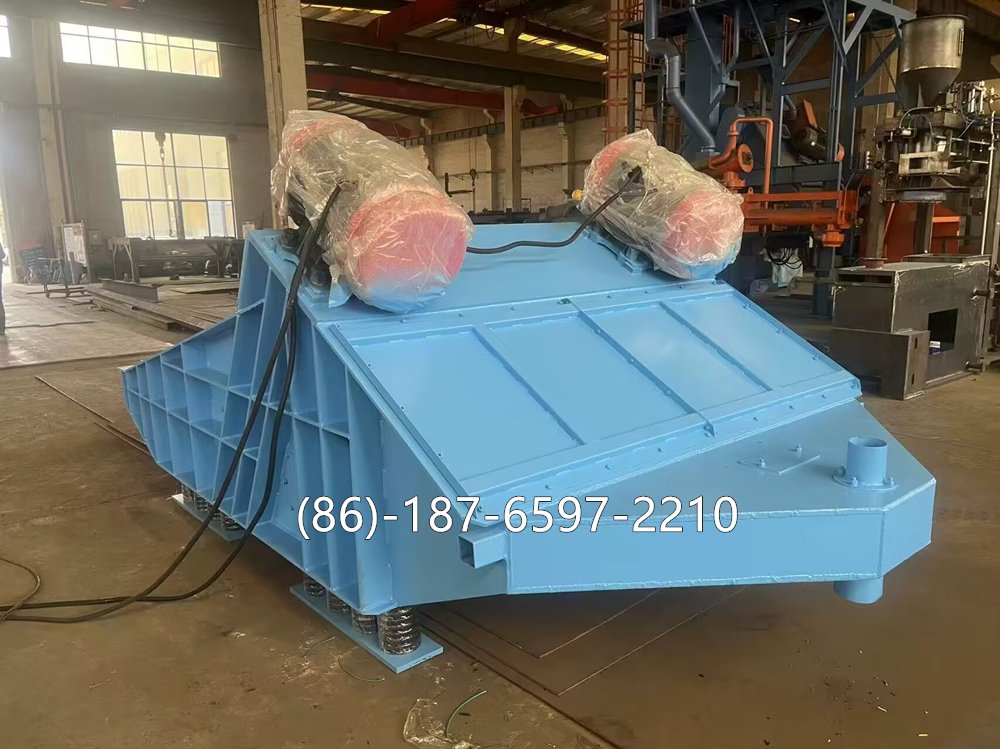

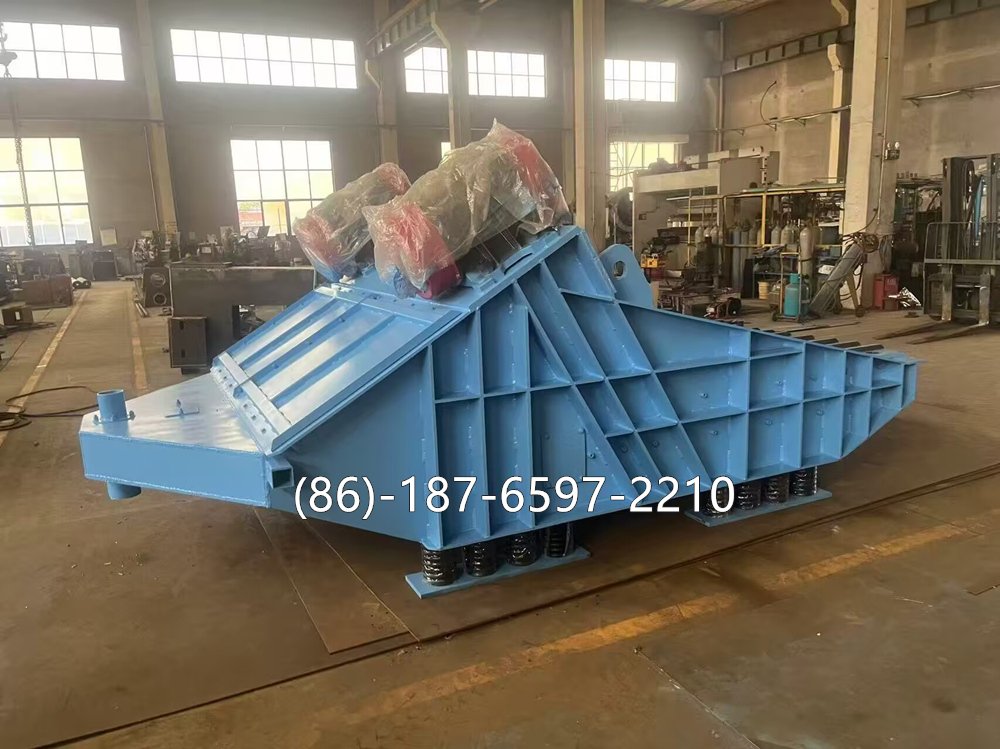

Dual vibration motors generate controlled excitation force.
The vibration rapidly breaks the bond between:
- Castings
- Sand
- Sand lumps
without damaging the casting.
Step 3: Sand Separation

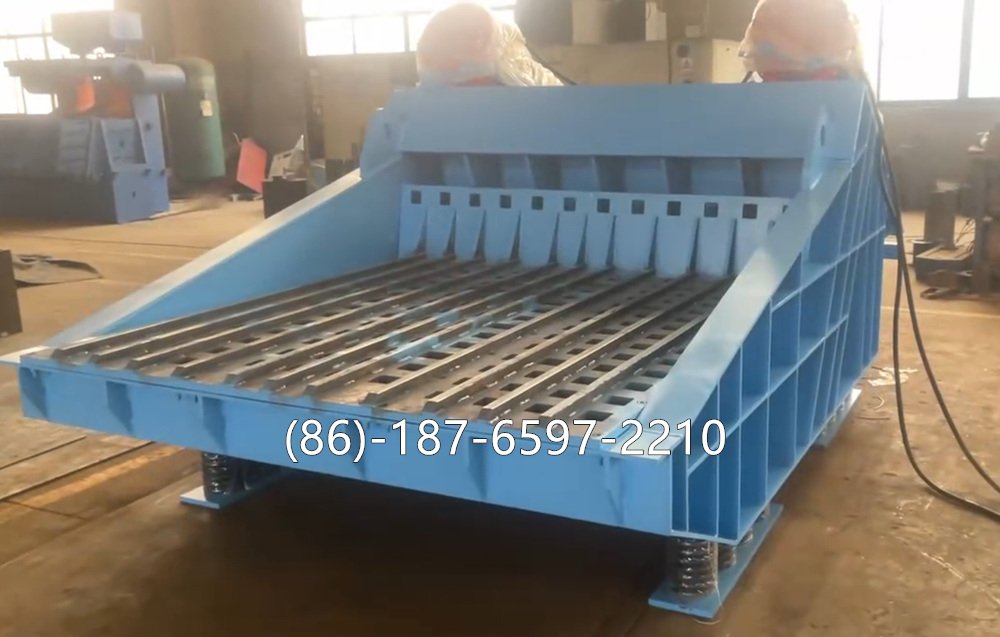

The molding sand falls through the screen deck.
Benefits include:
- Fast separation
- Reduced manual handling
- Continuous operation
Step 4: Sand Lump Breakdown
The vibration process naturally breaks large sand lumps into smaller particles.
This improves the efficiency of downstream reclamation systems.
Step 5: Sand Transfer
Recovered sand is discharged to:
- Sand coolers
- Reclamation systems
- Sand storage silos
- Sand preparation plants
ready for reuse.
Technical Parameters
| Item | Specification |
|---|---|
| Processing Capacity | 5–80 T/H |
| Vibration Frequency | 700–1500 RPM |
| Excitation Force | 20–200 kN |
| Deck Width | 1000–3000 mm |
| Deck Length | 2000–6000 mm |
| Motor Power | 2×3 kW – 2×22 kW |
| Applicable Sand | Green Sand / Resin Sand |
| Control System | PLC Optional |
| Operation Mode | Continuous |
Custom designs are available based on casting size and production requirements.
Key Advantages of a Foundry Vibration Shakeout Machine
1. High Sand Recovery Rate
Efficient separation allows more reusable sand to enter the reclamation system.
Benefits include:
✅ Reduced fresh sand purchases
✅ Lower disposal costs
✅ Improved resource utilization
Many foundries achieve:
90–98% recoverable sand separation.
2. Significant Labor Savings
Traditional shakeout methods require intensive manual work.
A vibration shakeout machine enables:
- Automated operation
- Reduced manpower requirements
- Improved workplace safety
3. Faster Production Throughput
Continuous operation eliminates production bottlenecks.
Benefits include:
- Higher casting output
- Faster cycle times
- Improved line efficiency
4. Reduced Casting Damage
Controlled vibration removes sand without excessive impact.
This helps protect:
- Thin-wall castings
- Precision castings
- Complex geometries
5. Improved Reclamation Efficiency
Well-separated sand improves the performance of:
- Sand coolers
- Hexagonal screens
- Sand mixers
- Reclamation systems
creating a more efficient sand recovery process.
Typical Applications
The Vibration Shakeout Machine is widely used in:
Green Sand Foundries
For return sand recovery and casting separation.
Resin Sand Foundries
Preparing sand for reclamation systems.
Ductile Iron Foundries
Supporting high-volume casting production.
Steel Foundries
Handling large and heavy castings.
Automotive Casting Plants
Improving automation and productivity.
Vibration Shakeout Machine vs Manual Shakeout
| Feature | Vibration Shakeout Machine | Manual Shakeout |
|---|---|---|
| Labor Requirement | Low | High |
| Sand Recovery Rate | High | Medium |
| Production Capacity | High | Low |
| Casting Damage Risk | Low | High |
| Operating Cost | Lower | Higher |
| Automation Compatibility | Excellent | Poor |
For modern foundries, automated shakeout is no longer a luxury—it is a competitive necessity.
Common Problems Solved by a Vibration Shakeout Machine
Problem 1: Excessive Manual Labor
Solution:
Automated vibration separation reduces labor requirements dramatically.
Problem 2: Poor Sand Recovery
Solution:
Efficient sand separation increases reclaimable sand volume.
Problem 3: Production Bottlenecks
Solution:
Continuous operation supports high-volume casting production.
Problem 4: High Operating Costs
Solution:
Reduced labor and improved sand reuse lower overall production expenses.
Why Foundries Choose Our Vibration Shakeout Machine
Heavy-Duty Structural Design
Built for continuous industrial operation.
High-Efficiency Vibration System
Optimized excitation force ensures rapid separation.
Wear-Resistant Components
Critical wear areas use high-strength materials for longer service life.
Low Maintenance Requirements
Simple structure minimizes downtime and maintenance costs.
Customized Engineering Solutions
Every foundry has different:
- Casting sizes
- Production capacities
- Sand systems
- Workshop layouts
Our engineers design customized solutions to maximize ROI.
Frequently Asked Questions
What types of sand can be processed?
Suitable for:
- Green sand
- Resin bonded sand
- Return sand
- Reclaimed sand
What casting sizes can be handled?
From small automotive castings to large industrial castings.
Custom models are available.
Can the machine integrate with existing reclamation systems?
Yes.
It is commonly connected to:
- Boiling cooling beds
- Fine hexagonal screens
- Sand reclaim systems
- Automatic molding lines
How much labor can be saved?
Many customers reduce shakeout labor requirements by:
50–80%
depending on production volume.
The First Step Toward Efficient Sand Reclamation
Many foundries focus on reclamation equipment but overlook the importance of efficient shakeout.
In reality, successful sand recovery starts at the shakeout stage.
A Cost-Saving Foundry Vibration Shakeout Machine helps foundries:
✅ Increase sand recovery rates
✅ Reduce labor costs
✅ Improve casting handling
✅ Support automation
✅ Enhance overall profitability
Request Your Customized Shakeout Solution Today
Looking for a reliable Foundry Vibration Shakeout Machine for High-Rate Sand Reclamation?
Our engineering team provides:
Free Technical Services
✔ Capacity analysis
✔ Shakeout system design
✔ Equipment selection
✔ Layout planning
✔ ROI calculation
Contact Us Today For:
✔ Detailed Quotation
✔ Customized Engineering Proposal
✔ Sand Reclamation Optimization Plan
✔ Production Line Layout Design
Send us your:
- Casting type
- Production capacity
- Sand type
- Existing plant layout
