Stop Letting Poor Sand Quality Ruin Your Castings!
Inconsistent green sand is the silent killer of foundry productivity. If your sand isn’t uniform, you’re facing gas holes, sand inclusion, and high scrap rates.
Our Bestech Roller Type Green Sand Mixer is engineered to solve that. By combining high-speed agitation with heavy-duty rolling pressure, it ensures every grain of sand is perfectly coated with clay and additives.
Introduction
In green sand casting production, sand quality determines everything.
- Mold strength
- Surface finish
- Casting defect rate
And behind sand quality, there is one key machine:
👉 Roller Type Green Sand Mixer Machine
This machine is widely used in foundries due to its simple structure, strong mixing force, and stable performance. It is especially suitable for small and medium-sized casting plants that require reliable and cost-effective sand preparation.
A properly operated roller sand mixer ensures uniform mixing of sand, bentonite, water, and additives, which directly improves casting consistency and reduces defects.

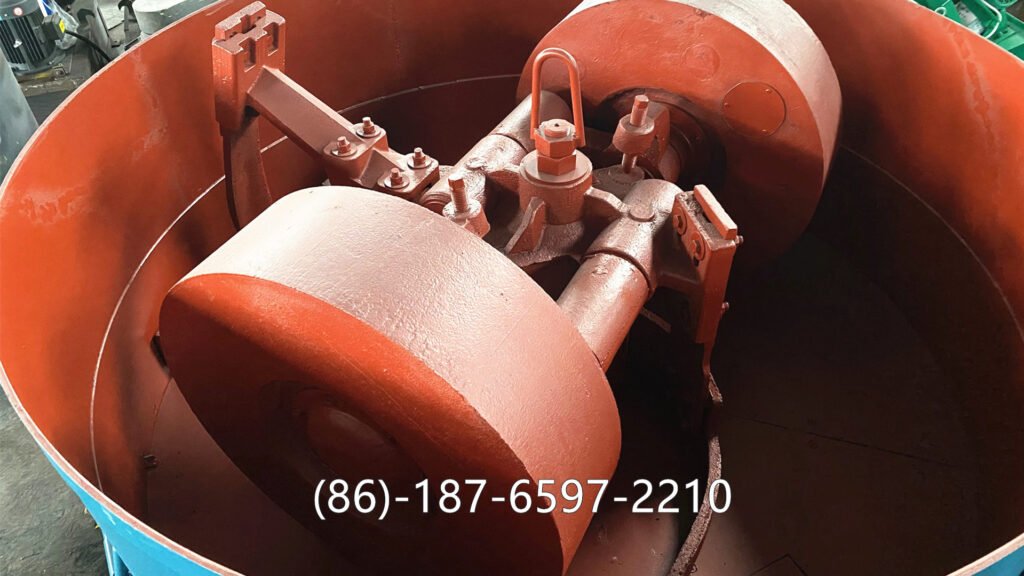

1 What Is a Roller Type Green Sand Mixer Machine
Roller Type Green Sand Mixer Machine is a mechanical mixing device used in green sand preparation systems.
It uses:
- heavy rollers (for compaction)
- plows or scrapers (for turning sand)
to achieve uniform mixing of molding materials.
The mixing process includes:
- crushing sand lumps
- distributing water evenly
- activating bentonite
- improving sand plasticity
Sand quality standards are generally guided by:
- American Foundry Society
- ISO 13503-2
2 Working Principle
The working principle is simple but effective.
Step-by-Step Process
- Raw sand enters the mixing pan
- Rollers apply pressure to crush and compact sand
- Plows continuously turn and mix materials
- Water and additives are added during mixing
- Sand reaches required uniformity and is discharged
Key Mechanism
- Rolling → compaction and crushing
- Turning → uniform distribution
- Shearing → binder activation
This combination ensures high mixing efficiency and uniform sand properties.
3 Key Advantages of Roller Type Sand Mixer
3.1 High Mixing Efficiency
The combined action of rollers and plows ensures fast mixing.
Typical mixing time:
👉 3–6 minutes per batch
3.2 Uniform Sand Quality
Uniform moisture and additive distribution improves:
- mold strength
- permeability
- surface finish
3.3 Strong Adaptability
Suitable for:
- green sand systems
- clay bonded sand
- recycled sand mixing
3.4 Simple Structure and Low Maintenance
Compared with high-end mixers, roller mixers are:
- easy to operate
- easy to maintain
- cost-effective
4 Typical Technical Parameters
Below are standard parameters for a medium-sized roller sand mixer.
| Parameter | Typical Value |
|---|---|
| Capacity | 2–10 tons/batch |
| Mixing Time | 3–6 minutes |
| Roller Speed | 25–35 rpm |
| Motor Power | 7.5–30 kW |
| Moisture Range | 3.0–4.5% |
| Sand Temperature | ≤45°C |
These parameters can be adjusted according to foundry requirements.
5 Application in Foundry Production
The roller type green sand mixer machine is widely used in:
- iron casting foundries
- steel casting plants
- automotive parts manufacturing
- machinery casting production
It is especially suitable for:
👉 batch production with stable sand requirements
6 Best Practices for Operation
From workshop experience, good operation is more important than machine itself.
Control Moisture
- Keep moisture at 3.0–4.5%
- Use controlled water addition
Maintain Mixing Time
- Too short → uneven mixing
- Too long → energy waste
Recommended:
👉 3–6 minutes
Monitor Sand Temperature
High temperature reduces binder performance.
Keep sand below:
👉 45°C
Avoid Overloading
Overloading leads to:
- motor stress
- poor mixing
- equipment wear
7 Maintenance Recommendations
Daily
- clean mixer interior
- check moisture system
- inspect abnormal noise
Weekly
- inspect rollers and plows
- check lubrication points
- clean discharge system
Monthly
- inspect gearbox
- check electrical system
- measure sand properties
Proper maintenance improves machine life by 30–50%.
8 Why Choose Roller Type Mixer Over Other Types
Compared with other mixers (such as rotor mixers), roller mixers provide:
- lower investment cost
- simpler maintenance
- reliable operation
For many small and medium foundries, this is still the most practical choice.
Conclusion
The Roller Type Green Sand Mixer Machine remains a reliable and economical solution for green sand preparation in foundry production.
With proper operation and maintenance, it can provide:
- high mixing efficiency
- uniform sand quality
- stable casting performance
In foundry production, stable sand means stable quality.
And stable quality means profit.
Need Help Choosing the Right Model?
If you are selecting a sand mixer, provide:
- required capacity (tons/hour)
- sand type (new / reclaimed)
- binder system
- production scale
We can recommend the most suitable configuration for your foundry.
